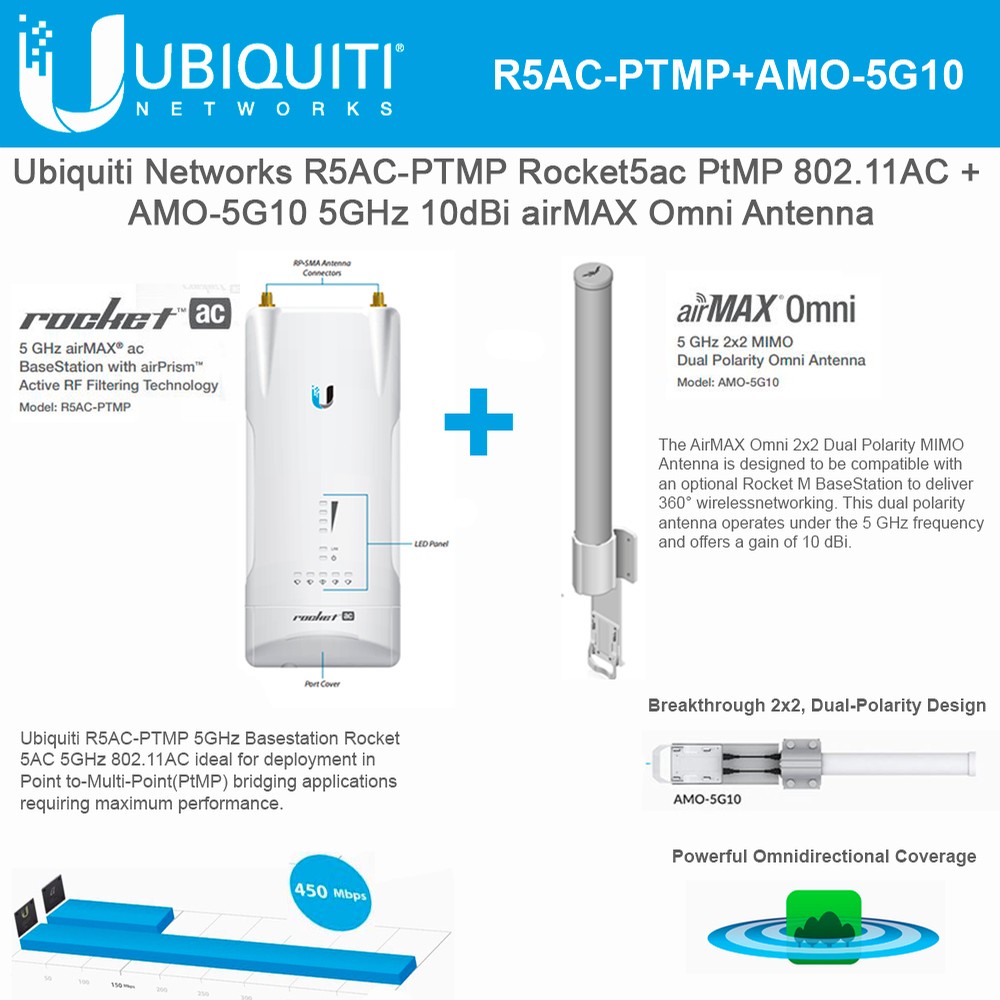

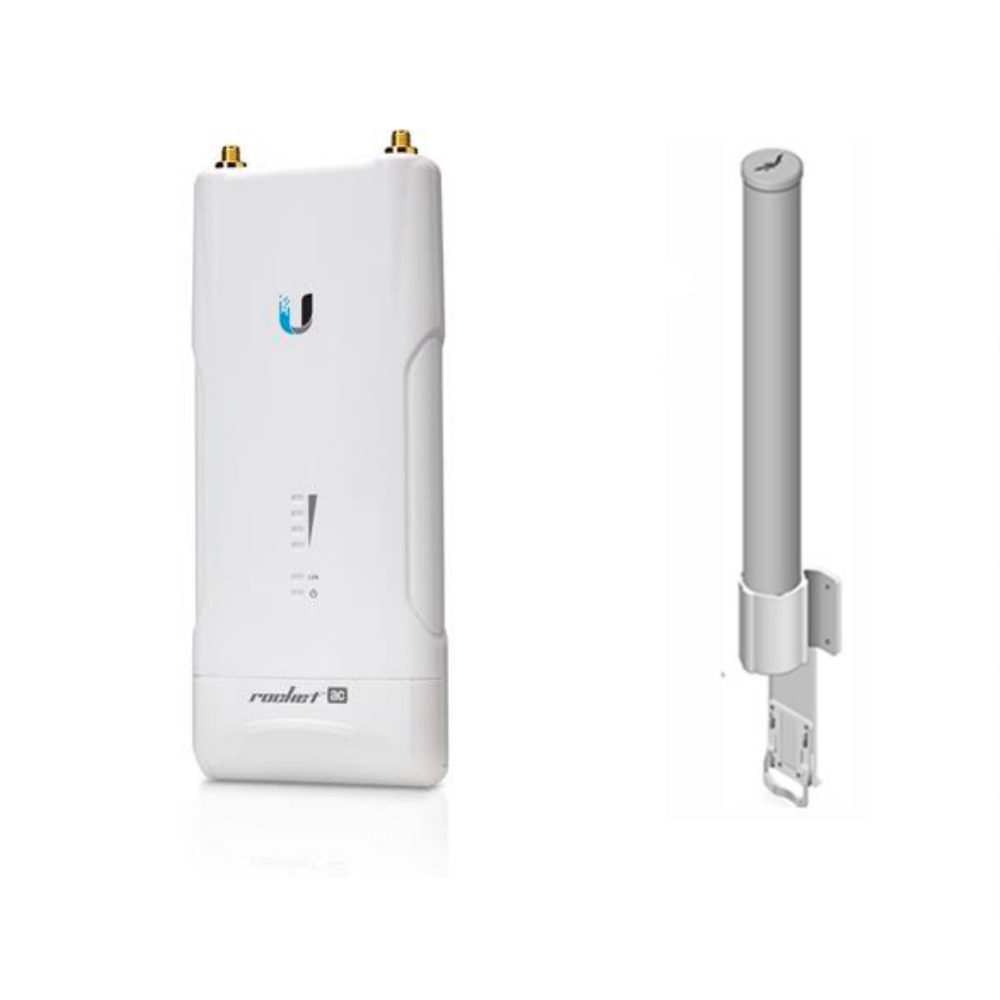

Ubiquiti R5AC-PTMP 802.11AC R5ac AirMax BaseStation + AMO-5G10 Omni Antenna 5GHz 10dBi

Model#: R5AC-PTMP+AMO-5G10

Sku: IT1814

MSRP: $399.00

Out of stock

  • R5AC-PTMP

 The R5AC-PTMP rocket ac airMAX ac BaseStation from Ubiquiti Networks uses airMAX ac technology to provide up to 450 Mbps throughput. With an outdoor UV stabilized plastic enclosure this BaseStation can be installed in some of the harshest conditions allowing for the data signal to reach greater distances. Featuring Ubiquiti’s airPrism technology, the Rocket5ac PtMP is designed for optimal PtMP performance, although it can operate in PtP mode.

R5AC-PTMP include airMAX ac technology and also feature airPrism technology to further enhance performance. Pair the Rocket ac with airMAX ac antennas for optimal performance.

  • 5 GHz Frequency Band

The 5 GHz radio band is free to use, worldwide, offers plentiful spectrum, and works well for long-distance links.

  • Gigabit Ethernet

The Rocket ac provides a Gigabit Ethernet connection to deliver high throughput.

  • Passive Power over Ethernet

Includes 24V Passive PoE functionality, which allows both power and data to be carried over a single Ethernet cable to the device.


                                                                                  Advanced Software Technology

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

  • AMO-5G10

The Ubiquiti Networks AirMAX Omni 2x2 Dual Polarity MIMO Antenna is designed to be compatible with an optional Rocket M BaseStation to deliver 360° wireless networking. This dual-polarity antenna operates under the 5 GHz frequency and offers a gain of 10 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots.

AirMax Omni is a Carrier Class 2x2 Dual Polarity MIMO omnidirectional antenna that was designed to seamlessly integrate with Rocket M radios (Rocket M sold separately). Rocket M combines the "brains" in one robust unit; just pair Rocket M with AirMax Omni to create powerful 360° omnidirectional basestation. This seamless integration gives network architects unparalleled flexibility and convenience.


                                                                                   Breakthrough 2x2, Dual-Polarity Design

                                               airMAX Omni Antennas are the first of their kind to feature a patented, dual-polarity omni design.

                                                                                Powerful Omnidirectional Coverage

                    airMAX Omni Antennas provide 360° coverage, 2x2 MIMO performance in Line-of-Sight (LOS) or Non-Line-of-Sight (NLOS) applications.




  • Passive PoE
  • 24V, 0.5A Gigabit PoE Adapter
  • airPrism Technology
  • Outdoor UV Stabilized Plastic Enclosure
  • 720 MHz Atheros MIPS 74Kc Processor
  • 128MB DDR2 SDRAM / 16MB NOR Flash Memory
  • 1 x 10/100/1000 Mbps Network Interface
  • 2 x RP-SMA Waterproof RF Connections
  • Integrated Power, Ethernet, Signal LEDs
  • Intelligent QoS
  • High Capacity & Scalability
  • High-Speed, Carrier-Class Links
  • airMAX ac Technology


  • 5 GHz Operating Frequency
  • 10 dBi Antenna Gain
  • 360° Coverageam
  • Frequency Range: 5 GHz
  • Weatherproof RF Jumpers Included
  • Universal Pole Mount
  • Compatible with Rocket M BaseStations
