IS-M5-US-2PK

Ubiquiti

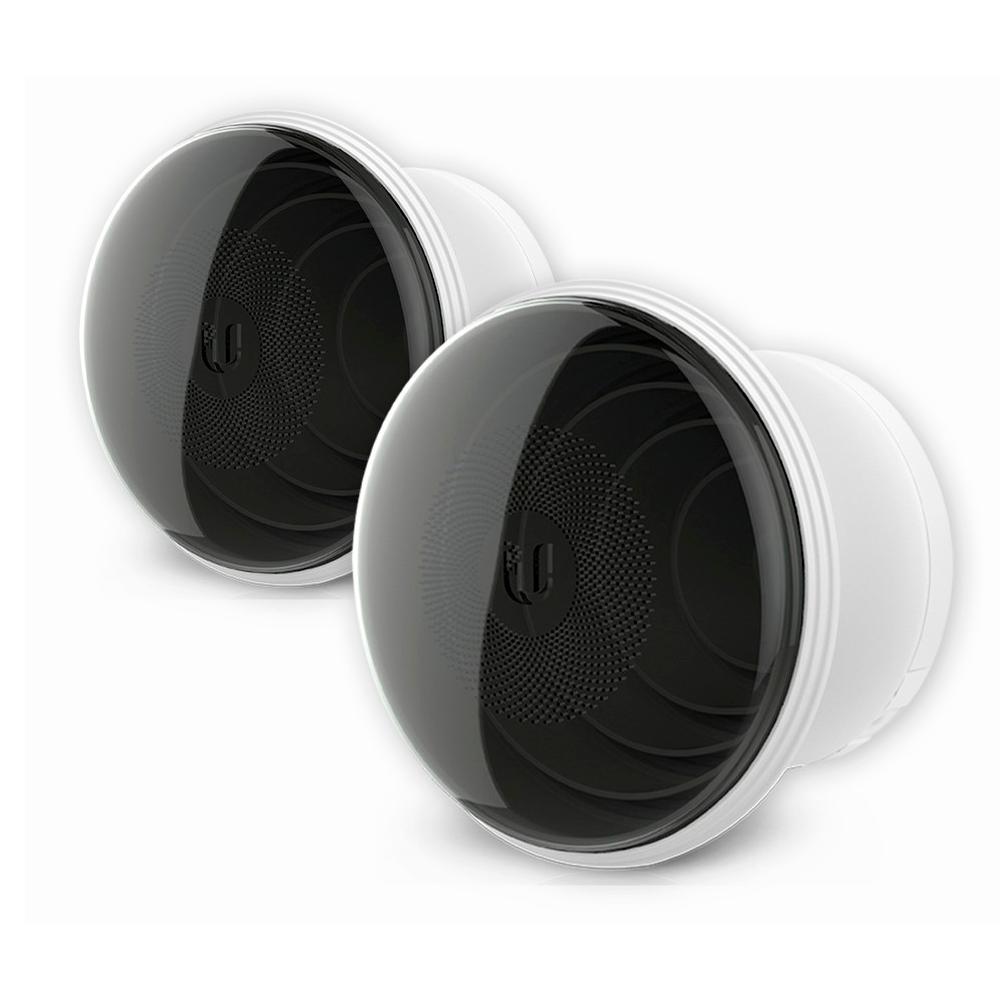

Ubiquiti IsoStation M5 2 Pack IS-M5 US 5GHz 14dBi Shielded airMAX CPE Radio with Isolation Antenna



Product Highlights
  • IsoStation M5 IS-M5 US 5GHz CPE 14dBi Shielded airMAX Radio with Isolation Antenna (2-Pack)
  • The IsoStation IsoStation M5 delivers throughput speeds of up to 100+ Mbps.
  • With a die-cast aluminum base and interchangeable antenna, the IsoStation is available in two models and brings increased performance to your network using technology that isolates beam communications between your devices.
  • Beam Performance Perfected The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain.
  • Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the defaul
  • Model#: IS-M5-US-2PK

    Sku: IT1809

    Out of stock

    Model: IS-M5-US

    IsoStation M5 IS-M5-US 5GHz 14dBi Shielded airMAX CPE Radio with Isolation Antenna

    The IsoStation M5 provides high isolation solutions in fixed beamwidth increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the IsoStation M5. This feature is especially important in an increasingly congested RF environment.

    • Modular Design

    The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.

    • Beam Performance Perfected

    The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

    •  Enhanced Co-Location

    Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

    • Dimension

    174 x 174 x 150 mm (6.85 x 6.85 x 5.91")

    131 x 131 x 65 mm (5.16 x 5.16 x 2.56")

    • Weight

    725.7 g (1.6 lb)

    408.2 g (0.9 lb)

    • Max. Power Consumption

    6.5W

    • Power Supply

    24V, 0.5A Gigabit PoE Adapter

    • Gain

    14 dBi

    • Beamwidth

    45° (Default Horn)

    • Networking Interface

    (1) 10/100/1000 Ethernet Port

    • Processor Specs

    MIPS 74 Kc

    • Memory

    64 MB DDR2

    • Wind Survivability

    200 km/h (125 mph)

    • Operating Frequency

    USA: U-NII-1: 5150 - 5250 MHz

    USA: U-NII-3: 5725 - 5850 MHz
