Model: UAP-AC-M-US
US Version

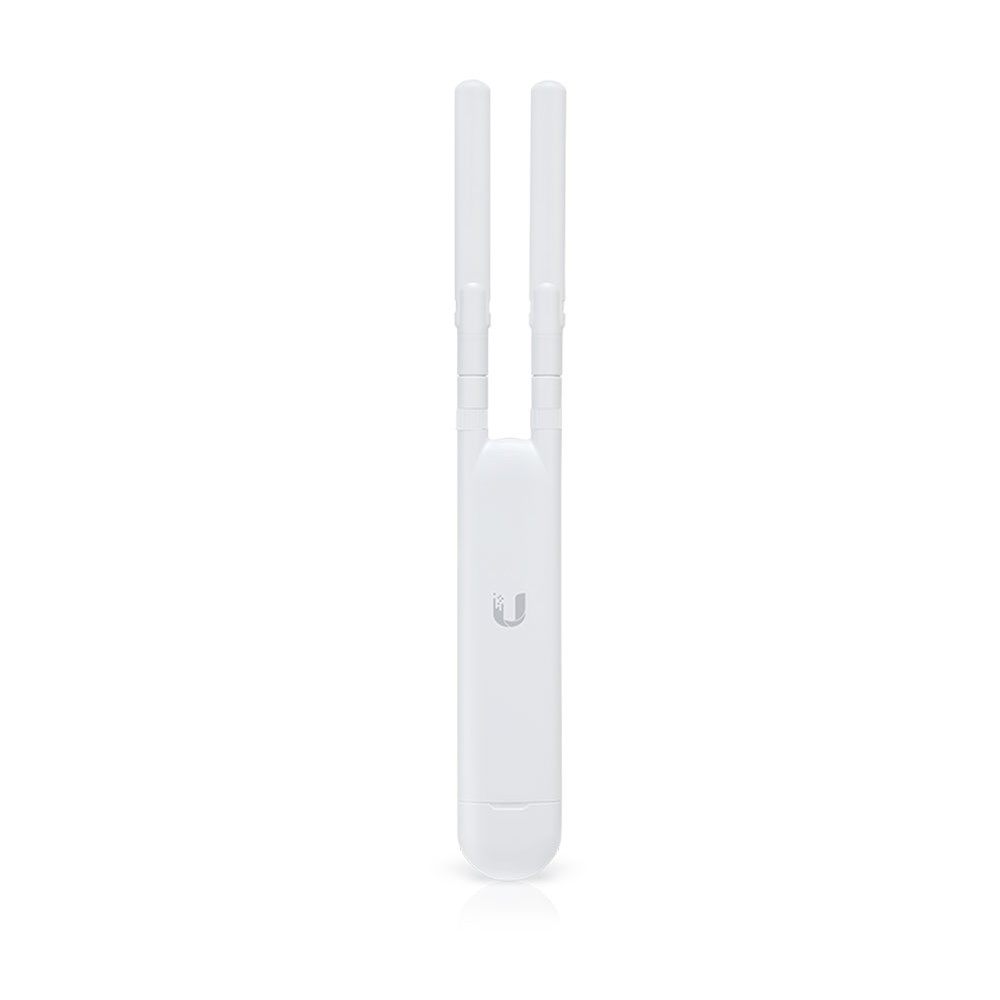

Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-M is a high-performance, outdoor, 2x2 MIMO, 802.11AC dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.
UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Maximum TX Power: 2.4 GHz: 20 dBm / 5 GHz: 20 dBm
• Antennas: (2) External Dual-Band Omni Antennas
2.4 GHz: 3 dBi
5 GHz: 4 dBi
• Wi-Fi Standards: 802.11 a/b/g/n/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications: CE, FCC, IC
Advanced Traffic Management
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 200+
Supported Data Rates (Mbps)
• 802.11ac: 6.5 to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
• 802.11n: 6.5 to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
