Ubiquiti Networks UFiber Nano UF-Nano Gigabit GPON Passive Optical Network Unit

Product Highlights
  • WAN: (1) GPON Port
  • LAN: (1) Gigabit Ethernet Port
  • Display: Digital LED
  • Power Method: 24V Passive PoE
  • Mounting: Wall-Mountable
  • Model#: UF-NANO

    Sku: IT1799

    MSRP: $79.99

    In Stock

    Your Price: $79.99

    Model: UF-NANO

    U Fiber, Nano, GPON CPE Optical Network Unit

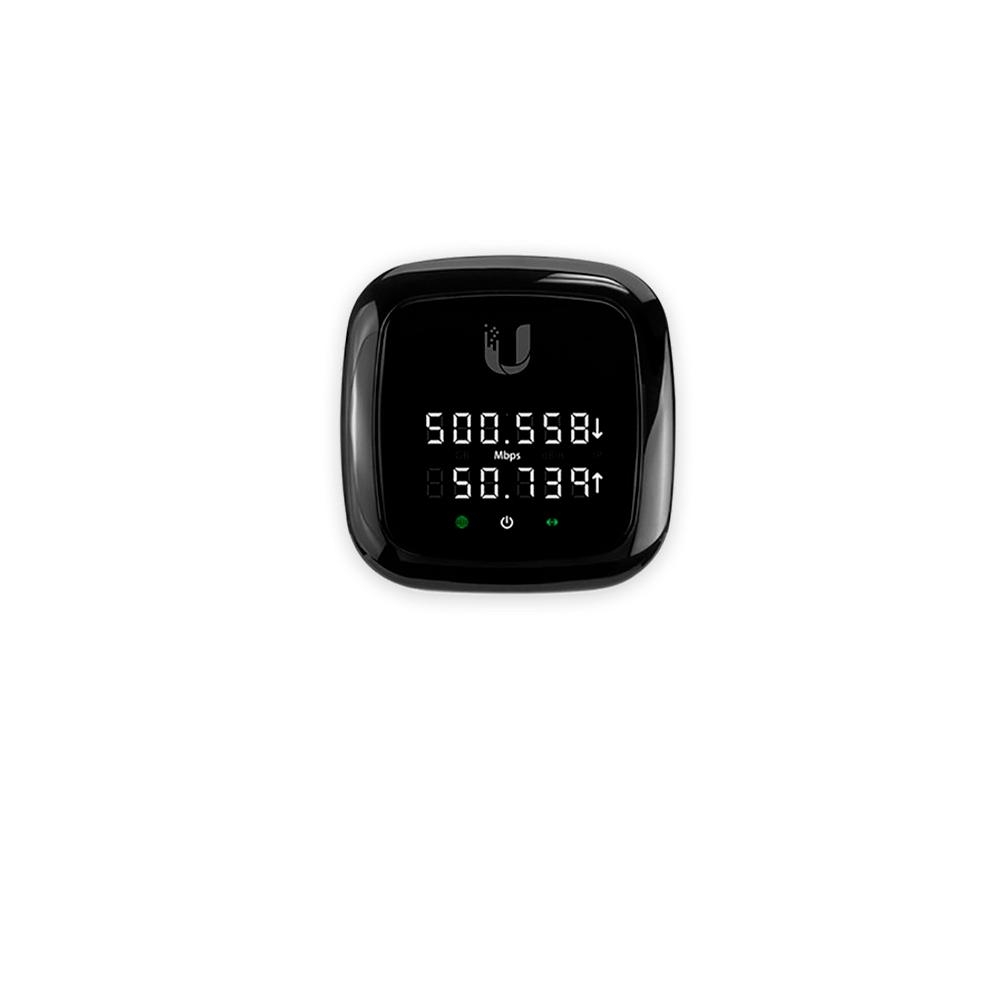

    The UFiber Nano G is a robust, high-performance GPON CPE that features an informational LED display and a sleek, sophisticated industrial design.

    -Status Display

    The easy-to-read display provides status information: IP address, signal strength, and current throughput.

    -Power over Ethernet

    The Nano G is powered by 24V passive PoE – a single cable to carry both power and data.

    -Designed for Integration

    Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT and third-party OLT devices.

    Specifications UF-NANO

    Dimensions 77 x 77 x 28 mm (3.03 x 3.03 x 1.1")
    Weight 110 g (3.88 oz)
    Networking Interface Speeds (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream (1) GbE LAN, 10/100/1000 Mbps
    Management Interface In-Band Ethernet/PON
    Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm RX: -8 dBm to -28 dBm
    Power Method Passive PoE (Pins +4, 5; -7, 8) Dying Gasp Support
    Power Supply PoE Adapter: 24V, 0.3A (Included)
    Max. Power Consumption 7W
    Supported Voltage Range 20V to 28V
    Processor Specs MIPS-32, 240 MHz
    Memory Information 128 MB DDR3
    Buttons (1) Display Information (1) Reset
    Operating Temperature -10 to 45° C (14 to 113° F)
    Operating Humidity 5 to 95% Noncondensing
    Certifications CE, FCC, IC
