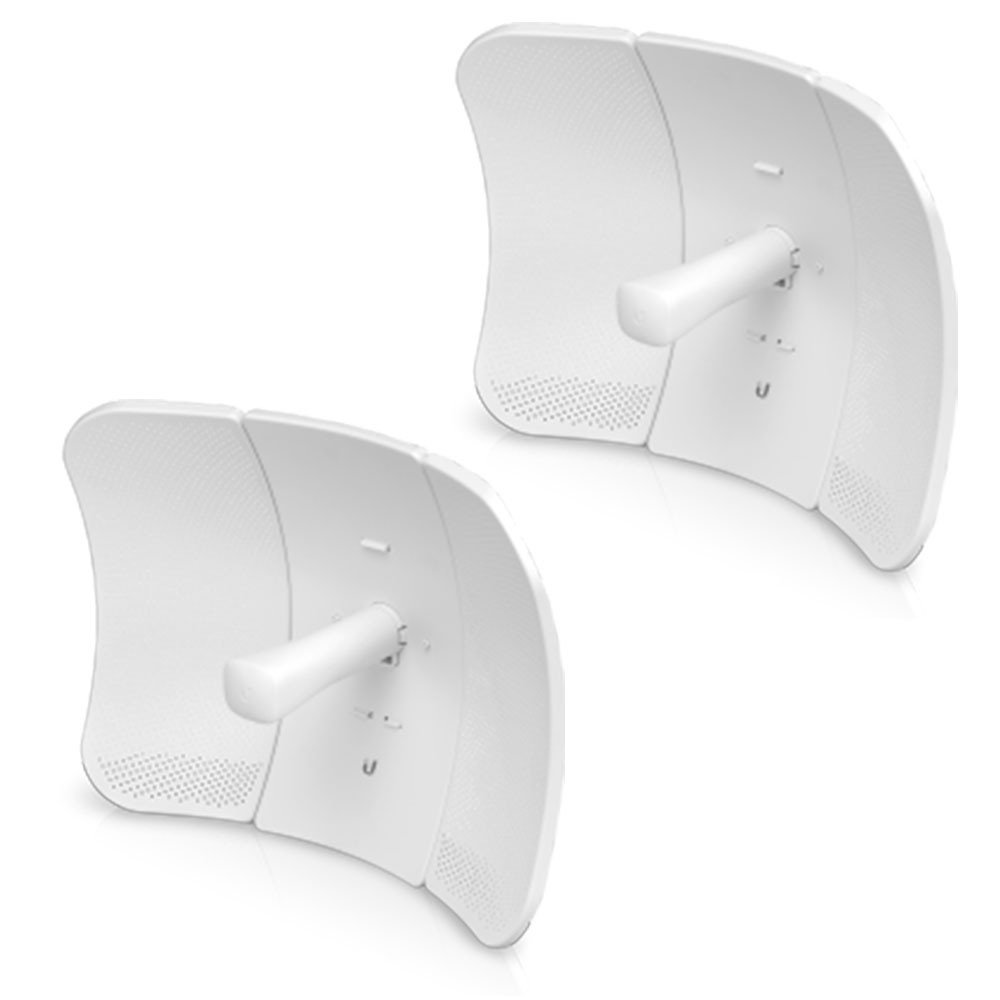

Ubiquiti 2x LiteBeam 5AC Gen2 LiteBeam AC Gen 2 LBE-5AC-Gen2 23dBi airMAX ac CPE 450+Mbps


Ubiquiti 2-pack LBE-5AC-Gen2 US version 2X2 MIMO airMAX ac CPE 450+Mbps LiteBeam 5AC AC Gen 2 5GHz 23dBi 450+Mbps CPE, for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Model#: LBE-5AC-Gen2-US-2PK

Sku: IT1794.5147.923371

MSRP: $185.98

Out of stock

Your Price: $185.98

                                                 LBE-5AC-Gen2 airMAX ac CPE with Dedicated Management Radio (2 Pack) **US Version**


The LiteBeam AC us  is an ultra-lightweight 2x2 MIMO airMAX ac CPE device with incredible range and disruptive pricing.

The LiteBeam 5AC US from Ubiquiti Networks features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, couples with the built-in bubble level, enables quick and easy alignment. Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the LiteBeam 5AC Gen 2, with dedicated Wi-Fi management.

  • High-Gain, Directional, 2x2 MIMO Antenna

The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

  • Powerful Wireless Features:

- Access Point PtMP airMAX Mixed Mode
- airMAX ac Protocol Support
- Long-Range Point-to-Point (PtP) Link Mode
- Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
- Automatic Channel Selection
- Transmit Power Control: Automatic/Manual
- Automatic Distance Selection (ACK Timing)
- Strongest WPA2 Security

  • Improved Noise Immunity

The LiteBeam 5AC Gen 2 US Version directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Integrated Design Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

Product Specifications:

• Dimensions: 358 x 271.95 x 272.5mm (14.09 x 10.71 x 10.73")

• Weight: Without Mount: 800g (1.76lbs) /  With Mount: 980g (2.16lbs)

• Power Supply: 24V, 0.3A Gigabit PoE Adapter (included)

• Max. Power Consumption: 7W

• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)

• Supported Voltage Range: 24V±10%

• Operating Frequency: 5150 - 5250 MHz

• Gain: 23dBi

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Processor Specs: MIPS 74Kc

• Memory: 64 MB DDR2

• LEDs: Power, Ethernet

• Channel Sizes:

    PtP Mode: 10/20/30/40/50/60/80MHz

    PtMP Mode: 10/20/30/40MHz

• Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC

• Mounting: Pole-Mounting Kit (Included)

• Wind Loading: 275N @ 200km/h (61.8lbf @ 125mph)

• Wind Survivability: 200km/h (125mph)

• ESD/EMP Protection: ±24kV Contact / Air

• Operating Temperature: -40 to 70°C (-40 to 158°F)

• Operating Humidity: 5 to 95% non-condensing

• Certifications: CE, FCC, IC

Product Includes:
• (1) Antenna Feed
• (1) Central Reflector Panel
• (2) Side Reflector Panels
• (1) Feed Receiver
• (1) Azimuth Mount
• (1) Elevation Mount
• (1) Metal Strap
• (1) Knob Kit
• (1) Gigabit PoE (24V, 0.3A) with Mounting Bracket
• (1) Power Cord
• (1) Quick Start Guide
