PBE-5AC-Gen2-US

Ubiquiti


Ubiquiti Networks PBE-5AC-GEN2-US 5GHz PowerBeam ac Gen2 25dBi US



Product Highlights
  • 5 GHz
  • 25 dBi
  • (1) 10/100/1000 Ethernet Port
  • Gen 2 WIFI Management
  • 24V, 0.5A Gigabit Passive PoE
  • Model#: PBE-5AC-Gen2-US

    Sku: IT1782



    MSRP: $125.99

    In Stock

    Your Price: $125.99






    ModelPBE-5AC-GeN2-US

    US Version

    Ubiquiti Networks 5GHz PowerBeam ac Gen2 25dbi

    High-Performance airMAX® ac Bridge

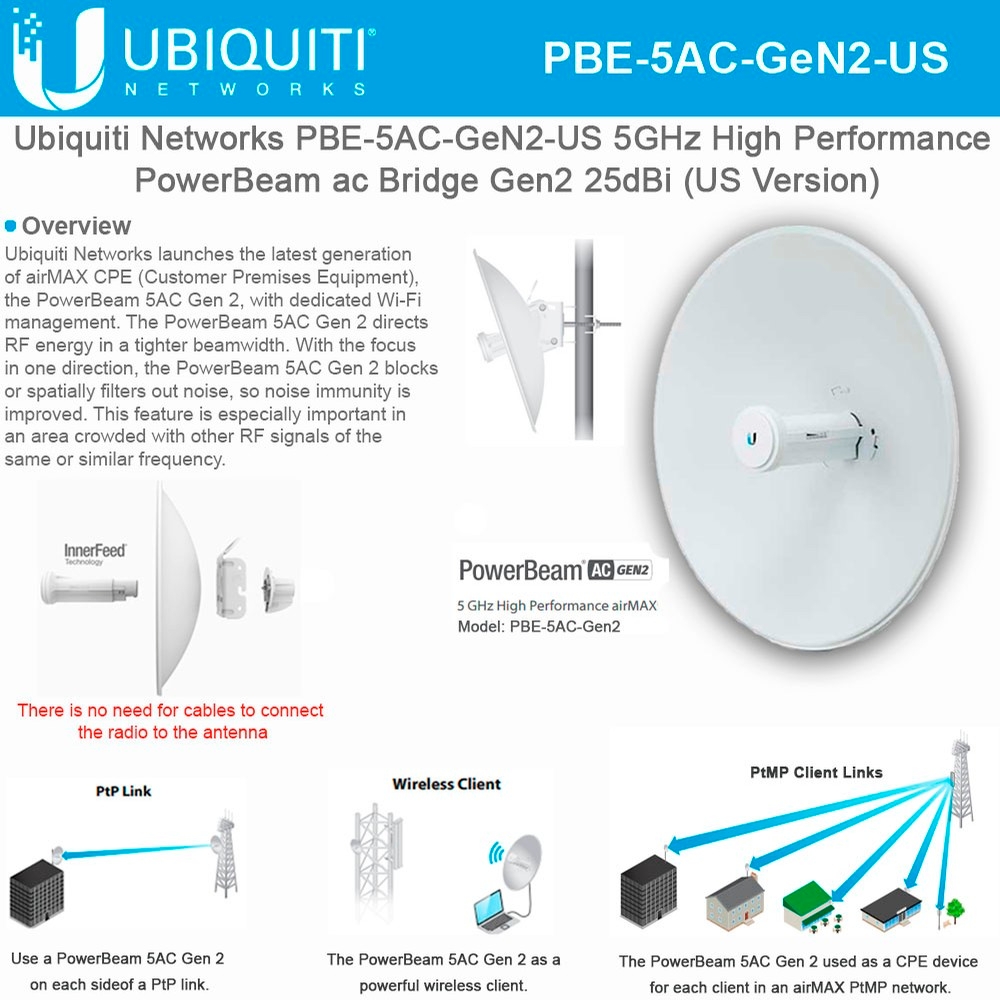

    Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.

    Management Wi-Fi Radio

    The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

    Integrated Radio Design

    Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

    Plug and Play Installation

    The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.

    Performance Breakthrough

    airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

    Superior Processing

    Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

    Incredible Antenna “Beam” Performance

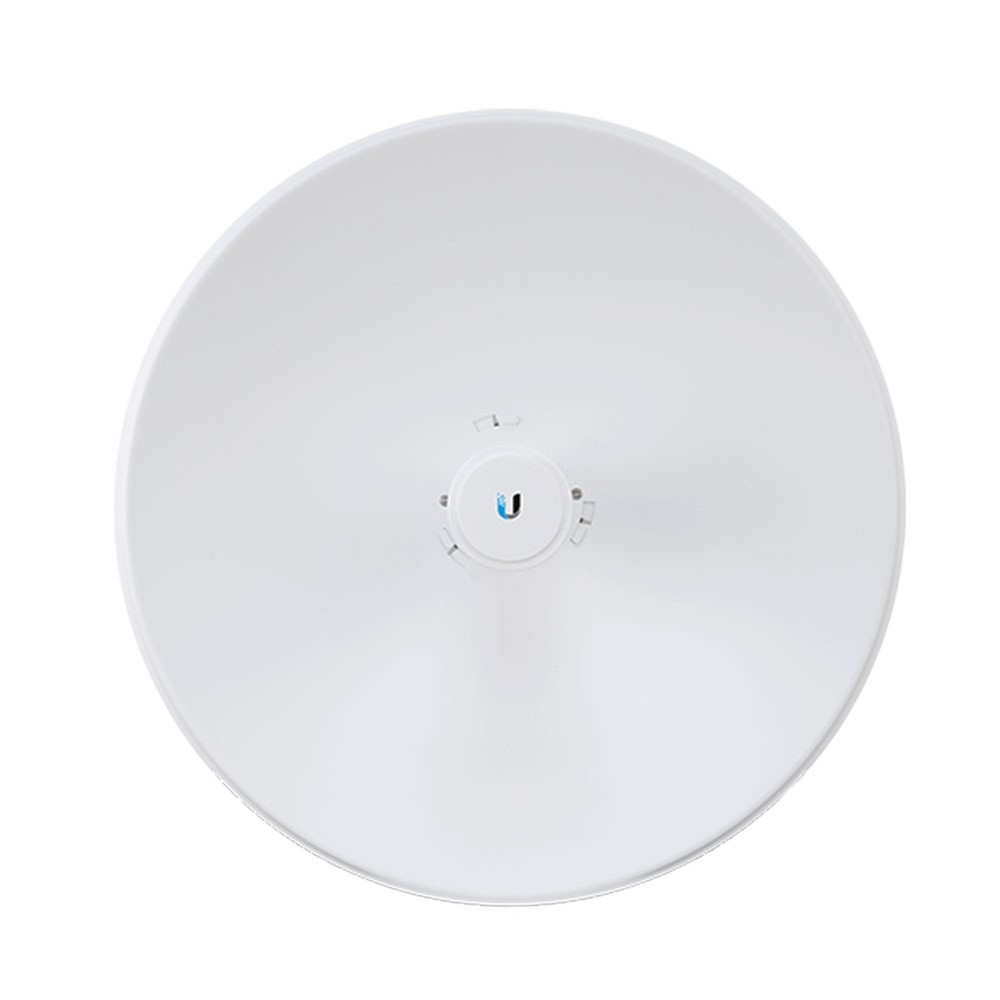

    The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

    Now with airOS®8

    airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

    Specifications PBE-5AC-Gen2

    Dimensions 420 x 420 x 230 mm (16.54 x 16.54 x 9.06")
    Weight 2.22 kg (4.89 lbs)
    Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
    Max. Power Consumption 8.5W
    Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Supported Voltage Range 20 to 26VDC
    Operating Frequency Worldwide 2412 - 2472 MHz 5150 - 5875 MHz
    USA: U-NII-1 5150 - 5250 MHz
    USA: U-NII-2A 5250 - 5350 MHz
    USA: U-NII-2C 5470 - 5725 MHz
    USA: U-NII-3 5725 - 5850 MHz
    Gain 25 dBi
    Networking Interface (1) 10/100/1000 Ethernet Port
    Processor Specs MIPS 74Kc
    Memory 64 MB
    LEDs Power, Ethernet, (4) Signal Strength
    Channel Sizes PtP Mode 10/20/30/40/50/60/80 MHz PtMP Mode 10/20/30/40 MHz
    Enclosure Characteristics Antenna Feed Outdoor UV Stabilized Plastic Dish Reflector Powder-Coated SPCC
    Mounting Pole-Mounting Kit (Included)
    Wind Loading 380 N @ 200 km/h (85.4 lbf @ 125 mph)
    Wind Survivability 200 km/h (125 mph)
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Operating Temperature -40 to 70° C (-40 to 158° F)
    Operating Humidity 5 to 95% Noncondensing
    RoHS Compliance Yes
    Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
    Vibration Test IEC 68-2-6
    Temperature Shock Test IEC 68-2-14
    UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
    Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
    Certifications CE, FCC, IC

    Datasheet

    PDF File Ubiquiti Networks PBE-5AC-GEN2-US 5GHz PowerBeam ac Gen2 25dBi US
