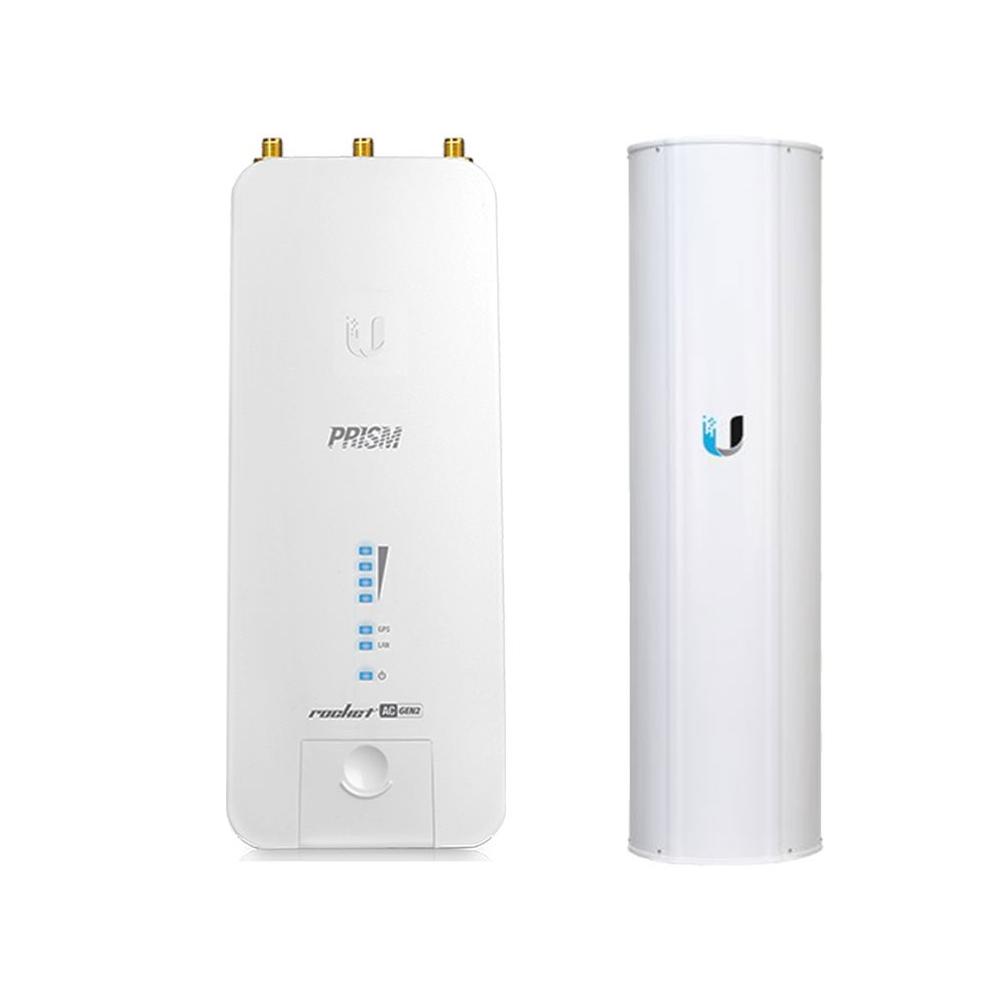

Ubiquiti Rocket Prism AC Gen2 RP-5AC-GEN2 5GHz BaseStation 802.11ac + Sector Antenna airPRISM AP-5AC-90-HD 3x30° High Density


Ubiquiti Rocket Prism AC Gen2 RP-5AC-GEN2 5GHz BaseStation 802.11ac + Sector Antenna airPRISM AP-5AC-90-HD 3x30° High Density

Product Highlights
  • Ubiquiti Rocket Prism AC Gen2 RP-5AC-GEN2-US 5GHz airPrism Radio BaseStation with Active RF Filtering Technology
  • Rocket Prism access points incorporate high-performance airMAX ac and airPrism technologies for maximum performance of wireless networks in high-density areas, in both 5 and 2.4 GHz.
  • Management Wi-Fi Radio: The Rocket Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
  • Ubiquiti airPrism Sector Antenna 5 GHz 3x30° High Density Sector Antenna
  • Highly resistant to noise interference, the airPrism antenna provides superior beam performance in high-density areas for high-capacity, multipoint networks.
  • Model#: RP-5AC-Gen2-BD15

    Sku: IT1774.5089.902788

    MSRP: $748.00

    Out of stock

    Your Price: $748.00

    RP-5AC-Gen2-US (1 Unit)

    The RocketPrism 5AC Gen 2 features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. The RP-5AC-Gen2 is an airMAX Rocket with airPrism, part of the wide selection of products from Ubiquiti Networks. This basestation operates on both 5GHz.

    The Ubiquiti Networks RP-5AC-Gen2 utilizes airPrism technology to provide breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments. Rocket Prism 5AC features EMI shielded metal housing, GPS, airPrism, circuitry, and the airView real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

    • GPS for Superior Co-Location Performance

    Precise GPS frame synchronization enable co-located Rocket Prism 5AC Gen 2 radios to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.

    • 5 GHz Frequency Band

    With plenty of available spectrum, this unlicensed band works well for long-distance links. The Rocket Prism 5AC Gen 2 features full-band 5 GHz coverage and maximizes output power for the US market, meeting strict OOBE requirements.

    • High Performance:

    Deploy the Rocket Prism 5AC Gen 2 for PtP or PtMP links in high RF noise environments to take full advantage of its design and capabilities

    • Gigabit Ethernet

    Delivers high throughput over its wired connection.


    AP-5AC-90-HD (1 Unit)

    Ubiquiti Networks introduces an innovative sector antenna for your Point-to-MultiPoint (PtMP) applications, the airPrism 5 GHz 3x30° HD Sector Antenna. The airPrism antenna features significant advances in noise isolation and beam performance to complement the Rocket 5ac Prism radios (not included) for co-location deployments.

    • Breakthrough Design

    Three Rocket5ac Prism radios mounted on a single airPrism antenna maximizes throughput in an efficient tower footprint, minimizing installation and tower costs.



    • Powerful Performance for High-Density Areas
    • Efficient Footprint for Reduced Tower Costs

    RP-5AC-Gen2 (1 Unit)

    • Interface (1) 10/100/1000 Ethernet Port
    • RF Connectors (2) RP-SMA (Waterproof ), (1) GPS* (Waterproof)
    • Processor Specs Atheros MIPS 74Kc
    • PtP Mode: 10/20/30/40/50/60/80 MHz
    • PtMP Mode: 10/20/30/40 MHz
    • Modes: Access Point, Station


    AP-5AC-90-HD (1 Unit)

    • 5GHz
    • 3x30° HD Sector Antenna
    • airPrism Sector Antenna
    • Works w/ Rocket5ac Prism
    • Each Rocket radio corresponds specific 30° beamwidth
    • Independently transmits and receives
