RP-5AC-Gen2-BD3

Ubiquiti

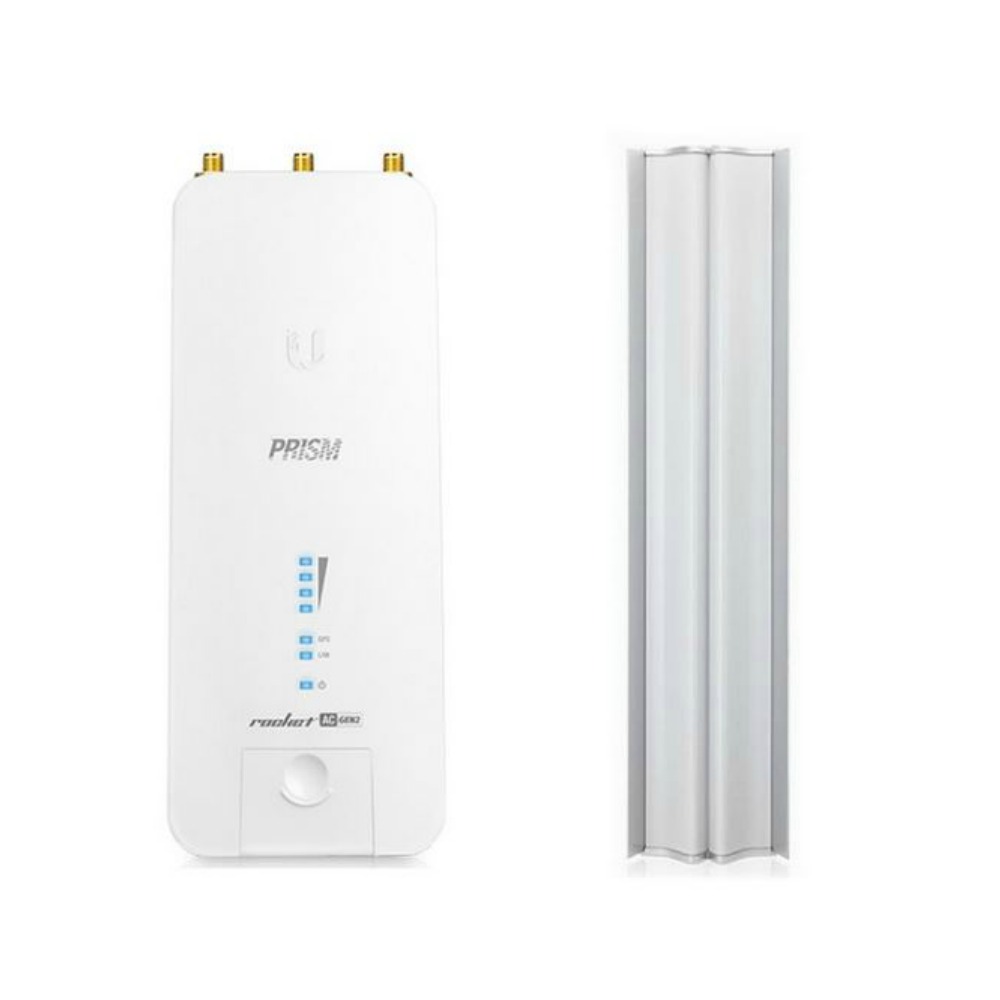

Ubiquiti airMAX Rocket 5AC Prism Gen2 RP-5AC-GEN2 AP 5GHz airMAX ac Radio BaseStation pair with AM-5AC21-60 5GHz airMAX ac 21dBi Sector Antenna


Model#: RP-5AC-Gen2-BD3

Sku: IT1756

Out of stock

RP-5AC-Gen2 (1 Unit)

The RocketPrism 5AC Gen 2 features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. The RP-5AC-Gen2 is an airMAX Rocket with airPrism, part of the wide selection of products from Ubiquiti Networks. This basestation operates on both 2.4 and 5GHz.

The Ubiquiti Networks RP-5AC-Gen2 utilizes airPrism technology to provide breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments. Rocket Prism 5AC features EMI shielded metal housing, GPS, airPrism, circuitry, and the airView real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

  • GPS for Superior Co-Location Performance

Precise GPS frame synchronization enable co-located Rocket Prism 5AC Gen 2 radios to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.

  • 5 GHz Frequency Band

With plenty of available spectrum, this unlicensed band works well for long-distance links. The Rocket Prism 5AC Gen 2 features full-band 5 GHz coverage and maximizes output power for the US market, meeting strict OOBE requirements.

  • High Performance:

Deploy the Rocket Prism 5AC Gen 2 for PtP or PtMP links in high RF noise environments to take full advantage of its design and capabilities

  • Gigabit Ethernet

Delivers high throughput over its wired connection.

+

AM-5AC21-60 (1 Unit)

The AM-5AC21-60 5 GHz airMAX ac Sector  2x2 MIMO BaseStation Sector Antenna from Ubiquiti Networks helps creating powerful point-to-point (PtP) backhaul links and point-to-multipoint (PtMP) airMAX links when paired with the RocketM5 / M5 ac BaseStation (available separately). However, it provides optimal performance with the RocketM5 ac BaseStation. The antenna has a built-in Rocket mount, so no tools are needed to install the base station.

The airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

  • Superior Noise Immunity

Featuring reduced sidelobes and backlobes, the airMAX ac Sector Antennas are engineered to reject noise interference in co-location deployments.

  • Breakthrough Design and Performance

The airMAX ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

  • Pairing the sector antenna with the RocketM5 / M5 ac BaseStation lets you utilize airMAX technology. This antenna is highly resistant to noise interference in co-location deployments. The deflector-designed antenna with reduced side lobes and back lobes reject interference from other transmitters in the area, potentially on the same tower. It provides excellent gain and beam performance for high-capacity, multi-point networks.

RP-5AC-Gen2 (1 Unit)

  • Interface (1) 10/100/1000 Ethernet Port
  • RF Connectors (2) RP-SMA (Waterproof ), (1) GPS* (Waterproof)
  • Processor Specs Atheros MIPS 74Kc
  • PtP Mode: 10/20/30/40/50/60/80 MHz
  • PtMP Mode: 10/20/30/40 MHz
  • Modes: Access Point, Station



+

AM-5AC21-60 (1 Unit)

  • 21 dBi Antenna Gain
  • 5 GHz Frequency Band
  • 60° Beamwidth
  • Advanced Noise Immunity
  • Superior Beam Performance
  • Enhanced Scalability of airMAX Networks
  • Improved Signal-to-Noise Ratio
  • Innovative Deflector Design
  • Dimensions 29.5 x 6.8 x 3.1" (75.0 x 17.3 x 7.8 cm) excluding pole mount and Rocket radio (not included)
  • Weight 10.6 lb (4.8 kg) including pole mount and excluding Rocket radio
