RP-5AC-Gen2-BD2

Ubiquiti

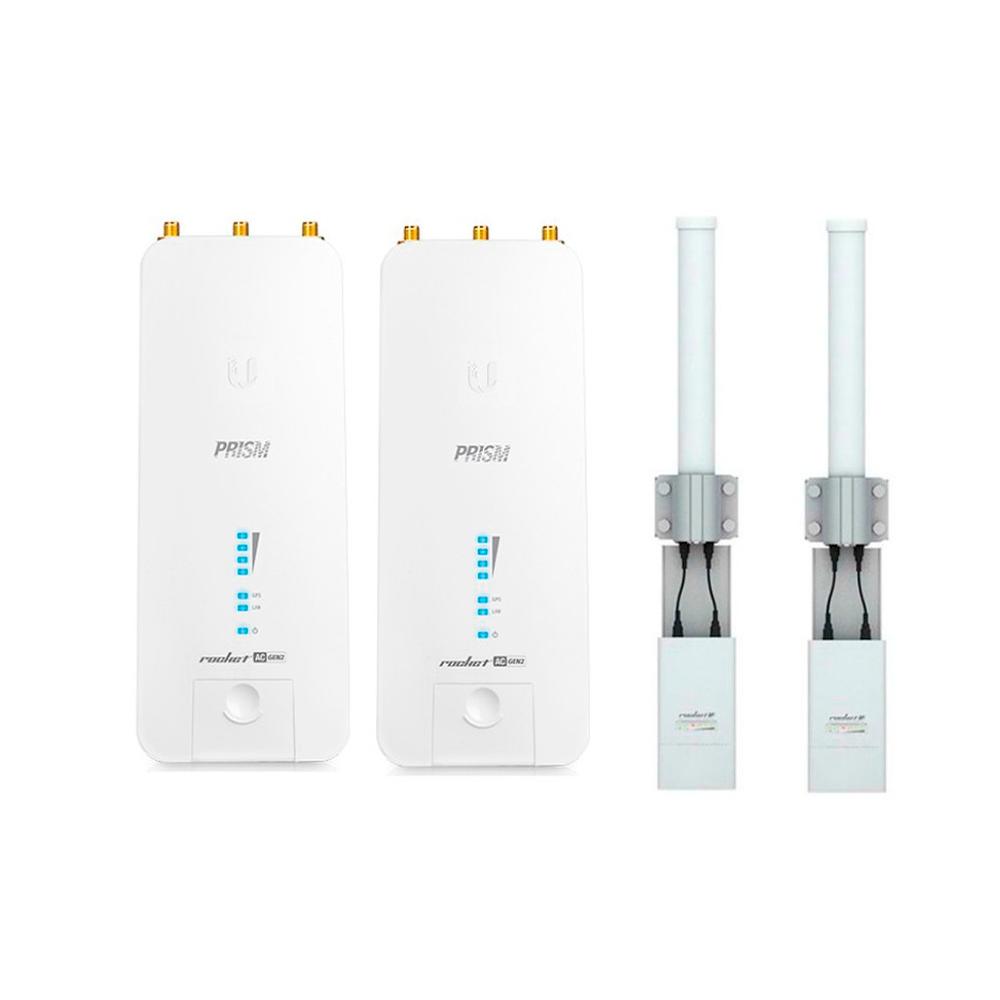

Ubiquiti Rocket Prism RP-5AC-GEN2 5GHz AC airPrism BaseStation PtP/ PtMP (2 Units) + Omni Antenna 10 dBi AMO-5G10 360° Coverage (2 Units)


Model#: RP-5AC-Gen2-BD2

Sku: IT1754

Out of stock

RP-5AC-Gen2 (2 Units)

The RocketPrism 5AC Gen 2 features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. The RP-5AC-Gen2 is an airMAX Rocket with airPrism, part of the wide selection of products from Ubiquiti Networks. This basestation operates on both 2.4 and 5GHz.

The Ubiquiti Networks RP-5AC-Gen2 utilizes airPrism technology to provide breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments. Rocket Prism 5AC features EMI shielded metal housing, GPS, airPrism, circuitry, and the airView real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

  • GPS for Superior Co-Location Performance

Precise GPS frame synchronization enable co-located Rocket Prism 5AC Gen 2 radios to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.

  • 5 GHz Frequency Band

With plenty of available spectrum, this unlicensed band works well for long-distance links. The Rocket Prism 5AC Gen 2 features full-band 5 GHz coverage and maximizes output power for the US market, meeting strict OOBE requirements.

  • High Performance:

Deploy the Rocket Prism 5AC Gen 2 for PtP or PtMP links in high RF noise environments to take full advantage of its design and capabilities

  • Gigabit Ethernet

Delivers high throughput over its wired connection.

+

AMO-5G10 (2 Units)

The Ubiquiti Networks AirMAX Omni 2x2 Dual Polarity MIMO Antenna is designed to be compatible with an optional Rocket M BaseStation to deliver 360° wireless networking. This dual-polarity antenna operates under the 5 GHz frequency and offers a gain of 10 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Ubiquiti has outfitted the antenna with a robust mechanical design that helps ensure outdoor survivability. Included along with the antenna are a pole mount kit, Rocket M bracket, and weatherproof RF jumpers to make your base station building experience easier.

  •  Pair the RocketM’s radio with the airMAX Omni’s reach to create a powerful, 360° omnidirectional basestation.. This seamless integration gives network architects unparalleled flexibility and convenience.

RP-5AC-Gen2 (2 Units)

  • Interface (1) 10/100/1000 Ethernet Port
  • RF Connectors (2) RP-SMA (Waterproof ), (1) GPS* (Waterproof)
  • Processor Specs Atheros MIPS 74Kc
  • PtP Mode: 10/20/30/40/50/60/80 MHz
  • PtMP Mode: 10/20/30/40 MHz
  • Modes: Access Point, Station



+

AMO-5G10 (2 Units)

  • 5 GHz Operating Frequency
  • 10 dBi Antenna Gain
  • 360° Coverage
  • Weatherproof RF Jumpers Included
  • Universal Pole Mount
  • Compatible with Rocket M BaseStations
