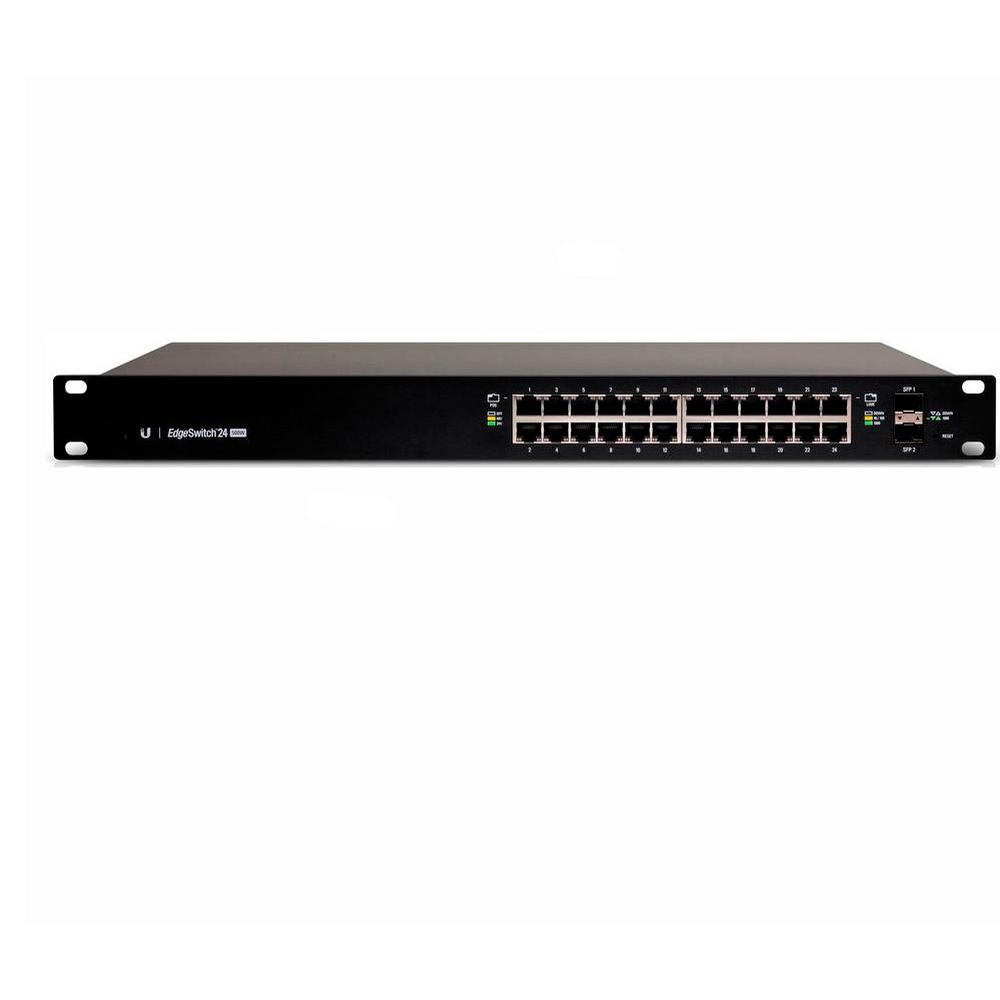

Ubiquiti Networks EdgeSwitch 24-Port ES-24-500W 500-Watt Managed PoE+ Gigabit Switch 2 SFP Ports

ES-24-500W

Ubiquiti
Ubiquiti Networks EdgeSwitch 24-Port ES-24-500W 500-Watt Managed PoE+ Gigabit Switch with 2 SFP Ports


Product Highlights
  • Ubiquiti Networks EdgeSwitch 24-Port ES-24-500W 500-Watt Managed PoE+ Gigabit Switch with 2 SFP Ports
  • The EdgeSwitch delivers robust performance, PoE+ support and intelligent switching for growing networks.
  • The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port model
  • The EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
  • Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
  • Model#: ES-24-500W

    Sku: IT1746.5045.880857



    MSRP: $793.00

    Out of stock

    Your Price: $595.00


    Model: ES-24-500W

    EdgeSwitch Managed PoE+ Gigabit Switch SFP

    The EdgeSwitch ES-24-500W is 24-Port, Managed PoE+ Gigabit switch with 500W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP+ SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.



    • Powerful Enterprise Switch Models

    The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port model.



    • Enterprise-Class Features

    The EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.



    • Convenient PoE+ Support

    The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.



    • Advanced UI

    The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

    Product Specifications

    • Ports

    (24) Gigabit RJ45 ports
    (2) SFP ports

    • Total Non-Blocking Throughput:

    26Gbps

    • Switching Capacity:

    52Gbps

    • Forwarding Rate:

    38.69 Mpps

    • Max. Power Consumption:

        Includes PoE Output: 500W
        Excludes PoE Output: 30W

    • Power Method:

    100-240VAC / 50-60Hz, Universal Input

    • Power Supply:

    AC/DC, Internal, 500W DC

    • Networking Interfaces:

    (24) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1Gbps SFP Ethernet Ports

    • Management Interface:

    (1) RJ45 SerialPort, Ethernet In/Out Band

    • Certifications:

    CE, FCC, IC

    • Rackmount:

    Yes, 1U High

    • PoE Interfaces:

     PoE+ IEEE 802.3af/at (Pins 1,2+;3,5-) / 24VDC Passive PoE (Pins 4,5+;7,8-)
