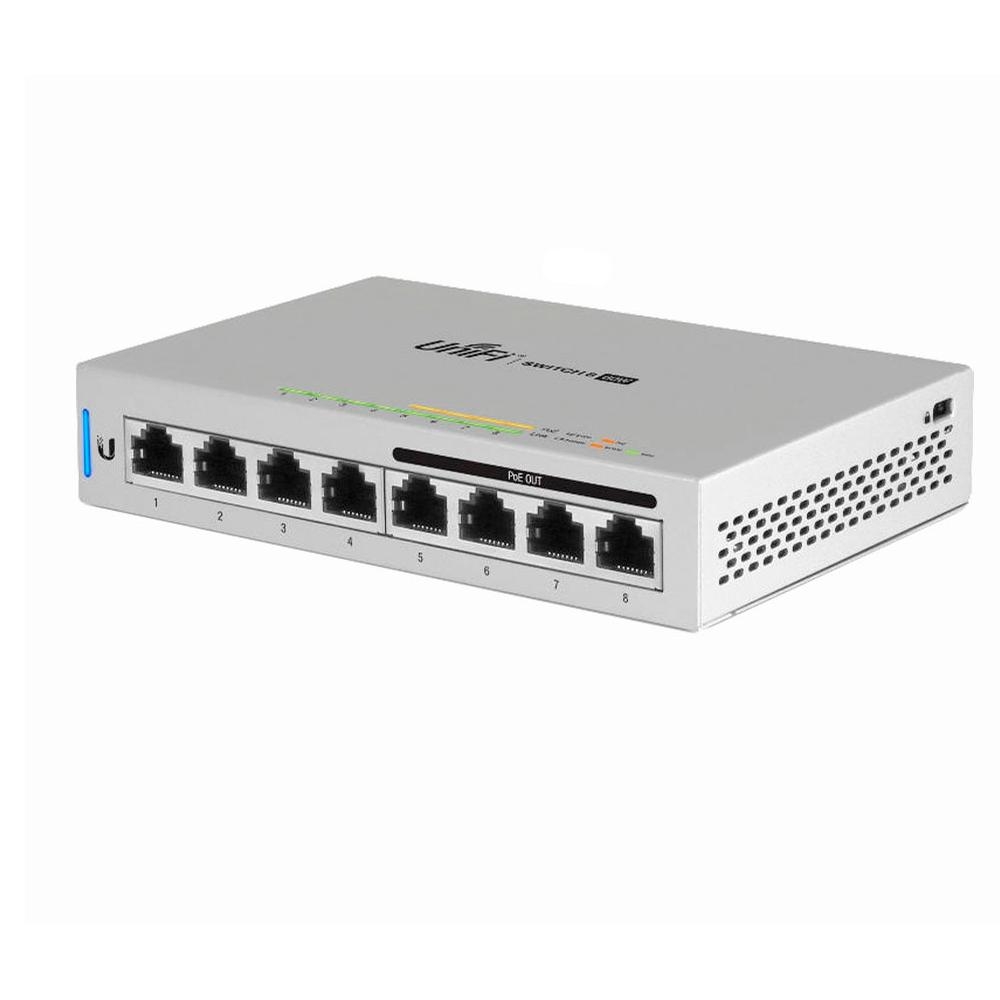

UniFi Switch 8 Fully Managed Gigabit Switch
The Ubiquiti Networks UniFi US-8-60W model features Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your growing networks. The switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each supports up to 8 Gbps with a switching capacity of 16 Gbps. This model has four auto-sensing PoE ports that can deliver up to 15.4W of power for PoE devices.
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
4 x Auto-Sensing IEEE 802.3af PoE ports
Non-Blocking Throughput: 8 Gbps
Switching Capacity: 16 Gbps
Forwarding Rate: 11.9 Mpps
Dimensions 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
Weight 432 g (15.24 oz)
Enclosure Characteristics SGCC Steel
Total Non-Blocking Throughput 8 Gbps
Switching Capacity 16 Gbps
Forwarding Rate 11.9 Mpps
Max. Power Consumption 12W (Excluding PoE Output)
Max. PoE Wattage per Port 15.4W
Power Method 48VDC, Max. 2A
Supported Voltage Range 57VDC to 44VDC
Power Supply External AC/DC Adapter, 48V, 1.25A
LEDs PoE (Port 8), Speed/Link/Activity (All Ports)
Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports
PoE Interfaces (4) Ports 5, 6, 7, 8; IEEE802.3af
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
Certifications CE, FCC, IC
