Ubiquiti Networks UniFi Switch 8 US-8 8-Port Fully Managed Gigabit Switch

US-8

Ubiquiti
Ubiquiti Networks UniFi Switch 8 US-8 8-Port Fully Managed Gigabit Switch


Product Highlights
  • Ubiquiti UniFi Switch 8 US-8 8-Port Fully Managed Gigabit Switch
  • The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
  • The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.
  • The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
  • The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
  • Model#: US-8

    Sku: IT1730.5002.865346



    MSRP: $109.95

    In Stock

    Your Price: $109.95




    Model: US-8

                                            UniFi Switch 8 Fully Managed Gigabit Switch

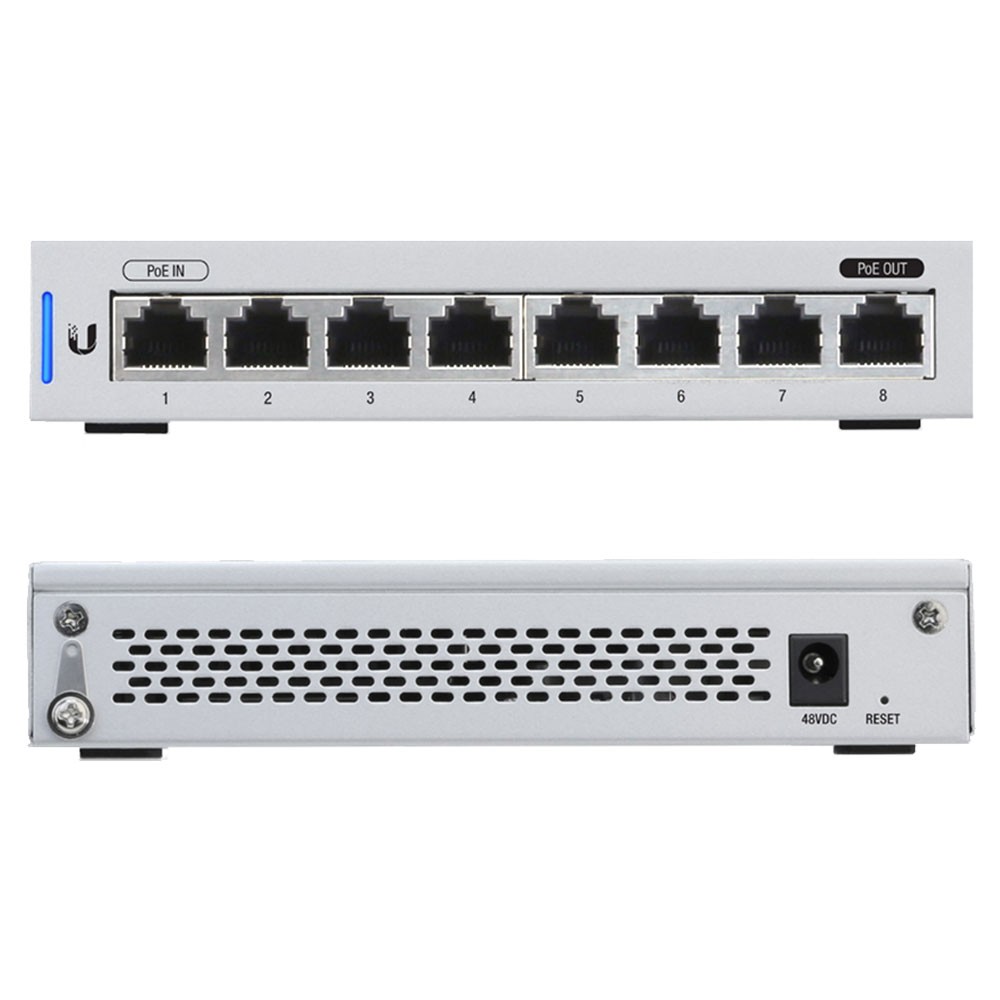

    The Ubiquiti US-8 model features Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your growing networks. The switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each supports up to 8 Gbps with a switching capacity of 16 Gbps. This model has a PoE Passthrough port. It's output voltage and power rely directly on then power input.


    • 8-Port Managed Gigabit Switches

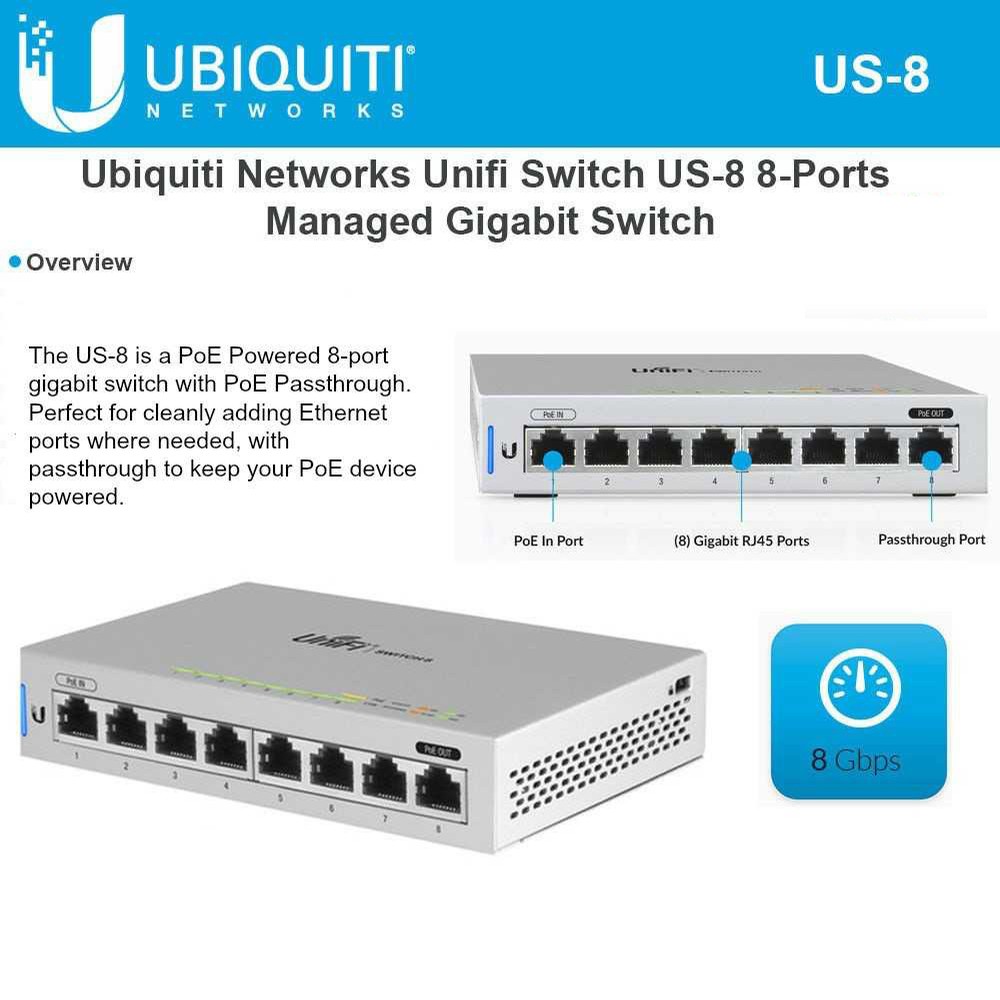

    The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.



    • Non-Blocking Throughput

    The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.

    • Switching Capacity

    The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.

    • Seamless Integration

    A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

    • 8 x RJ-45 Gigabit Ethernet Ports
    • 1 x PoE Passthrough Port

    • 8 Gbps Non-Block Throughput

    • 16 Gbps Switching Capacity

    • 11.9 Mpps Forwarding Rate

    • 12 W Maximum Power Consumption

    • UniFi Controller Administration Software



    Product Specifications:

    • Dimensions:

    148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21 ")

    • Weight:

    422 g (15.24 oz)

    • Total Non-Blocking Throughput:

    8 Gbps

    • Switching Capacity:

    16 Gbps

    • Max. Power Consumption:

    12W (Excluding PoE Output)

    • Power Method:

        (1) DC 48V or 24V, Max. 1.25A
        (1) PoE Input, 802.3af/at (Pins +1,2; -3,6); Passive 24V (Pins +4,5; -7,8)

    • Supported Voltage Range:

        DC: 48V or 24V
        48V Mode: 56V to 40V
        24V Mode: 27V to 20V
