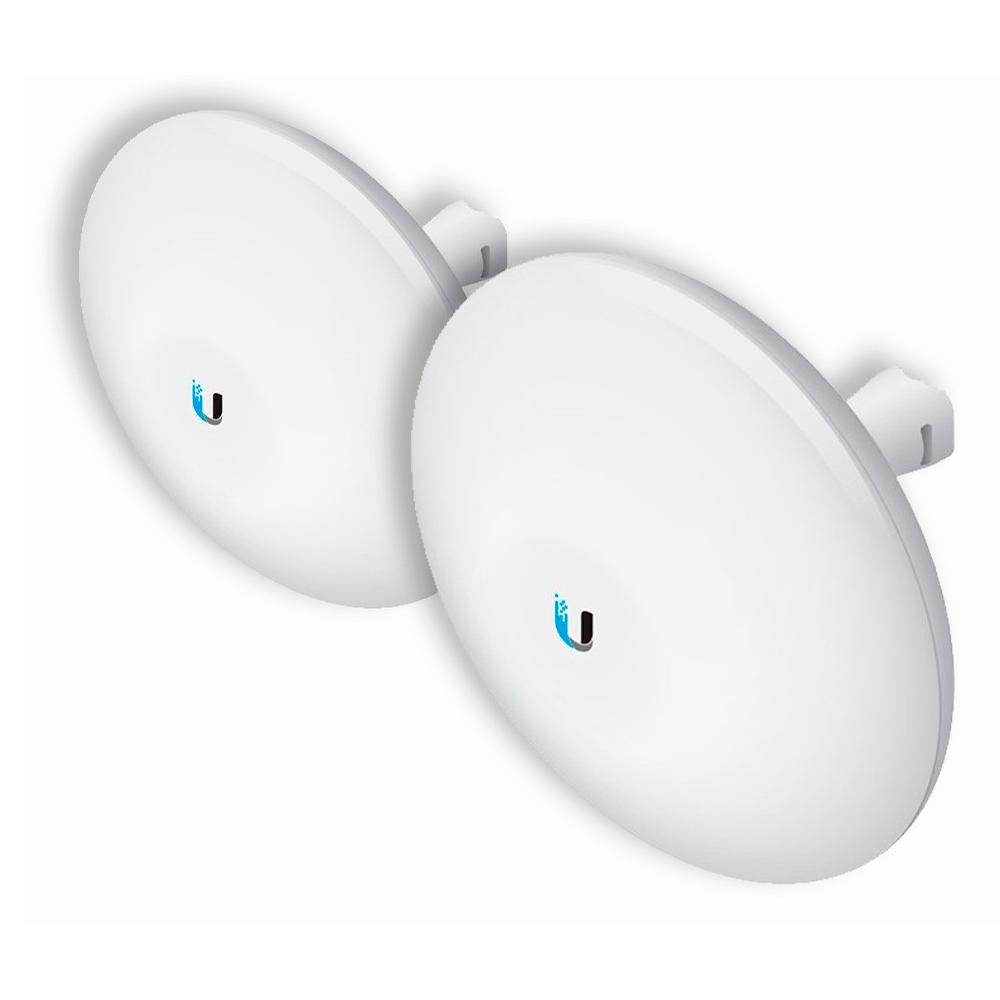

Ubiquiti NBE-5AC-Gen2 5GHz NanoBeam CPE Dedicated Management Radio airMAX Bridge Bandwidth (2 Pack)


Ubiquiti Networks NBE-5AC-Gen2 5GHz NanoBeam CPE Dedicated Management Radio High-Performance airMAX ac Bridge Bandwidth (2 Units)

Model#: NBE-5AC-Gen2-2PK

Sku: IT1722.4981.857728

MSRP: $198.00

Out of stock

Your Price: $198.00

Model: NBE-5AC-Gen2 (2 Pack)

                                                                                                 NanoBeam AC

                                                                              High-Performance airMAX® ac Bridge

Ubiquiti Networks NBE-5AC-Gen2 is a Gen 2 airMAX NanoBeam. This product operates on both 2.4GHz and 5GHz frequencies, with a 19dBi gain. You can now setup your NanoBeam through the UMobile app.

Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeamAC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.



  • Management Wi-Fi Radio

The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

  • Improved Surge Protection

The NanoBeam AC features enhanced protection against ESD events.

  • Superior Processing

Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

  • Incredible Antenna “Beam” Performance

The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

Products Specifications:

Operating Frequency:

  • 5 GHz


  • 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")

Power Supply

  • 24V, 0.5A Gigabit PoE Adapter (Included)

Max. Power Consumption

  • 8.5W


  • 19dBi

Networking Interface

  • (1) 10/100/1000 Ethernet Port Wi-Fi for Management

Processor Specs

  • Atheros MIPS 74Kc, 720 MHz


  • 128 MB DDR2, 8 MB Flash

Channel Sizes

  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP:10/20/30/40 MHz
