NBE-5AC-Gen2

Ubiquiti

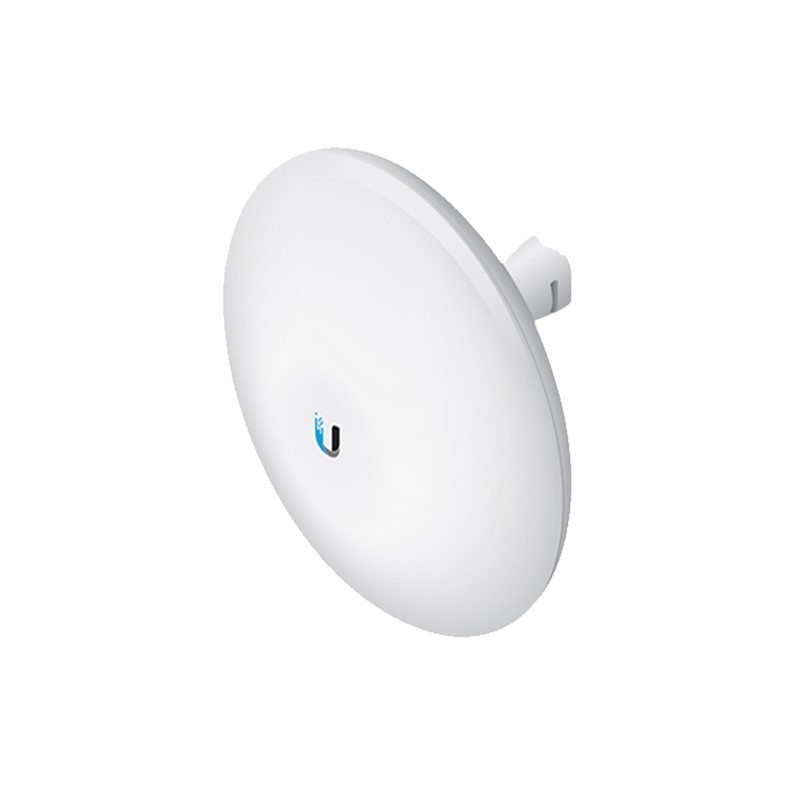

Ubiquiti Networks NBE-5AC-GEN2 5GHz NanoBeam ac Gen2 19dBi INTERNATIONAL VERSION



Product Highlights
  • The NanoBeam 5AC Gen 2 gets maximum gain out of the smallest footprint
  • Providing high performance and an innovative form factor, the NanoBeam is versatile and cost-effective to deploy
  • With the focus in one direction, the NanoBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved
  • The radio and antenna are combined to create a more efficient and compact CPE
  • The NanoBeam 5AC Gen 2 directs RF energy in a tighter beamwidth
  • Model#: NBE-5AC-Gen2

    Sku: IT1709



    MSRP: $108.00

    In Stock

    Your Price: $108.00






      Model: NBE-5AC-Gen2

                                     NanoBeam AC Gen2

                           airMAX® ac CPE with Dedicated Management Radio

     Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam 5AC Gen 2.





    Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeamAC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

    • High-Performance airMAX ac Bridge

    Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam ac is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

    • Improved Noise Immunity

    The NanoBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

    • Integrated Design

    The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 5AC Gen 2 gets maximum gain out of the smallest footprint. Providing high performance and an innovative form factor, the NanoBeam 5AC Gen 2 is versatile and cost-effective to deploy.

    • Powerful Wireless Features

    - Access Point PtMP airMAX Mixed Mode

    - airMAX ac Protocol Support

    - Long-Range Point-to-Point (PtP) Link Mode

    - Selectable Channel Width

    - PtP: 10/20/30/40/50/60/80 MHz

    - PtMP: 10/20/30/40 MHz

    - Automatic Channel Selection

    - Transmit Power Control: Automatic/Manual

    - Automatic Distance Selection (ACK Timing)

    - Strongest WPA2 Security

    • Dimensions:

    189 x 189 x 125 mm (7.44 x 7.44 x 4.92")

    • Power Supply

    24V, 0.5A Gigabit PoE Adapter (Included)

    • Max. Power Consumption

    8.5W

    • Gain

    19dBi

    • Networking Interface

    (1) 10/100/1000 Ethernet Port Wi-Fi for Management

    • Processor Specs

    Atheros MIPS 74Kc, 720 MHz

    • Memory

    128 MB DDR2, 8 MB Flash

    • Channel Sizes

    PtP: 10/20/30/40/50/60/80 MHz

    PtMP:10/20/30/40 MHz




    Datasheet

    PDF File Ubiquiti Networks NBE-5AC-GEN2 5GHz NanoBeam ac Gen2 19dBi INTERNATIONAL VERSION
