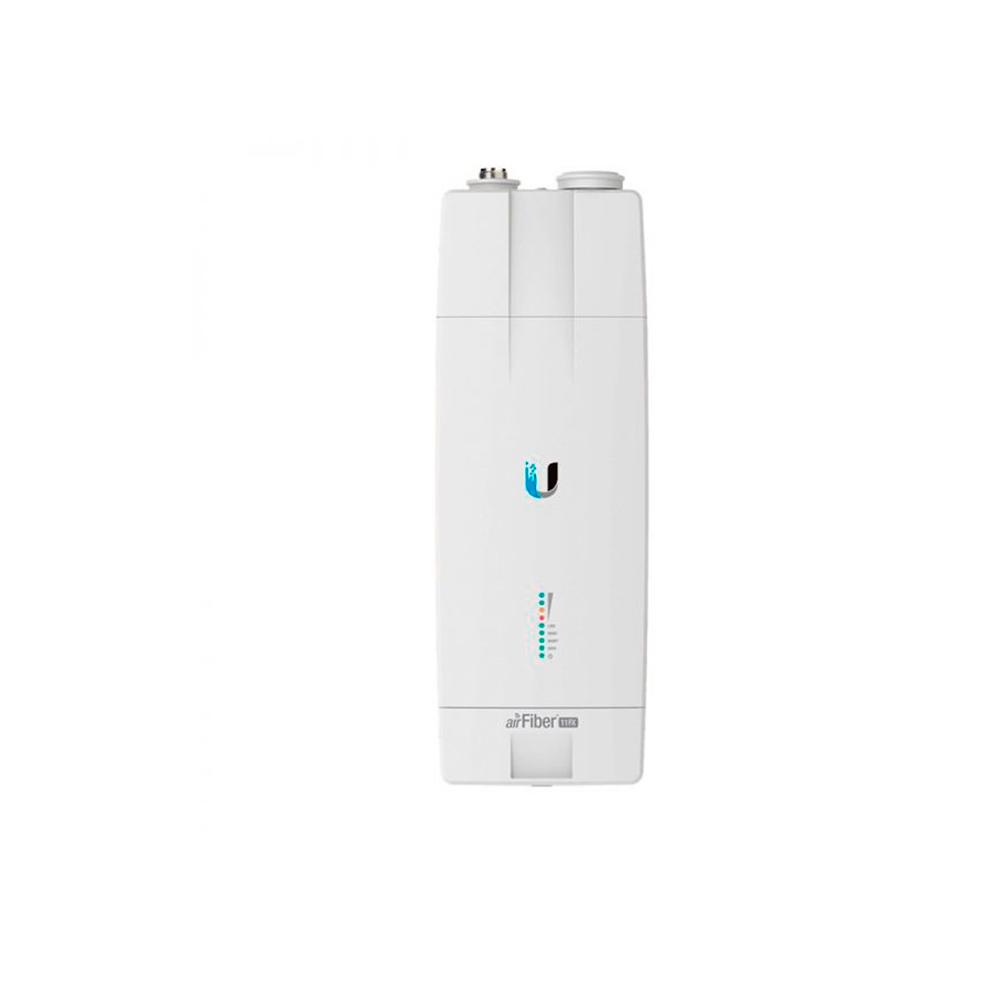

Ubiquiti Networks airFiber AF-11FX 11GHz PtP Licensed Backhaul Radio with Low-Band Duplexer

AF-11FX-L

Ubiquiti
Ubiquiti Networks airFiber AF-11FX 11GHz PtP Licensed Backhaul Radio with Low-Band Duplexer

Model#: AF-11FX-L

Sku: IT1702.4889.832107



MSRP: $1,249.99

In Stock

Your Price: $799.00




Using the AF-11FX-L airFiber 11FX Low-Band Licensed Backhaul Radio from Ubiquiti Networks to connect the Ubiquiti AF-11G35 antenna or a variety of third party antennas using the optional adapter kit. Regardless of the antenna you're connecting to, this radio offers enhanced connectivity using the licensed 11 GHz radio band. By utilizing this radio band clients benefit from enhanced wireless connectivity complete with higher data transfer rates at greater distances.

This Ubiquiti Backhaul Radio can be configured to use either single (SISO) or multiple (MIMO) connectivity while a network admin can configure the transmit and receive signals to reside on separate channels to further improve network performance. Installation is simple as the radio supports both DC and PoE power and comes with silicone boots to help protect against the elements when installed outdoors.

  • True Full-Duplex Design

The AF-11FX offers a true FDD solution that fully satisfies all licensing requirements for the 11 GHz band.

  • Ultra-Low Latency

Overall customer experience and system capacity is enhanced with FDD performance.

  • Enhanced Robustness

The AF-11FX features a unique, built-in, rain-fade mitigation strategy for increased link robustness.

  • Extended Range

The RF power amplifiers feature a unique bias scheme, allowing high-order constellations at longer ranges.

  • Optimized Channels

The airFiber AF-11FX can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements. The AF-11FX also features different channel width sizes to suit your deployment needs, and you can independently configure TX and RX channel frequencies.

  • Reconfigurable Duplexers

The AF-11FX features a unique modular duplexer design to suit multiple frequency configurations. Each AF-11FX radio can be configured to support any allowable frequency by simply changing the duplexers for high-band or low-band use in the 10.7 - 11.7 GHz allocation. Each duplexer has a low channel and a high channel that can be configured by simply reversing the position of the duplexer.

  • High Performance

The compact AF-11FX supports high-order constellations - up to 1024 QAM - allowing it to deliver enhanced spectral efficiency.

  • Power Source Options

Support for PoE or DC power gives you the flexibility to power the AF-11FX separately from Ethernet traffic.

• PoE power can be supplied on the DATA port, using the provided PoE adapter.
• DC power can be supplied using the terminal block.

  • Versatile, Ruggedized N-Type Connectors

N-connectors allow the AF-11FX to be used with either the Ubiquiti AF-11G35 antenna or a variety of commonly available antennas. Specially designed silicone boots provide a weatherproof barrier against dust and moisture.

Products Higlights

  • Low-Band Duplexer 10.700 - 10.955 GHz 11.200 - 11.445 GHz
  • Full-Duplex, Point-to-Point Radio
  • 11 GHz Frequency Operation
  • Up to 1.2+ Gbps Throughput
  • 4 x SMA Weatherproof RF Connectors
  • Passive Power over Ethernet Support
  • 36 W Max. Power Consumption
  • Includes Integrated Pole Mount
  • Oversized Rocket Mount Compatible
  • 1 x Gigabit Ethernet Data Port
  • 1 x Fast Ethernet Management Port
  • RF Connectors

4 x SMA weatherproof
TX 0, RX 0 (chain 0) and TX 1, RX 1 (chain 1)
2 x N-Type waterproof, one per duplexer

  • Power Supply

50 VDC, 1.2 A PoE Gigabit adapter (included)

  • Power Method

Passive Power over Ethernet
Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) or DC power block

  • Power Consumption

36 W

  • Supported Voltage

38-56 VDC

  • Mounting

Integrated pole mount included
Oversized rocket mound compatible

  • Certifications

CE, FCC, IC

  • Operating Temperature

-40 to 131°F / -40 to 55°C

  • LEDs

8 x Status LED indicators
• Data port link/activity
• Management port link/activity
• MIMO mode
• RF link
• 4 x Autoscaling signal strength bar graph

  • Networking Interface

Data Port
1 x 10/100/1000 Ethernet port
Management Port
1 x 10/100 Ethernet port

  • System Specifications

Processor
INVICTUS 2 IC
Maximum Throughput
1.2+ Gbps
Maximum Range
186+ mi / 300+ km
Encryption
128-bit AES
OS
airOS F
Wireless Modes
SISO/MIMO

  • Wireless Radio Specifications

Frequency Range
10.7-11.7 GHz
Max. Conducted TX Power
30 dBm
(Dependent on regulatory region)
Frequency Accuracy
± 2.0 ppm
Channel Bandwidth
3.5/5/7/10/14/20/28/30/40/50/56 MHz selectable

  • Suggested Max. TX Power

10x (1024 QAM) 18 dBm
8x (256 QAM) 21 dBm
6x (64 QAM) 24 dBm
4x (16 QAM) 30 dBm
2x (4 QAM) 30 dBm
1x (QPSK) 30 dBm

  • Duplex Operation

Low Channel: 10.700 to 10.955 GHz
High Channel: 11.200 to 11.445 GHz

  • Dimensions

12.87 x 4.41 x 3.39" / 327 x 112 x 86 mm

  • Weight

5.00 lb / 2.26 kg
