UAP-AC-HD-US

Ubiquiti

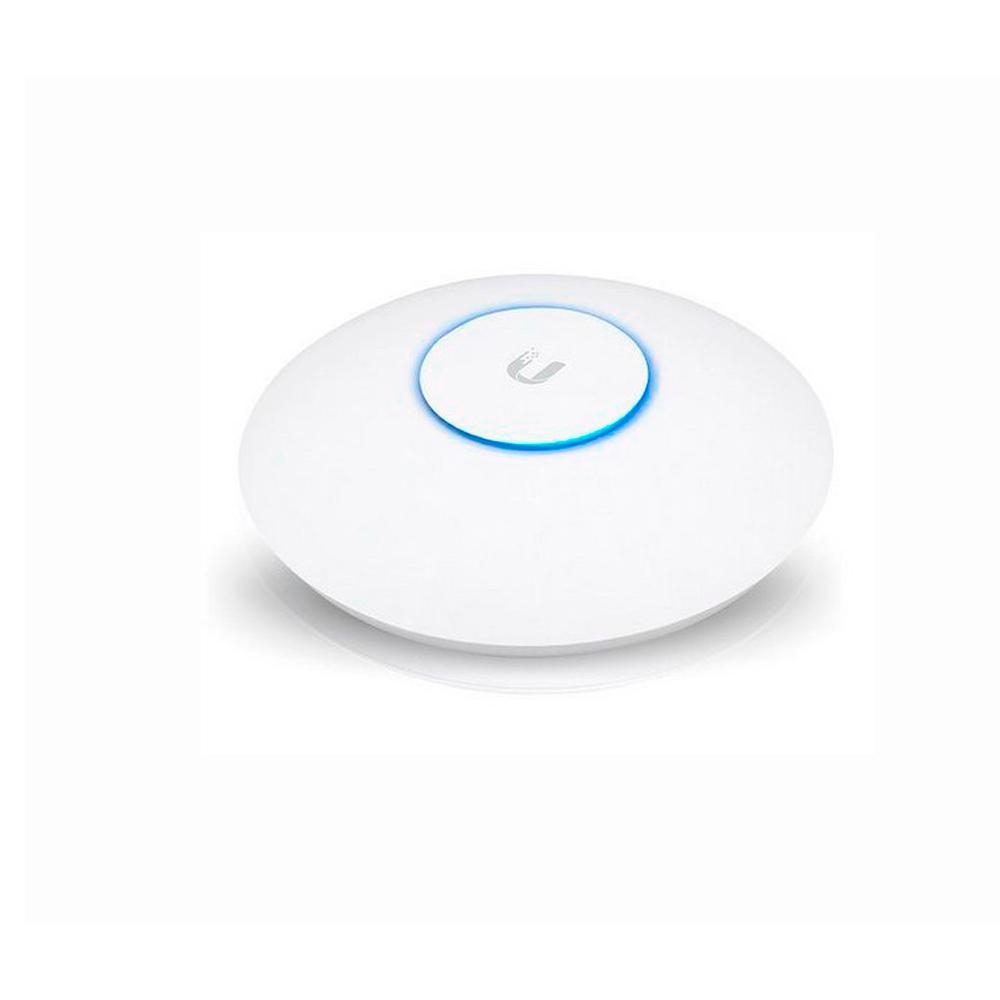

Ubiquiti Networks UAP-AC-HD-US UniFi AP ac HD US



Product Highlights
  • 2.4/5 GHz Indoor/Outdoor
  • 2.4 GHz Speed: 450 Mbps
  • 5 GHz Speed: 1300 Mbps
  • 802.3af PoE/802.3at PoE+
  • Model#: UAP-AC-HD-US

    Sku: IT1696



    MSRP: $339.99

    In Stock

    Your Price: $339.99






    Model: UAP-AC-HD-US

    US Version

    High-Density Applications Powered by MU-MIMO Technology

    802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience.

    Radio Hardware Acceleration

    Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi-user throughput and reduced latency

    CPU Hardware Acceleration

    Dedicated hardware offload for QoS, Guest Control, and Client Management

    Optimized for MU-MIMO

    Genetically optimized antenna arrays for maximal utilization of 802.11ac Wave 2 MU-MIMO Beamforming

    Beamforming

    Data is sent and received using multiple antennas to increase throughput and range.

    Advanced Features in UniFi Controller

    UniFi is quickly expanding to a full Software Defined Networking (SDN) solution with seamless integration of high-performance switching, gateways, and more..

    Specifications UAP-AC-HD

    Dimensions 220 x 220 x 48.1 mm
    Weight 700 g (24.7 oz), 830 g (29.3 oz) with Mounting Kits
    Networking Interface (2) 10/100/1000 Ethernet Ports
    Ports (2) Ethernet RJ45, (1) USB Type C
    Buttons Reset
    Antennas (2) 2.4G internal single band antennas, dual polarity (2) 5G internal single band antennas, dual polarity
    Wi-Fi Standards 802.11a/b/g/n/ac/ac-wave2
    Power Method PoE 802.3at
    Power Supply PoE Injector 48VDC -0.5A Gigabit
    Maximum Power Consumption 17W
    Max TX Power 25 dBm
    BSSID 4 Per Radio
    Power Save Supported
    Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
    Certifications CE, FCC, IC
    Mounting Wall/Ceiling (Kits Included)
    Operating Temperature -10 to 70° C (14 to 158° F)
    Operating Humidity 5 to 95% Noncondensing

    ADVANCED TRAFFIC MANAGEMENT

    VLAN 802.1Q
    Advanced QoS Per-User Rate Limiting
    Guest Traffic Isolation Supported
    WMM Supported
    Concurrent Clients 500+

    SUPPORTED DATA RATES (MBPS)

    802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
    802.11ac 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
    802.11b 1, 2, 5.5, 11 Mbps
    802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    Datasheet

    PDF File Ubiquiti Networks UAP-AC-HD-US UniFi AP ac HD US
