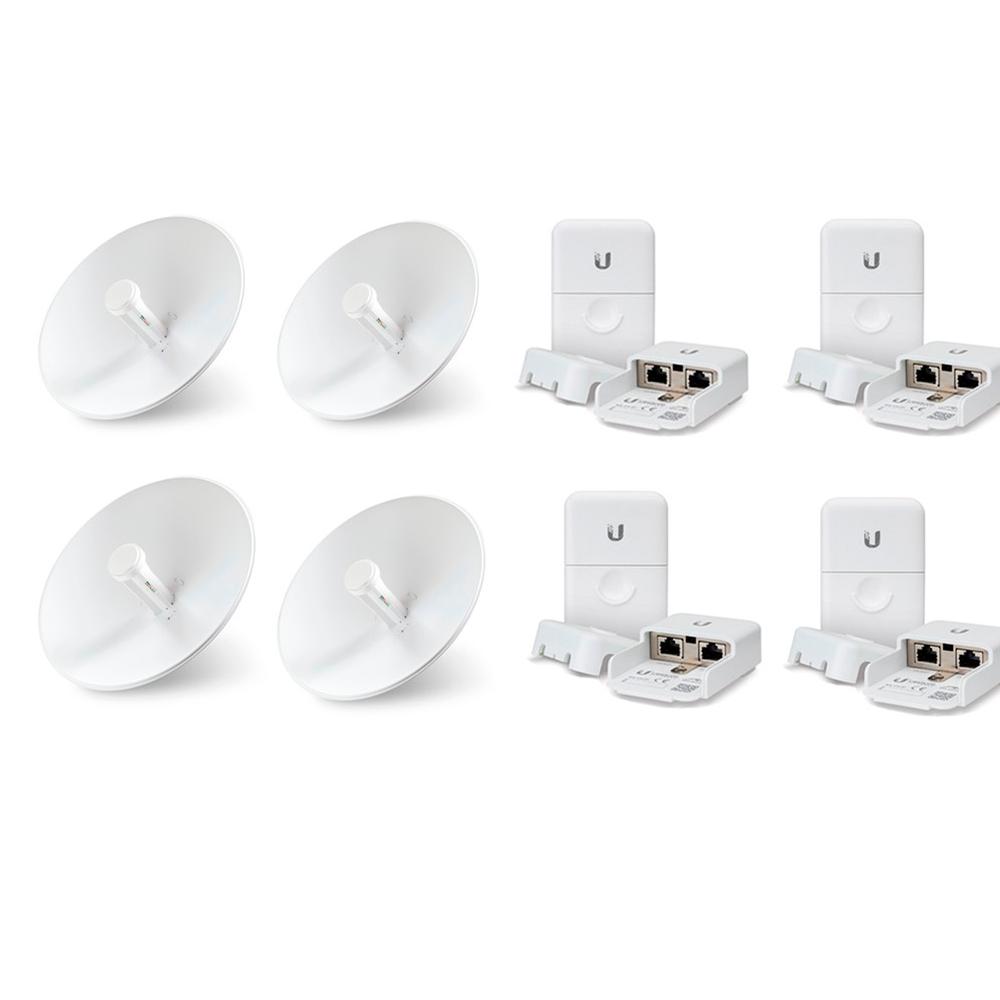

Ubiquiti PowerBeam PBE-5AC-400 4-PACK 25dBi 5GHz airMAX + ETH-SP x4 Protector ESD

PBE-5AC-400-x4-BD1

Ubiquiti
Ubiquiti PowerBeam AC PBE-5AC-400 (4-PACK) 25dBi 5GHz 400mm 11ac High-Performance airMAX CPE/Bridge + ETH-SP (4 Pack) Ethernet Surge Protector ESD for Outdoor PoE Devices

Model#: PBE-5AC-400-x4-BD1

Sku: IT1686.4689.790565



MSRP: $566.00

In Stock

Your Price: $526.00




  •  PBE-5AC-400 (4 Pack)

The PBE-5AC-400 PowerBeam ac 5 GHz airMAX ac Bridges from Ubiquiti Networks directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. This device features a multi-radio architecture to power a revolutionary RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with advanced RF analytics.

  • airMAX ac Protocol Support
  • Long-Range Point-to-Point (PtP) Link Mode
  • Selectable Channel Width
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
  • Automatic Channel Selection
  • Transmit Power Control: Automatic/Manual
  • Automatic Distance Selection (ACK Timing)
  • Strongest WPA2 Security

ETH-SP (4 Pack)

The Ubiquiti Networks Ethernet Surge Protector safeguards your outdoor non-PoE and PoE-based systems from voltage threats such as surges and electrostatic discharge events, which can render an entire network system inoperable. This protector is suitable for use with surveillance cameras, access points, and other Ethernet-equipped devices. Ubiquiti Networks has designed it with two surge-protected Ethernet ports that support Gigabit connection speeds. Furthermore, an external housing guards the Ethernet ports along with the surge protector from outdoor elements.

Introducing the Ethernet Surge Protector, model ETH-SP, from Ubiquiti Networks. The ETH-SP is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP to the installation provides an additional layer of protection to the network.

The ETH-SP is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

  • Easy plug & play installation
  • Protects outdoor Ethernet devices
  • Compatible with 10/100/1000 Mb/s networks
  • 2 x RJ45 female connector
  • 5 kA (maximum) / 0.5 kA (normal)
  • RJ45 10/100/1000 Ethernet

Model: PBE-5AC-400 (4 Pack)  25dBi 5ghz 11AC

  • Atheros MIPS 74Kc, 560MHz
  • 24V, 0.5A Gigabit PoE
  • Max. Power Consumption 8.5W
  • (1) 10/100/1000 Ethernet Port
  • Enclosure Outdoor UV Stabilized Plastic
  • 64 MB DDR2, 16 MB Flash
  • 24 V, 0.5 A Gigabit PoE
  • Passive PoE (Pairs 4, 5+; 7, 8 Return)



Model: ETH-SP (4 Units)

  • Protects Outdoor PoE Devices
  • ESD and Surge Protection
  • Compatible with Gigabit Networks
  • Two Ethernet Jacks
