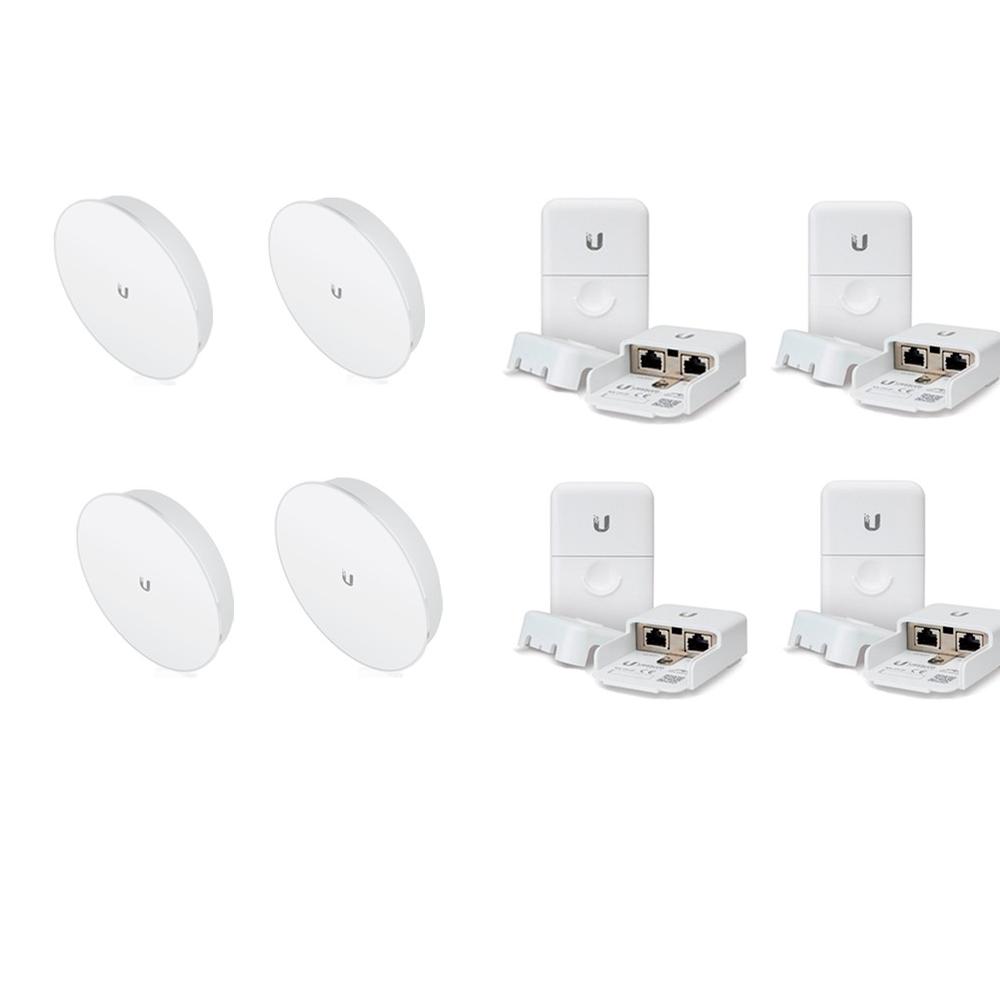

Ubiquiti PowerBeam AC ISO PBE-5AC-400-ISO 5GHz 25dBi airMAX AC Bridge Isolated Reflector 4-PACK with Ethernet Surge Protector ETH-SP-G2 ESD 4-PACK

PBE-5AC-400-ISO-BD1

Ubiquiti
Ubiquiti PowerBeam AC ISO PBE-5AC-400-ISO 5GHz 25dBi airMAX AC Bridge Isolated Reflector 4-PACK with Ethernet Surge Protector ETH-SP-G2 ESD 4-PACK


Product Highlights
  • Ubiquiti PowerBeam AC ISO PBE-5AC-400-ISO 5GHz 25dBi airMAX AC Bridge Isolated Reflector (4-PACK)
  • The 5 GHz airMAX Bridge features an innovative design complete with a metal plated interior rear housing, built-in mechanical tilt, and convenient installation.
  • The PowerBeam ac ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference.
  • The ETH-SP is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.
  • This protector is suitable for use with surveillance cameras, access points, and other Ethernet-equipped devices.
  • Model#: PBE-5AC-400-ISO-BD1

    Sku: IT1685.4688.789928



    MSRP: $566.95

    Out of stock

    Your Price: $566.95


     PBE-5AC-400-ISO (4 Pack)

    The PBE-5AC-400-ISO 5 GHz airMAX ac Bridge with RF Isolated Reflector from Ubiquiti Networks is designed to provide a tighter beamwidth signal directly to the signal's destination. Couple the tighter beamwidth with improved noise isolation and the recipient of the signal benefits from a stronger, more reliable network connection. Additionally, this airMAX ac Bridge also features Ubiquiti's own InnerFeed technology which combines the radio and the feedhorn of the antenna for easier installation while eliminating the need for a cable. The 5 GHz airMAX Bridge features an innovative design complete with a metal plated interior rear housing, built-in mechanical tilt, and convenient installation. Once installed the rugged housing helps the airMAX Bridge to withstand the elements thanks to the outdoor UV stabilized plastic enclosure.

     The PowerBeam ac ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the PowerBeam ac ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.

     Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

     The PowerBeam ac ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the PowerBeam ac ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.



    ETH-SP-G2 (4 Units)

    The Ubiquiti Networks Ethernet Surge Protector ETH-SP-G2 safeguards your outdoor non-PoE and PoE-based systems from voltage threats such as surges and electrostatic discharge events, which can render an entire network system inoperable. This protector is suitable for use with surveillance cameras, access points, and other Ethernet-equipped devices. Ubiquiti Networks has designed it with two surge-protected Ethernet ports that support Gigabit connection speeds. Furthermore, an external housing guards the Ethernet ports along with the surge protector from outdoor elements.

    Introducing the Ethernet Surge Protector, model ETH-SP, from Ubiquiti Networks. The ETH-SP is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP to the installation provides an additional layer of protection to the network.

    The ETH-SP is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

    • Easy plug & play installation
    • Protects outdoor Ethernet devices
    • Compatible with 10/100/1000 Mb/s networks
    • 2 x RJ45 female connector
    • 5 kA (maximum) / 0.5 kA (normal)
    • RJ45 10/100/1000 Ethernet

    PBE-5AC-ISO (4-PACK)

    • 450+Mbps
    • 25+km
    • 5 GHz Operating Frequency
    • 25 dBi Gain
    • Uniform Beamwidth Maximizes Noise Immunity
    • Integrated Isolator Design Improves RF Isolation
    • High-Speed Processor for Superior Performance
    • 400 mm Dish Reflector
    • 1 x Gigabit Ethernet Port
    • Outdoor UV Stabilized Plastic Enclosure
    • Dual Linear Polarization
    • 64MB DDR2 RAM / 128MB Flash Memory
    • Atheros MIPS 74Kc 560 MHz Processor



    ETH-SP (4 Units)

    • Protects Outdoor PoE Devices
    • ESD and Surge Protection
    • Compatible with Gigabit Networks
    • Two Ethernet Jacks
