F-POEx2+POE-24-AF5X

Ubiquiti

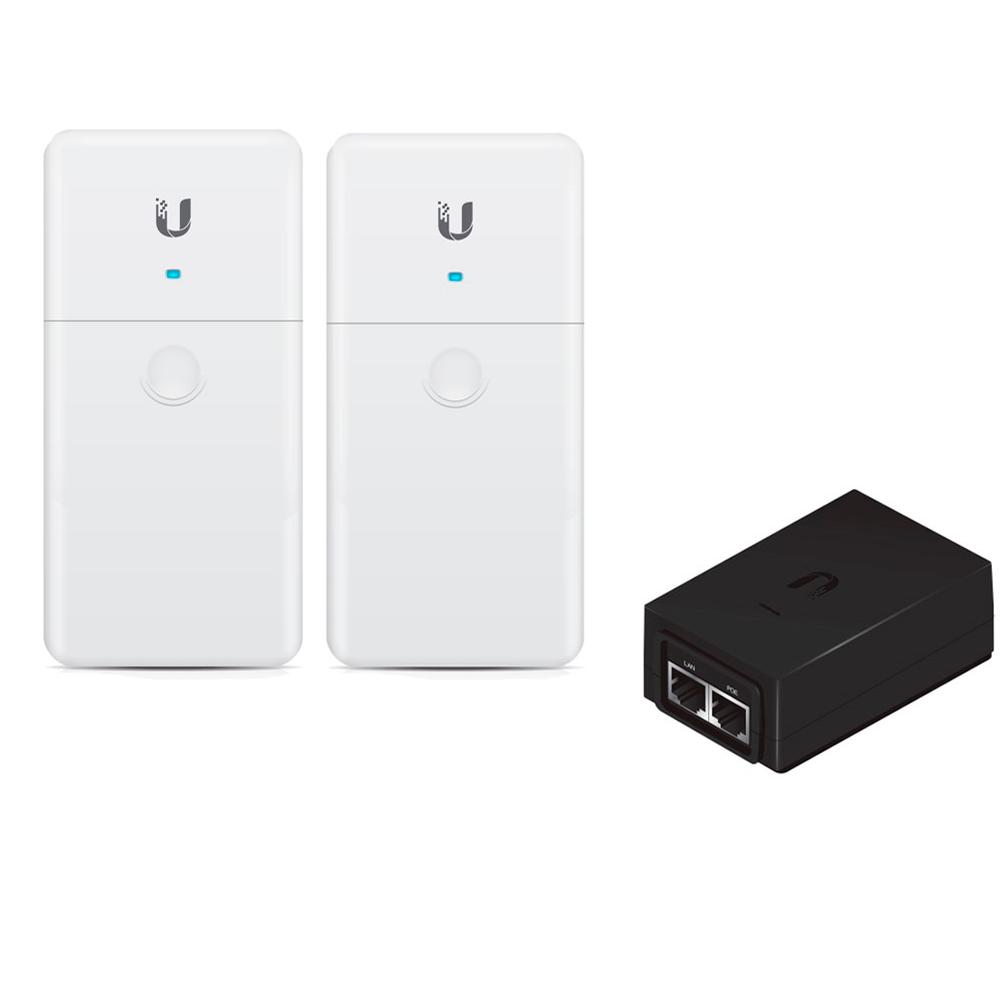

Ubiquiti F-POE-G2 2Pack FiberPoE Optical PoE device +POE-24-AF5X Injector 24VDC 24W



Product Highlights
  • Extend the distance of PoE runs with the F-POE FiberPoE Optical Data Transport from Ubiquiti Networks.
  • Use one FiberPoE as a Fiber-to-Ethernet converter or connect two (available separately) to achieve a Fiber Bridge with one device near the IP device and the other near the Ethernet switch or router.
  • The FiberPoE provides fiber connectivity to any PoE device.
  • The POE-24-AF5X PoE Injector from Ubiquiti Networks is designed for BaseStation equipment.
  • Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products.
  • Model#: F-POEx2+POE-24-AF5X

    Sku: IT1677



    MSRP: $74.00


    Out of stock

    F-POE (2 Units)

     Extend the distance of PoE runs with the F-POE FiberPoE Optical Data Transport from Ubiquiti Networks. FiberPoE allows you to connect your IP devices via PoE and extend data and power over fiber optic cable, to provide extended distances past the 328' maximum. It also provides protection from electromagnetic interference and electrostatic discharge. Use one FiberPoE as a Fiber-to-Ethernet converter or connect two (available separately) to achieve a Fiber Bridge with one device near the IP device and the other near the Ethernet switch or router. This device can operate in extreme temperatures ranging from -22 to 140°F.

     Overcome PoE limitations with the FiberPoE. The FiberPoE is a low-cost solution for outdoor deployments that require long-distance runs to reach the PoE device. Deployments with the FiberPoE also provide significant EMI and ESD protection over typical PoE installations.

     PoE is ideal for indoor or short-run installations. However, for outdoor, long-distance installations, PoE becomes vulnerable to EMI and is limited to 100 meters with correlated power loss. With the FiberPoE, data and power are transported on separate cables to greatly improve data integrity and enable much longer cable runs.

     The FiberPoE provides Gigabit bi-directional data transport between twisted-pair Ethernet cable and fiber optic cable, and injects DC power to the Ethernet cable for passive PoE. Use one FiberPoE device as an Fiber-to-Ethernet Converter, or a pair of FiberPoE devices to create a Fiber Bridge.



    Fiber-to-Ethernet Conversion

    The FiberPoE provides fiber connectivity to any PoE device.





    POE-24-AF5X (1 Unit)

    The POE-24-AF5X PoE Injector from Ubiquiti Networks is designed for BaseStation equipment. This 24 VDC 24W adapter provides protection against surge, clamping, maximum surge discharge, and peak pulse current.Ubiquiti PoE Adapters are highly reliable, provide earth grounding, and surge protection to help protect against electrostatic discharge (ESD) events. ESD attacks are the leading cause for device failures.

    Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices*, including:

    • airFiber
    • airMAX
    • EdgeMAX
    • mFi
    • UniFi AP
    • UniFi Video / airVision

    Protection:
    • Surge protection
    • Clamping protection
    • Maximum surge discharge
    • Peak pulse current
    • AC cable with earth groun



    F-POE (2 Units)

    • (1) 1 Gbps SFP Port
    • (1) DC Terminal Block
    • (1) DC RJ45 Port DC Injection
    • (1) 1000 Mbps* Ethernet PoE Port
    • PoE output: PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC), or 4-Pair (24VDC or 50VDC) PoE
    • DC Terminal Block, 2-Wire, 24VDC or 50VDC
    • DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) Passthrough
    • PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) PoE Passthrough
    • Wheight: 288 g (10.2 oz)



    POE-24-AF5X

    • Ubiquiti POE Injector, 24VDC, 24W, AF-5X.
    • PoE injector, 24VDC, 24, AF-SX.
    • 90 to 260 VAC @ 47/63 Hz Input Voltage
    • Gigabit LAN Port
    • Remote Reset Capability
    • POE designed by Ubiquiti Networks for specific AirFiberX BaseStation Radios.
