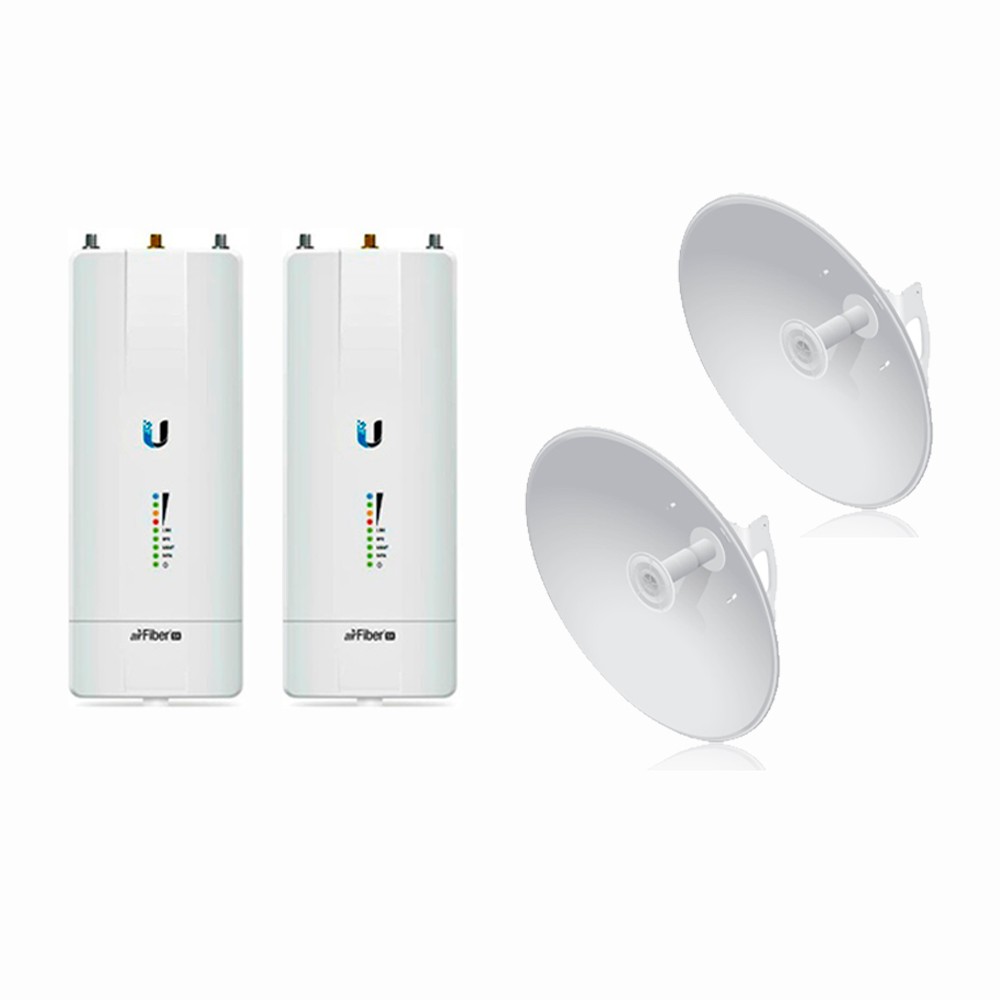

Ubiquiti airFiber X AF-5X Carrier AirMax BaseStation 5GHz 500+Mbps (2-Pack) + airFiber X Antenna AF-5G34-S45 34dBi Slant 45 (2-Pack)

AF-5X-x2+5G34-S45-x2

Ubiquiti
Ubiquiti Networks airFiber X AF-5X Carrier AirMax BaseStation 5GHz 500+Mbps (2-Pack) + airFiber X Antenna AF-5G34-S45 34dBi Slant 45 (2-Pack)

Model#: AF-5X-x2+5G34-S45-x2

Sku: IT1657.4619.765368



MSRP: $1,679.99

Out of stock

Your Price: $1,556.00


Model: AF-5X (2 Units)

The airFiber AF-5X 5 GHz Carrier Backhaul Radio from Ubiquiti is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. Building upon the proven design of the airMax Rocket system, airFiber 5X allows customizable airFiber backhaul links or upgrade existing Rocket PtP links.

+

Model: AF-5G34-S45 (2 Units)

The AF-5G34-S45 34 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio from Ubiquiti produces a reliable point-to-point signal complete with a 34 dBi gain. In addition to the strength of the signal, users also benefit from a 90° beamwidth and a wind survivability rating of up to 125 mph.

Model: AF-5X

  • Operating Frequency: 5470-5600MHz, 5650-5850
  • Channel Bandwidth: 10/20/30/40/50MHz
  • Maximum Throughput: 500+Mbps
  • Maximum Range: 200+km
  • GPS Antenna: external, magnetic base
  • Power Supply: 24V, 1A PoE Gigabit adapter
  • Mounting: airFiber X Mount (Rocket Mount Compatible)
  • Data Port: 1 x 10/100/1000 Ethernet Port
  • Management Port: 1 x (1) 10/100 Ethernet Port

+

Model: AF-5G34-S45

  • Frequency Range: 5100 - 5800MHz
  • Gain: 34dBi
  • +45° Beamwidth: 3° (3dB)
  • -45° Beamwidth: 3° (3dB)
  • Polarization: Dual-Linear
  • Cross-pol Isolation: 35dB Min.
