UVC-G3+UAP-AC-LR-BD1

Ubiquiti

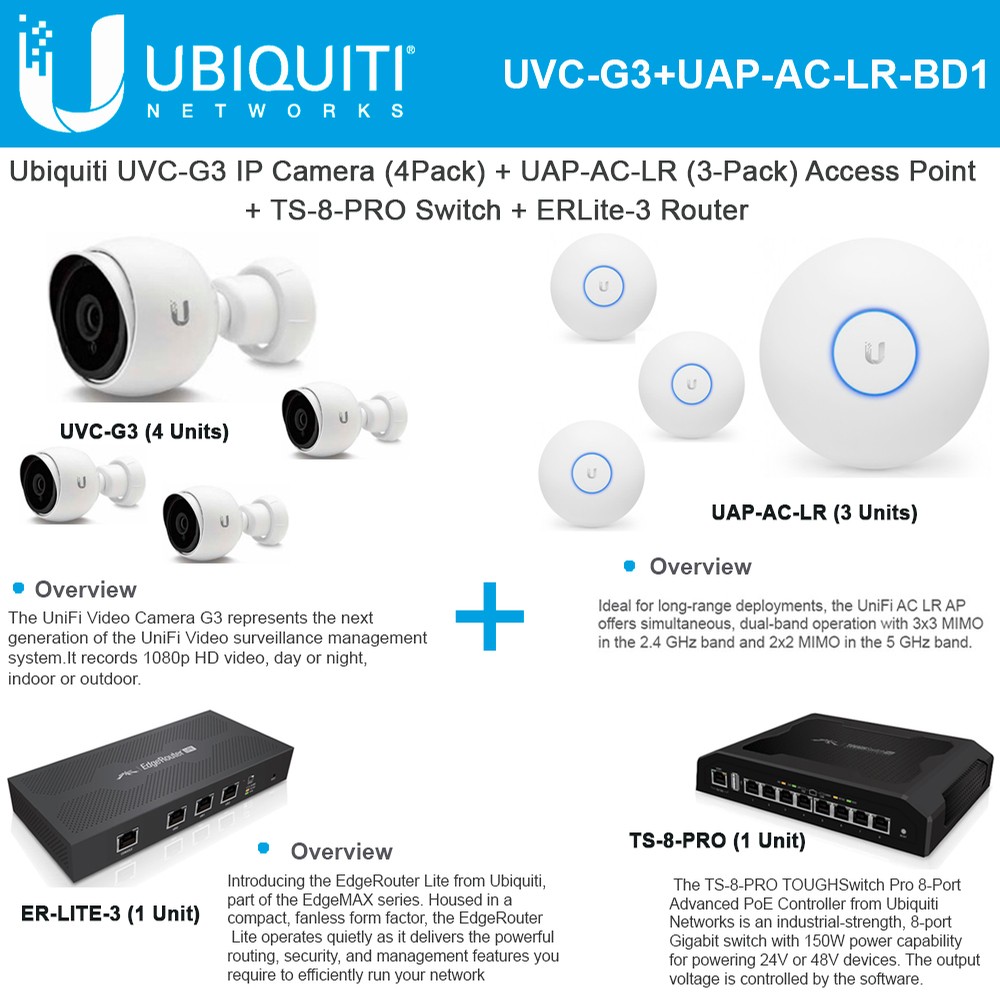

UVC-G3 IP Camera x4 + UAP-AC-LR Access Point x3 + TS-8-PRO Switch + ERLite-3


Model#: UVC-G3+UAP-AC-LR-BD1

Sku: IT1649



MSRP: $1,211.00


Out of stock

  • UVC-G3 (4 Units)

 The UniFi Video Camera G3 represents the next generation of the UniFi Video surveillance management system. It records 1080p HD video, day or night, indoors or outdoors. UVC-G3  with indoor and outdoor wall, ceiling, and pole mounting options, the UniFi G3 Series 2MP Outdoor Bullet Camera from Ubiquiti features multiple mounting options for flexible placement. Additionally, the camera uses a ball joint mount which offers 3-axis angle adjustments for capturing various angles of your viewing area. A 1/3" 4MP HDR sensor provides 1920 x 1080 resolution at 30 fps, and a 3.6mm fixed lens enables the camera to cover an 85 horizontal field of view (72 after lens correction). Equipped with integrated IR LEDs, the camera can be used at night, and a mechanical IR cut filter will automatically switch from color to black and white for clear detail at all times.

The UniFi Video Camera G3 features clear 1080p video resolution. The new ball joint mount design offers flexible 3-axis adjustment and can be mounted indoors or outdoors. The camera has infrared LEDs with an automatic IR cut filter for day and night surveillance. .

  • Use the UniFi Video mobile app for easy camera management and live streaming from an iOS or Android-based smartphone or tablet.
  • Hybrid Cloud Technology combines the best of local and cloud management: secure, local storage and convenient remote access with streaming privacy – no licensing or maintenance fees.



  • UAP-AC-LR (3 Units)

The UAP-AC-LR 802.11ac Long Range Access Point from Ubiquiti is ideal for long-range deployments. This access point offers simultaneous, dual band operation with 3 x 3 MIMO in the 2.4 GHz band and 2 x 2 MIMO in the 5 GHz band. The innovative antenna design provides a long range, symmetrical link coverage area. The antenna gain of this access point performs better than what one way, high transmit power does for connecting distant clients.

Ideal for long-range deployments, the UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band. The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.



  • TS-8-PRO (1 Unit)

 The TS-8-PRO TOUGHSwitch Pro 8-Port Advanced PoE Controller from Ubiquiti Networks is an industrial-strength, 8-port Gigabit switch with 150W power capability for powering 24V or 48V devices. The output voltage is controlled by the software. It delivers reliable passive PoE and fast 10/100/1000 Mb/s connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect the PoE devices, you need to enable PoE in the TOUGHSwitch configuration interface. Each port can be individually configured to provide PoE, so that both PoE and non-PoE devices can be connected.

  • Gigabit Ethernet performance combined with Industrial strength construction and a 150Watt power supply
  • It is the ideal PoE solution for use with Ubiquiti airMAX base station deployments.



  • ERLite-3  (1 Unit)

The ERLite-3 EdgeMax EdgeRouter Lite 3-Port Router from Ubiquiti Networks is housed in a compact, fanless form factor. It operates quietly and delivers powerful routing, security, and management features you require to efficiently run a network. This EdgeRouter Lite provides a graphical user interface designed for convenient setup and control. Each of its Gigabit port functions as an independent interface. You can configure Virtual Local Area Network (VLAN) interfaces to meet network segmentation requirements.

Introducing the EdgeRouter Lite from Ubiquiti, part of the EdgeMAX series. Housed in a compact, fanless form factor, the EdgeRouter Lite operates quietly as it delivers the powerful routing, security, and management features you require to efficiently run your network.

  • Edgemax Series EdgeRouter Lite Router, 3x Gigabit LAN Ports with 802.1q VLAN support, Dual-core CPU MIPS64, 500MHz, 512 MB DDR2 RAM







  • UVC-G3 (4 Units)
  • Dimensions: 75 x 140 mm (2.95 x 5.51")
  • Weight: 300 g (10.58 oz)
  • Enclosure: Injection-Molded Polycarbonate and Die-Cast Aluminum
  • Networking Interface: (1) 10/100 Ethernet Port
  • Sensor: 1/3" 4-Megapixel HDR Sensor
  • Lens: EFL 3.6 mm, F1.8
  • Night Mode: IR LEDs with Mechanical IR Cut Filter
  • Microphone: Yes
  • Button: Factory Reset Button
  • Power Method: 24V Passive PoE
  • Power Supply: 24V, 0.5A PoE Adapter (Included with Single-Pack)
  • Maximum Power Consumption: 4W
  • Mounting: Wall/Ceiling/Pole
  • Operating Temperature: -30 to 70° C (-22 to 158° F)
  • Operating Humidity: 20 - 90% Noncondensing





  • UAP-AC-LR (3 Units)
  • 802.11 a/b/g/n/ac Wi-Fi Standards
  • Range of up to 600'
  • 1 x 10/100/1000 Ethernet Ports
  • Up to 450 Mbps on 2.4 Ghz Wireless
  • Up to 867 Mbps on 5 Ghz Wireless
  • UniFi Controller Software
  • Integrated Omni Antennas
  • Guest Portal/Hotspot Support
  • Passive Power over Ethernet
  • CE, FCC, IC Certified





  • TS-8-PRO (1 Unit)
  • 8 x 10/100/1000 Ethernet Data Ports
  • 1 x 10/100 Ethernet Management Port
  • MIPS 24K, 400 MHz Processor
  • USB 2.0 Type A Port
  • 64MB System Memory
  • 8MB Code Storage
  • 24V/48V Configurable Passive PoE
  • PoE Configuration Interface
  • Tough Full Metal & Rubber Casing
  • CE, FCC, IC Certified



  • ERLite-3  (1 Unit)
  • (1) RJ45 Serial Port
  • (3) 10/100/1000 Ethernet Ports
  • 1,000,000 pps
  • 3 Gbps (Line Rate
  • 512 MB DDR2 RAM
  • Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing
  • Power: 12VDC, 1A Power Adapter (Included)
  • Power Input: 9 to 24VDC Supported Voltage Range
  • Dual-core CPU MIPS64, 500MHz
  • Performance 1000000 pps
  • Intuitive WEB and CLI management interfaces
  • Support fro RIP, RIPng, OSPF, OSPFv3, BGP4 routing protocols
  • IPv6 enabled
  • VPN IPSec, PPTP, L2TP, OpenVPN
