R5AC-Lite+5AC21-60x2

Ubiquiti

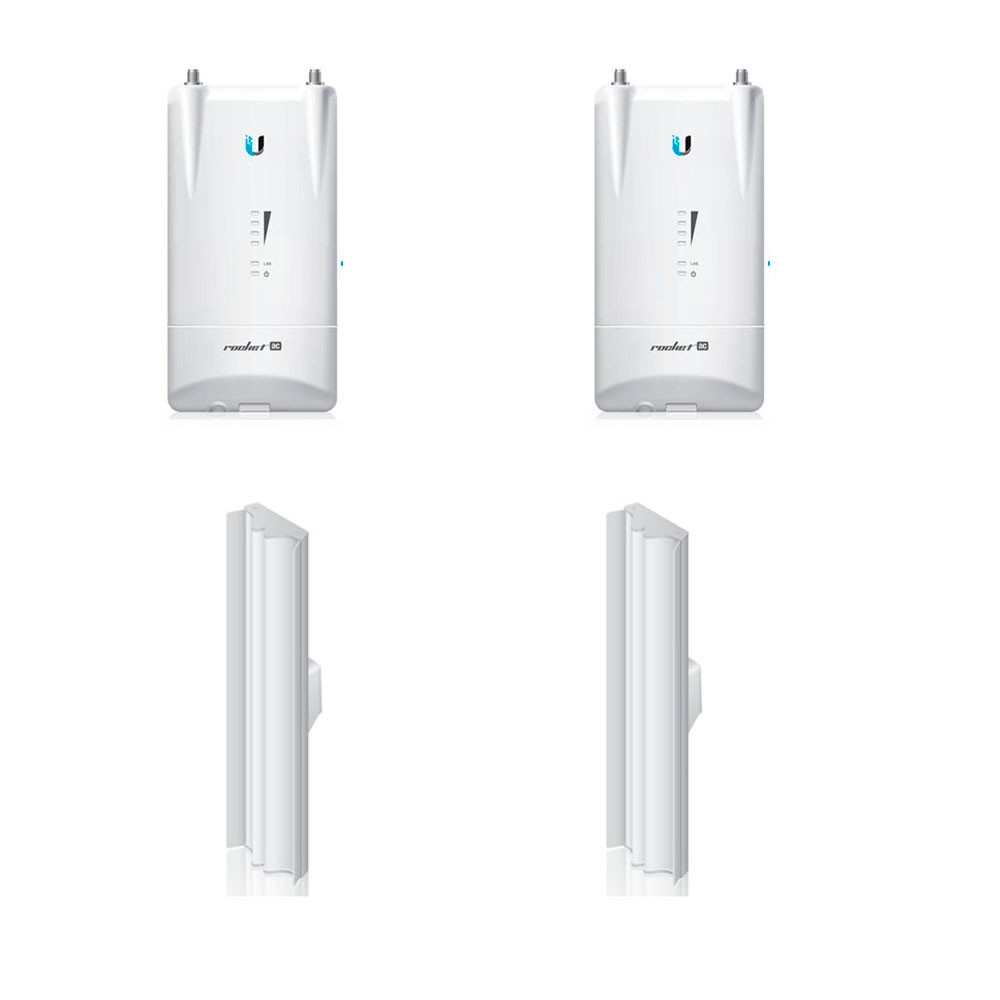

Ubiquiti Rocket AC Lite R5AC-Lite US 5GHz airMAX Basestation (2-Units) with airmMAX Sector Antenna AM-5AC21-60 21dBi 2x2 MIMO (2-Units)


Model#: R5AC-Lite+5AC21-60x2

Sku: IT1644



MSRP: $1,000.00


Out of stock

Your Price: $1,000.00


R5AC-Lite (2-Units)

The R5AC-LITE rocket ac airMAX ac BaseStation from Ubiquiti Networks uses airMAX ac technology to provide up to 450 Mbps throughput. With an outdoor UV stabilized plastic enclosure this BaseStation can be installed in some of the harshest conditions allowing for the data signal to reach greater distances. Inside the enclosure you will find a 720 MHz Atheros MIPS 74Kc processor complete with 128MB of DDR2 RAM and 16MB of NOR Flash memory for enhanced processing power to allow for a stronger more stable signal.

Advanced Software Technology

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks

Superior Processing

Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Advanced Software Technology

Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.





AM-5AC21-60 (2-Units)

The AM-5AC21-60 5GHz 22DBi airMAX ac Sector  2x2 MIMO BaseStation Sector Antenna from Ubiquiti Networks helps creating powerful point-to-point (PtP) backhaul links and point-to-multipoint (PtMP) airMAX links when paired with the RocketM5 / M5 ac BaseStation (available separately). However, it provides optimal performance with the RocketM5 ac BaseStation. The antenna has a built-in Rocket mount, so no tools are needed to install the base station.

The airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Superior Noise Immunity

Featuring reduced sidelobes and backlobes, the airMAX ac Sector Antennas are engineered to reject noise interference in co-location deployments.

Breakthrough Design and Performance

The airMAX ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

  • Pairing the sector antenna with the RocketM5 / M5 ac BaseStation lets you utilize airMAX technology. This antenna is highly resistant to noise interference in co-location deployments. The deflector-designed antenna with reduced side lobes and back lobes reject interference from other transmitters in the area, potentially on the same tower. It provides excellent gain and beam performance for high-capacity, multi-point networks.
  • Carrier-class construction and 2 x 2 dual-polarity performance
  • Provides sector-wide coverage and utilizes airMAX technology
  • Features reduced sidelobes and backlobes that reject noise interference in co-location deployments
  • Improved signal-to-noise ratio (SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM
  • Increased number of bits per second for a fixed bandwidth (or data rate)
  • High resistance to noise interference provides excellent gain and beam performance for high-capacity, multi-point networks
  • Robust design for outdoor applications
  • Provision of Rocket mount allows for tool-free installation of Rocket BaseStation

   R5AC-LITE (2-Units)

  • Outdoor UV Stabilized Plastic Enclosure
  • 720 MHz Atheros MIPS 74Kc Processor
  • 128MB DDR2 SDRAM / 16MB NOR Flash Memory
  • 1 x 10/100/1000 Mbps Network Interface
  • 2 x RP-SMA Waterproof RF Connections
  • Integrated Power, Ethernet, Signal LEDs
  • Intelligent QoS
  • High Capacity & Scalability
  • High-Speed, Carrier-Class Links
  • airMAX ac Technology



AM-5AC21-60 (2-Units)

  • Frequency Range 5.10 to 5.85 GHz
  • Gain 21 dBi
  • Hpol Beamwidth 60° (6 dBi)
  • Vpol Beamwidth 60° (6 dBi)
  • Beamwidth Electrical: 4°
  • Electrical Downtilt 2°
  • VSWR 1.5:1 (maximum)
  • Wind Survivability 125 mph (200 kph)
  • Wind Loading 88 lbf @ 125 mph (391 N @ 200 kph)
  • Polarization Dual-linear
  • Cross-Polarity Isolation 25 dB minimum
  • ETSI Specification EN 302 326 DN2
  • Mounting Universal pole mount, Rocket bracket, and weatherproof RF jumpers (included)
  • Dimensions 29.5 x 6.8 x 3.1" (75.0 x 17.3 x 7.8 cm) excluding pole mount and Rocket radio (not included)
  • Weight 10.6 lb (4.8 kg) including pole mount and excluding Rocket radio
