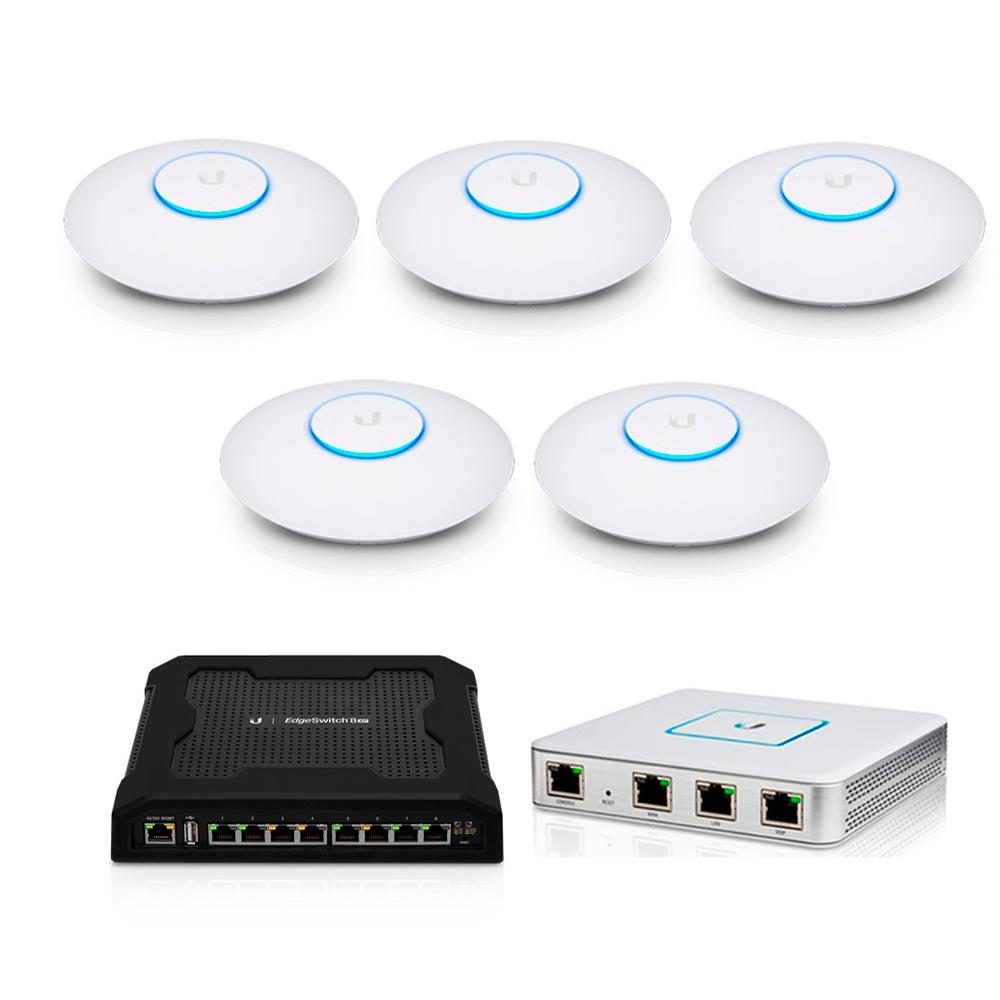

Ubiquiti UniFi AP AC LITE UAP-AC-LITE-5 Wireless AP w/ TOUGHSwitch TS-8-PRO and USG Gateway Router

UAP-AC-LITE-5-BD1

Ubiquiti
Ubiquiti UniFi AP AC LITE UAP-AC-LITE-5 802.11ac Wireless Acess Point with TOUGHSwitch TS-8-PRO PoE Switch 8-Port and USG UniFi Security Gateway Router

Model#: UAP-AC-LITE-5-BD1

Sku: IT1640.4492.736688



MSRP: $1,009.99

Out of stock

Your Price: $773.00


Ubiquiti UniFi Access Point UAP-AC-LITE-5 + ES-8XP Switch + USG

  • UAP-AC-LITE-5

The UAP-AC-LITE-5 UniFi Access Point Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 867 Mb/s in the 5 GHz radio band, and up to 300 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 2x2 MIMO technology for each band. It has a range of up to 400' and two Gigabit Ethernet ports. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall, using the included mounting hardware.

The UniFi AC Lite AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high-performance wireless networks.UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual-Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware

Dual-Radio Performance, Gigabit Speeds

The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.

  • ES-8XP

The EdgeSwitch XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.

The Ubiquiti EdgeMAX EdgeSwitch 8XP, PoE is an advanced gigabit PoE managed switch. Ubiquiti introduces the Advanced Power over Ethernet Switches, EdgeSwitch XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-to use EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.

  • USG

The UniFi Enterprise Gateway Router with Gigabit Ethernet from Ubiquiti Networks is designed to be implemented with compatible UniFi Enterprise Systems to provide routing and security to your local area network. With three Gigabit Ethernet ports and the ability to route up to 1 million packets per second this gateway is a versatile networking tool. Features such as an improved user experience and the ability to obtain an overview of your network allow you to manage nearly every aspect from mapping out subnets to provisioning additional UniFi devices. You can even create LAN & WLAN groups per UniFi device for greater control over large network deployments.

  • UniFi Security Gateway Enterprise
  • Unifi USG VPN Site-to-Site VPN Tunnel
  • Enterprise Gateway Router Gigabit
  • Advanced Security, Monitoring, and Management
  • Integrated with UniFi® Controller Software

UAP-AC-LITE-5

  • 2.4 GHz Speed 300Mbps
  • 5 GHz Speed 867Mbps
  • (1) 10/100/1000 Ethernet
  • 802.11ac Dual Radio Access Point
  • 24V Passive PoE
  • 802.11 a/b/g/n/ac Wi-Fi Standards
  • Range of up to 400'
  • UniFi Controller Software
  • Integrated Omni Antennas
  • Guest Portal/Hotspot Support
  • Passive Power over Ethernet
  • 200+ Concurrent Clients
  • Reset Button
  • CE, FCC, IC Certified

ES-8XP

  • Dimensions: 210 x 185 x 41 mm
  • Weight: 1.24 kg
  • Power Input: 110-120VAC / 210-230VAC
  • Max. Power Consumption: 150 W
  • PoE Out Voltage Range: 45-48VDC / 22-24VDC
  • Max. PoE Wattage: Per Data Port 11.5 W (24 V), 23 W (48V)
  • ESD Rating: 24 kV Air / 24 kV Contact
  • PoE: Method Passive
  • USB Port: 2.0 Type A (Reserved for Future Use)
  • Processor: MIPS 24K, 400 MHz
  • System Memory: 64 MB
  • Code Storage: 8 MB
  • Certifications: CE, FCC, IC
  • Operating Temperature: -25 to 55°C (-13 to 131° F)
  • Operating Humidity: 90% Non-Condensing
  • PoE: Configurable Per Port
  • Data Ports: Off/24V/48V
  • Management Port: Power/Link/Activity
  • Data Ports: PoE, Speed/Link/Activity
  • Management Port: (1) 10/100 Ethernet Port
  • Data Ports: (8) 10/100/1000 Ethernet Ports

USG

  • Dual-Core 500 MHz Processor
  • 2 GB On-Board Flash Memory
  • Wall Mountable Design
  • 1 x RJ-45 Serial Console Port
  • 3 x Gigabit Ethernet Ports
  • 1 million packets per second for 64-byte packets
  • 3 Gb/s total line rate for packets 512 bytes or larger
  • Integrated and managed with UniFi Controller v4.x
  • Secure off-site management and monitoring
  • CLI management for advanced users
  • Silent, fanless operation
