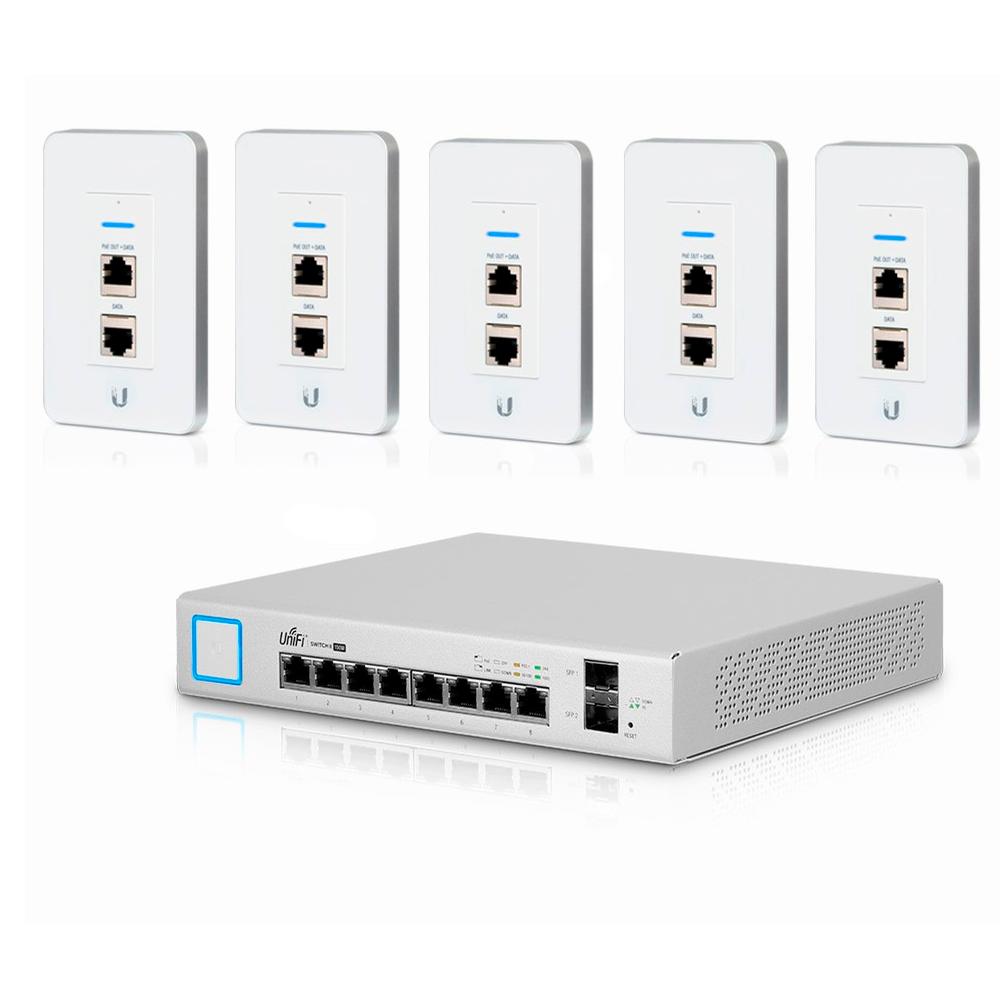

Ubiquiti UniFi In-Wall Wi-Fi AP UAP-IW-5 2.4 GHz 1dBi with Switch Managed PoE+ US-8-150W 8-Ports SFP

Model#: UAP-IW-5+US-8-150W

Sku: IT1636

MSRP: $469.00

Out of stock

Model: UAP-IW-5-US

The UAP-IW from Ubiquiti Networks is ideal for retrofitting an existing in-wall wired Ethernet jack to a wireless access point. It also provides one RJ45 data port and one PoE port to connect devices like a VoIP phone. The UAP-IW is capable of speeds of up to 150 Mbps with a range of up to 25 m (82 ft). The UAP-IW can be powered by a UniFi Switch. The UAP-IW cannot be powered by a passive PoE source such as a PoE injector or the TOUGHSwitch

  • Instant Deployment

Transform any existing Ethernet outlet into a versatile UniFi AP – no additional wiring needed.

  • Easy Installation

Upgrade any single-gang Ethernet outlet to the UniFi In-Wall Wi-Fi AP.

  • Power over Ethernet

The UniFi In-Wall Wi-Fi AP works with the UniFi Switch (24 and 48 port versions available).

  • Versatile Data and PoE Output

An integrated PoE passthrough port conveniently connects and powers a security camera, VoIP phone, or high-end AP.


Model: US-8-150W

The US-8-150W UniFi Managed PoE+ Gigabit 8 Port Switch with SFP from Ubiquiti Networks it is easy to expand the capacity and reach of an existing network. This switch features 8 Gigabit Ethernet ports along with 2 SFP ports making it easy to incorporate high speed local storage networks into the configuration. In addition to Gigabit Ethernet connectivity, the network ports support 802.3af/at PoE networking standards designed to power devices such as VoIP phones, access points, IP cameras, and more.

Designed for convenient management, the UniFi Controller software (not included) allows administrators to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

  • PoE+

The UniFi Switch models are available with 8 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.

  • Versatile Port Configuration

Eight Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

  • Wall Mounting

The included Mounting Accessories support any orientation wall-mount and desk/shelf mounting.

  • Sleek Design and Management

The compact UniFi Switch can be placed on a desktop and integrates with the UniFi Controller software for centralized management of your UniFi devices.

  • Advanced Enterprise Switching

The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.

Model: UAP-IW-5

  • 1 x 10/100 Ethernet in (rear)
  • 1 x 10/100 Ethernet data out (front)
  • 1 x PoE out (front)

Operating Bandwidth

  • 2.4 GHz 150 Mbps

Antenna Gain

  • 1 dBi

Wi-Fi Standards

  • 802.11 b/g/n

Wireless Range

  • 82.0' / 25.0 m

Supported Data Rates

  • 802.11n: 6.5 to 150 Mbps (MCS0 - MCS7, HT 20/40)
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Maximum Power Consumption

  • 6 W

Maximum TX Power

  • 17 dBm

Wireless Security

  • WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)


  • CE, FCC, IC


  • 802.1Q

Advanced QoS

  • Per-user rate limiting

Power Method

  • PoE 802.3af

Dimensions (W x H x D)

  • 2.78 x 4.51 x 1.12" / 7.06 x 11.46 x 2.84 cm


  • 4.13 oz / 117.0 g


Model:  US-8-150W

  • (8) Gigabit RJ45 Ports
  • (2) SFP Ports
  • Non-Blocking Throughput: 10 Gbps
  • Switching Capacity: 20 Gbps
  • Forwarding Rate: 14.88 Mpps
  • Maximum Power Consumption: 150W
  • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
  • Quiet, Fanless Operation
  • Rackmountable with Rack-Mount Brackets (Included)
  • Desktop-Mountable (Do not physically stack the US-8-150W.)
