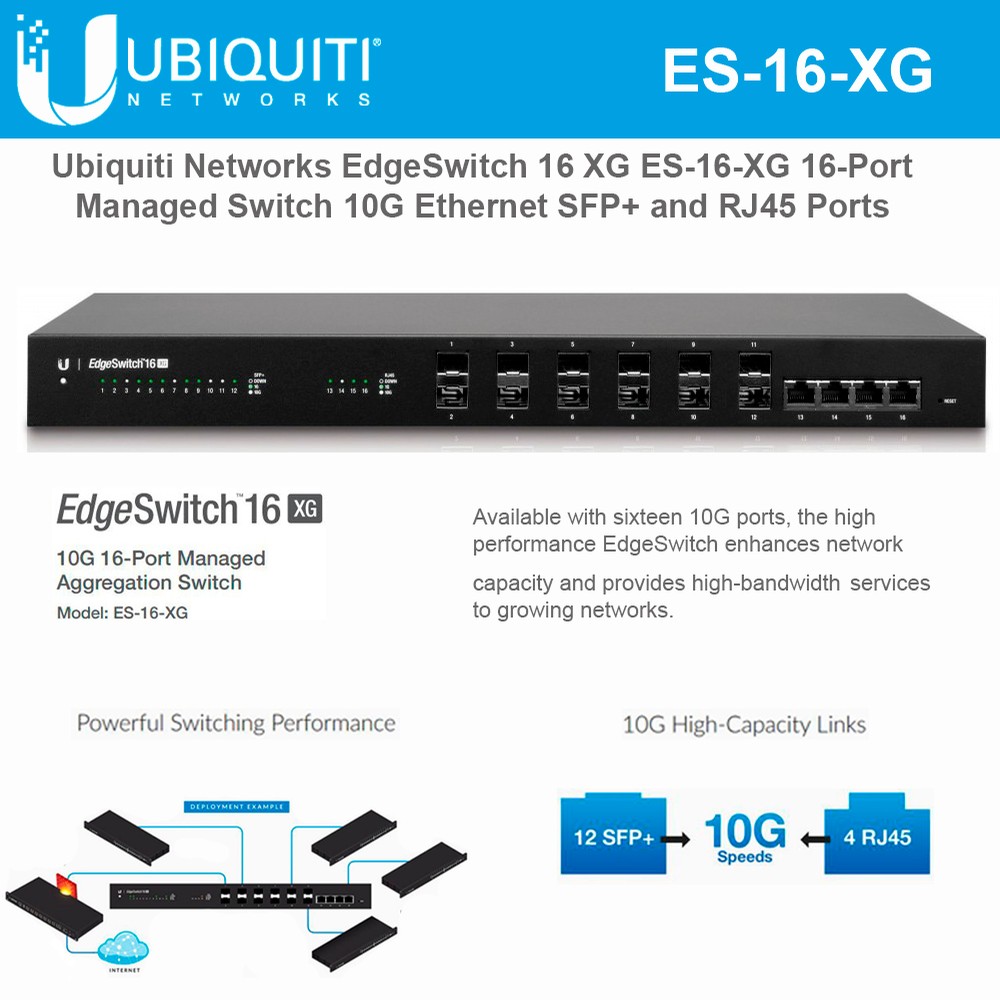

Ubiquiti Networks EdgeSwitch 16 XG ES-16-XG 16-Port Managed Switch 10G Ethernet SFP+ and RJ45 Ports

ES-16-XG

Ubiquiti
Ubiquiti Networks EdgeSwitch 16 XG ES-16-XG 16-Port Managed Switch 10G Ethernet SFP+ and RJ45 Ports


Product Highlights
  • Ubiquiti Networks EdgeSwitch 16 XG ES-16-XG 16-Port Managed Aggregation Switch 10G Ethernet SFP+ and RJ45 Ports
  • Available with sixteen 10G ports, the high-performance EdgeSwitch enhances network capacity and provides high-bandwidth services to growing networks.
  • The EdgeSwitch features 12 SFP+ ports and four RJ45 10GBASE-T ports to efficiently deliver and aggregate data at 10G speeds.
  • The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
  • For its total, non-blocking throughput, the EdgeSwitch supports up to 160 Gbps.
  • Model#: ES-16-XG

    Sku: IT1594.4105.654337



    MSRP: $789.99

    Out of stock

    Your Price: $669.00


    Model: ES-16-XG

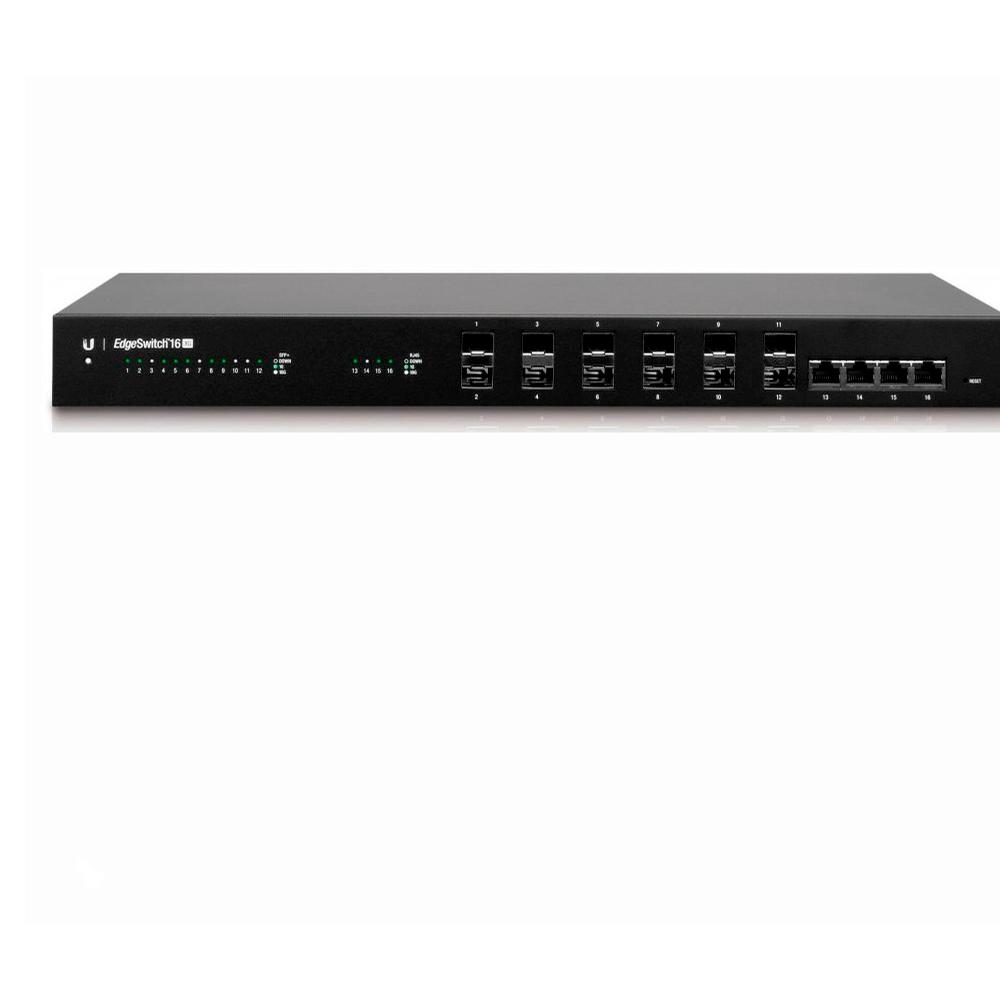

    EdgeSwitch 16 XG 10G 16-Port Managed Aggregation Switch

    The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks. The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

    The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.

    • 10G High-Capacity Links

    The EdgeSwitch features 12 SFP+ ports and four RJ45 10GBASE-T ports to efficiently deliver and aggregate data at 10G speeds.

    • Powerful Switching Performance

    The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch supports up to 160 Gbps.

    • Advanced Enterprise Switching

    The EdgeSwitch uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.

    • (12) SFP+ Ports
    • (4) 10G RJ45 Ports
    • (1) RJ45 Serial Console Port
    • Non-Blocking Throughput: 160 Gbps
    • Switching Capacity: 320 Gbps
    • Forwarding Rate: 238.10 Mpps
    • Rack Mountable with Rack-Mount Brackets (Included)
    • DC Input Option (Redundant or Stand-Alone)


    Product Includes:
    • EdgeSwitch XG
    • Power Cord
    • 2 x Rack Mount Brackets
    • 8 x Bracket Screws
    • 4 x Mounting Screws
    • 4 x Cage Nuts
    • Quick Start Guide
