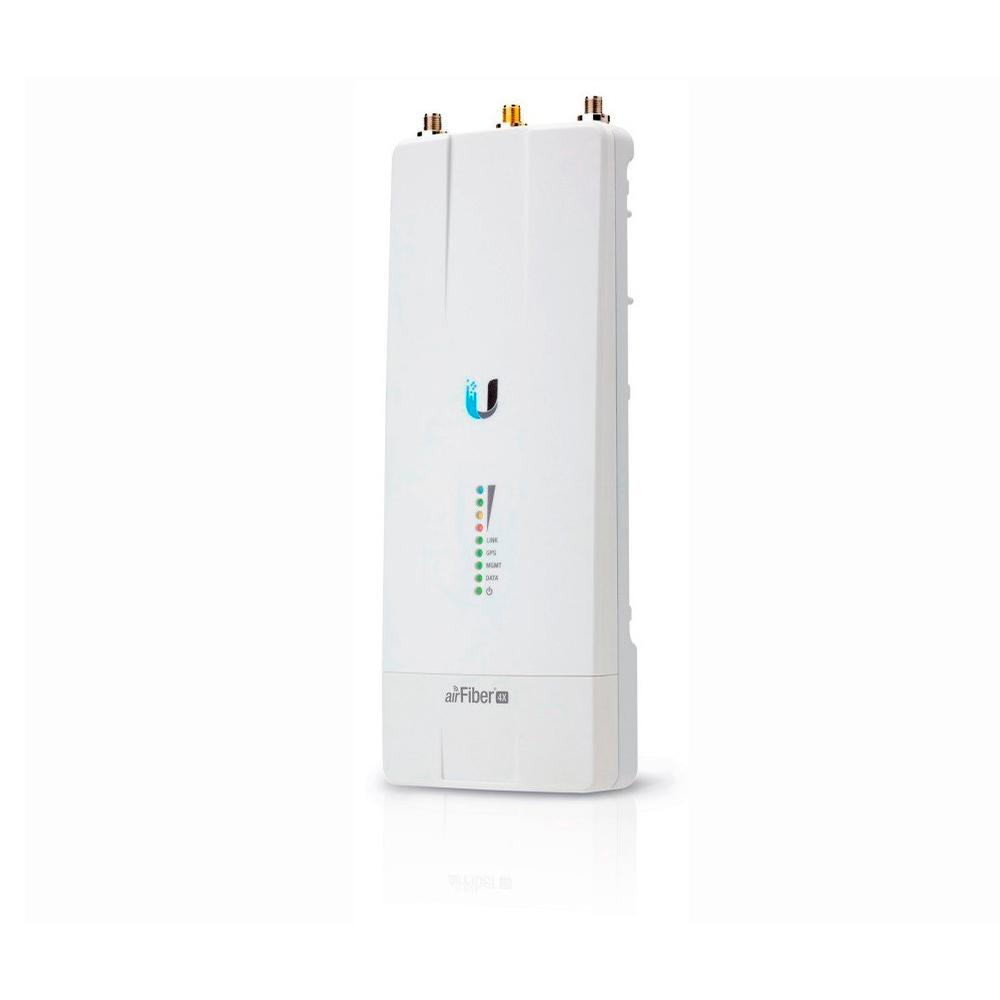

Ubiquiti airFiberX AF-4X 4 GHz Carrier Backhaul Radio PoE 500Mbps Throughput

AF-4X

Ubiquiti
Ubiquiti Networks AF-4X airFiberX 4 GHz Carrier Backhaul Radio PoE 500Mbps Throughput; (1) 10/100/1000 Ethernet Port ( Range up to 200 km)

Model#: AF-4X

Sku: IT1590.4090.650310



MSRP: $399.00

Out of stock

Your Price: $399.00


AF-4X

The airFiber AF-4X 4 GHz Carrier Backhaul Radio from Ubiquiti Networks is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 4X also allows users to customize backhaul links or upgrade existing PtP links.

The airFiber AF-4X operates using the 4 GHz frequency band and features a range of 656,168' / 200,000m. Included with this device is a GPS antenna mount, an external GPS antenna, a metal strap, two cable ties, a 24V/1A airFiber PoE adapter with a mounting bracket, and a power cord.

  • Backhaul

Deploy the 4 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs.

  • Operation in Unlicensed Bands

Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations virtually anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments.

  • Low Latency with HDD Technology

The airFiber X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.

  • Clean Power Output

Using advanced digital signal processing, the innovative airFiber X radio design has an ultra -clean transmitter output, reducing broadband noise, facilitating co-location, and enabling higher-order modulations like 256QAM for greater throughput.

Product Highlights:

  • Range: up to 124 mi (200 km)
  • Up to 500+ Mbps Real Throughput
  • Full Band Certification including DFS
  • Operates using the 4 GHz Band
  • Hybrid Division Duplexing (HDD)
  • Low Latency
  • Enhanced Spectral Efficiency
  • Operation in Unlicensed Bands
  • Co-Location
  • GPS Sync & Clean Power Output
  • (1) 10/100/1000 Ethernet Port
  • (1) 10/100 Ethernet Port
  • 24V, 1A PoE Gigabit Adapter (Included)
  • Passive PoE

Specifications:

  • RF Connectors: 2 x RP-SMA Weatherproof (CH0, CH1)/1 x SMA Weatherproof (GPS)
  • GPS Antenna: External, Magnetic Base
  • Power Supply: 24 V, 1 A PoE Gigabit Adapter (included)
  • Power Method: Passive Power over Ethernet
  • Mounting: airFiber X Mount (Rocket Mount compatible) / GPS Pole Mount (included)
  • Certifications: CE, FCC, IC

Networking Interfaces:

  • Data Port: 1 x 10/100/1000 Ethernet Port
  • Management Port: 1 x 10/100 Ethernet Port

System:

  • Processor: INVICTUS IC
  • Maximum Throughput: 500+ Mbps
  • Maximum Range: 656,168' / 200,000 m
  • Encryption: 128-bit AES
  • Operating System: airOS F
  • Wireless Modes: Master/Slave

Dimensions & Weight:

  • Dimensions: 8.82 x 3.32 x 1.89" / 224.03 x 84.33 x 48.01 mm
  • Weight: 0.77 lb / 0.35 kg

Packaging Info:

  • Package Weight     2.55 lb
  • Box Dimensions (LxWxH)     10.4 x 4.4 x 4.3"
