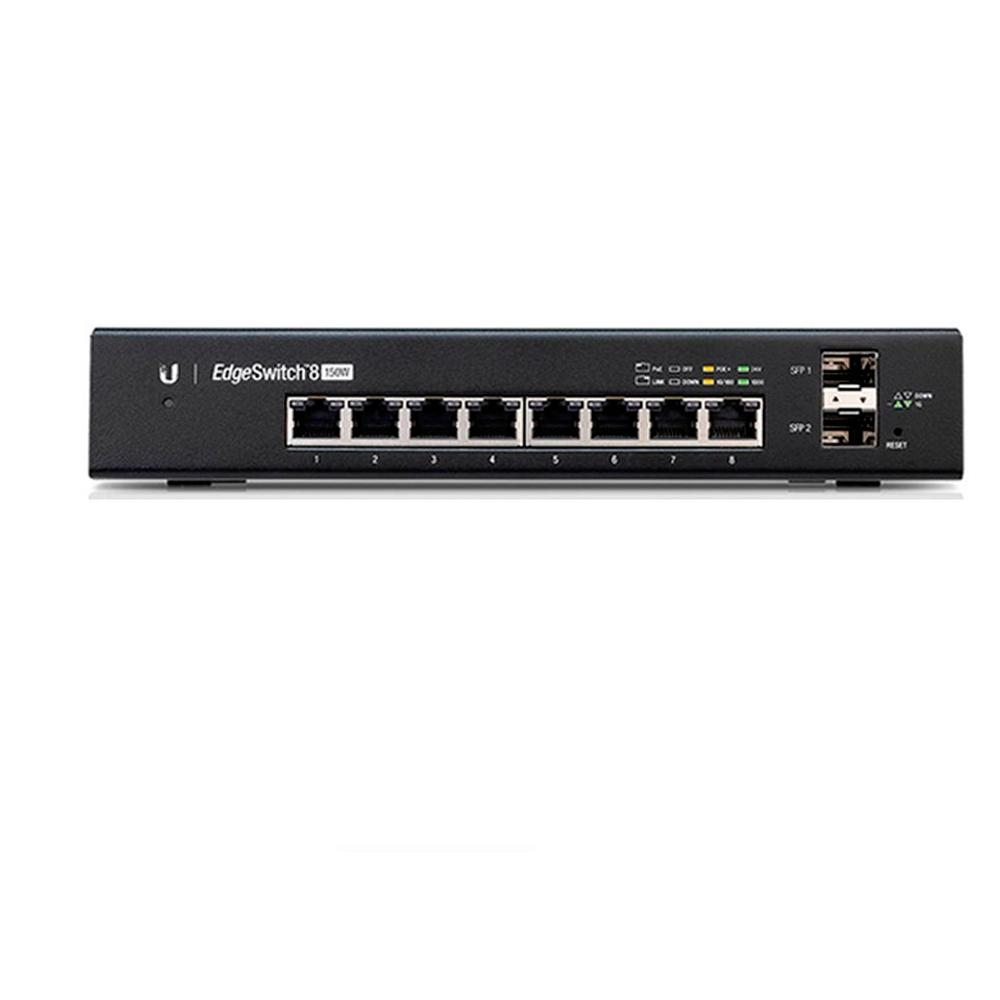

Ubiquiti ES-8-150W Managed PoE+ Gigabit Switch with SFP

Product Highlights
  • • (8) GbE RJ45 ports with 24V passive PoE
  • • (2) SFP ports
  • • 150W total PoE availability
  • • Desktop-mountable
  • Model#: ES-8-150W

    Sku: IT1579

    MSRP: $309.99

    In Stock

    Your Price: $225.00

    Model: ES-8-150W

    Managed PoE+ Gigabit Switch with SFP

    The fanless EdgeSwitch™ 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.

    Gigabit Connectivity

    The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.

    Convenient PoE+ Support

    Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.

    Optical Fiber Backhaul

    The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.

    Powerful Performance

    The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.

    Switching Capacity

    The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

    Advanced UI

    The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.



    Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
    Weight Without Mount Brackets 1.72 kg (3.79 lb), With Mount Brackets 1.8 kg (3.96 lb)
    Total Non-Blocking Throughput 10 Gbps
    Switching Capacity 20 Gbps
    Forwarding Rate 14.88 Mpps
    Max. Power Consumption Includes PoE Output 150W, Excludes PoE Output 20W
    Power Method AC 100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input
    Power Method DC 42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input
    Power Supply AC/DC, Internal, 150W DC
    LEDs Per Port RJ45 Data Ports PoE, Speed/Link/Activity
    SFP Data Ports Speed/Link/Activity
    Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
    Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
    Certifications CE, FCC, IC
    Wall-Mount Yes
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Operating Temperature Internal AC/DC @ 150W -25 to 45° C (-13 to 113° F)
    Operating Temperature Internal AC/DC @ 100W -25 to 55° C (-13 to 131° F)
    Operating Temperature External DC -25 to 60° C (-13 to 140° F)
    Operating Humidity 5 to 95% Noncondensing
    Shock and Vibration ETSI300-019-1.4 Standard
