UAP-IW-5

Ubiquiti

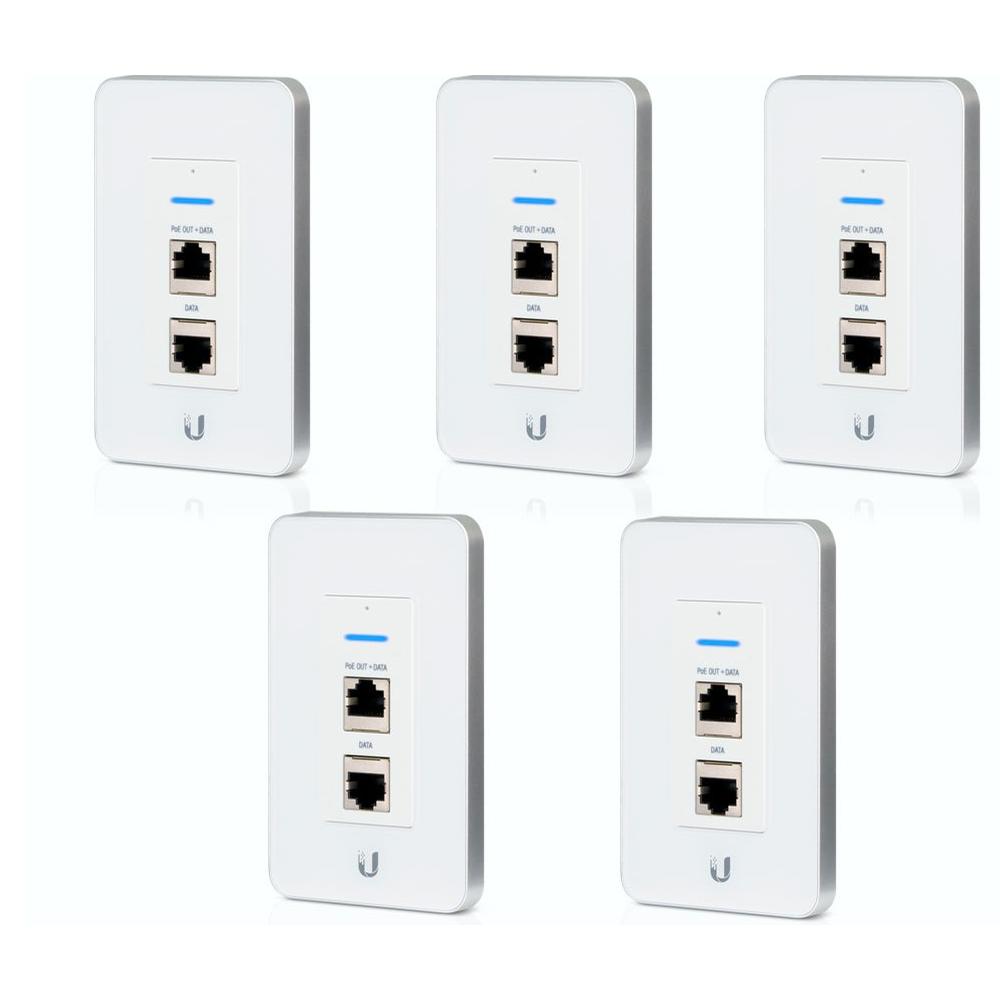

Ubiquiti Networks UniFi In-Wall Wireless Access Point 2.4GHz UAP-IW-5 802.11b/g/n PoE


Model#: UAP-IW-5

Sku: IT1570



MSRP: $270.00


Out of stock

Model: UAP-IW-5

The UAP-IW-5 is ideal for retrofitting an existing in-wall wired Ethernet jack to a wireless access point. It also provides one RJ45 data port and one PoE port to connect devices like a VoIP phone. The UAP-IW is capable of speeds of up to 150 Mbps with a range of up to 25 m (82 ft). The UAP-IW can be powered by a UniFi Switch. The UAP-IW cannot be powered by a passive PoE source such as a PoE injector or the TOUGHSwitch.

  • Instant Deployment

Transform any existing Ethernet outlet into a versatile UniFi AP – no additional wiring needed.

  • Easy Installation

Upgrade any single-gang Ethernet outlet to the UniFi In-Wall Wi-Fi AP.

  • Power over Ethernet

The UniFi In-Wall Wi-Fi AP works with the UniFi Switch (24 and 48 port versions available).

  • Versatile Data and PoE Output

An integrated PoE passthrough port conveniently connects and powers a security camera, VoIP phone, or high-end AP.

Outlets

  • 1 x 10/100 Ethernet in (rear)
  • 1 x 10/100 Ethernet data out (front)
  • 1 x PoE out (front)

Operating Bandwidth

  • 2.4 GHz150 Mbps

Antenna Gain

  • 1 dBi

Wi-Fi Standards

  • 802.11 b/g/n

Wireless Range

  • 82.0' / 25.0 m

Supported Data Rates

  • 802.11n: 6.5 to 150 Mbps (MCS0 - MCS7, HT 20/40)
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Maximum Power Consumption

  • 6 W

Maximum TX Power

  • 17 dBm

BSSID

  • Up to 4 per radio

Wireless Security

  • WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Certifications

  • CE, FCC, IC

VLAN

  • 802.1Q

Concurrent Clients

  • 100+

Power Method

  • PoE 802.3af

Operating Environment

  • Temperature: 14 to 158°F / -10 to 70°C
  • Humidity: 5 to 95% non-condensing

Dimensions (W x H x D)

  • 2.78 x 4.51 x 1.12" / 7.06 x 11.46 x 2.84 cm

Weight

  • 4.13 oz / 117.0 g
