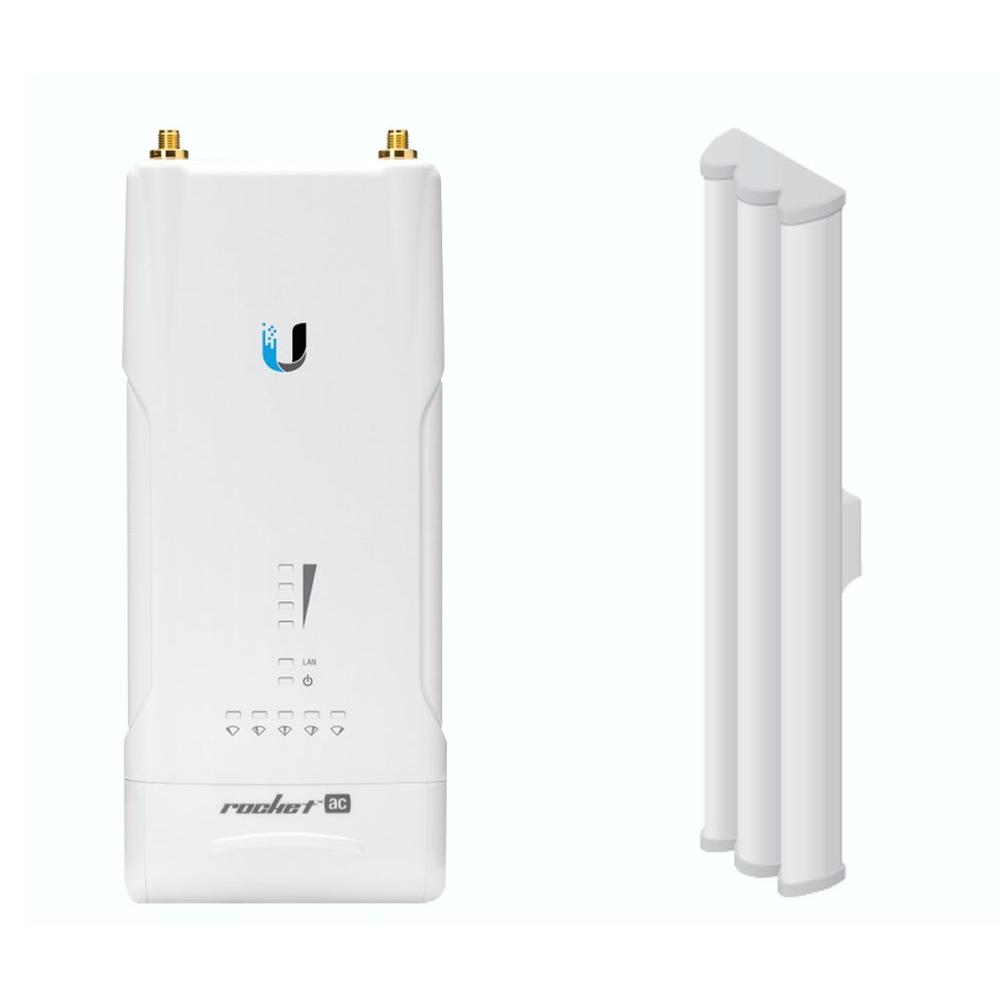

Ubiquiti Rocket AC PtMP R5AC-PTMP airMAX Basestation 5GHz with Sector Antenna 5GHz AM-5G19-120 19dBi 5GHz

R5AC-PTMP+5G19-120

Ubiquiti
Ubiquiti Rocket AC PtMP R5AC-PTMP airMAX Basestation 5GHz with Sector Antenna 5GHz AM-5G19-120 19dBi 5GHz

Model#: R5AC-PTMP+5G19-120

Sku: IT1566.3753.587719



MSRP: $358.00

Out of stock

Your Price: $358.00


Model: R5AC-PTMP

  • The R5AC-PTMP rocket ac airMAX ac BaseStation from Ubiquiti Networks uses airMAX ac technology to provide up to 450 Mbps throughput. With an outdoor UV stabilized plastic enclosure this BaseStation can be installed in some of the harshest conditions allowing for the data signal to reach greater distances. Inside the enclosure you will find a 720 MHz Atheros MIPS 74Kc processor complete with 128MB of DDR2 RAM and 16MB of NOR Flash memory for enhanced processing power to allow for a stronger more stable signal. Ports on the BaseStation include one Gigabit Ethernet port and two waterproof RP-SMA RF connections to prevent against water damage.

Model: AM-5G19-120

  • The AM-5G19-120 AirMAX 5 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 19 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

Model: R5AC-PTMP

  • Networking Interface: (1) 10/100/1000 Ethernet Port
  • RF Connectors: (2) RP-SMA (Waterproof)
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Max. Power Consumption: 8.5W
  • Enclosure: Outdoor UV Stabilized Plastic
  • Operating Frequency: Worldwide: 5470 - 5875 MHz  /  USA: 5725 - 5850 MHz
  • Certifications: CE, FCC, IC



Model: AM-5G19-120

  • Frequency Range: 5.10-5.85GHz

  • Gain: 18.6-19.1dBi

  • Polarization: Dual Linear

  • Cross-polarization Isolation: 28dB min

  • H-Pol beamwidth (6 dB): 123 deg

  • V-Pol beamwidth (6 dB): 123 deg

  • Elevation Beamwidth (6dB): 4 deg

  • Electrical Downtilt: 2 deg

  • ETSI Specification: EN 302 326 DN2
