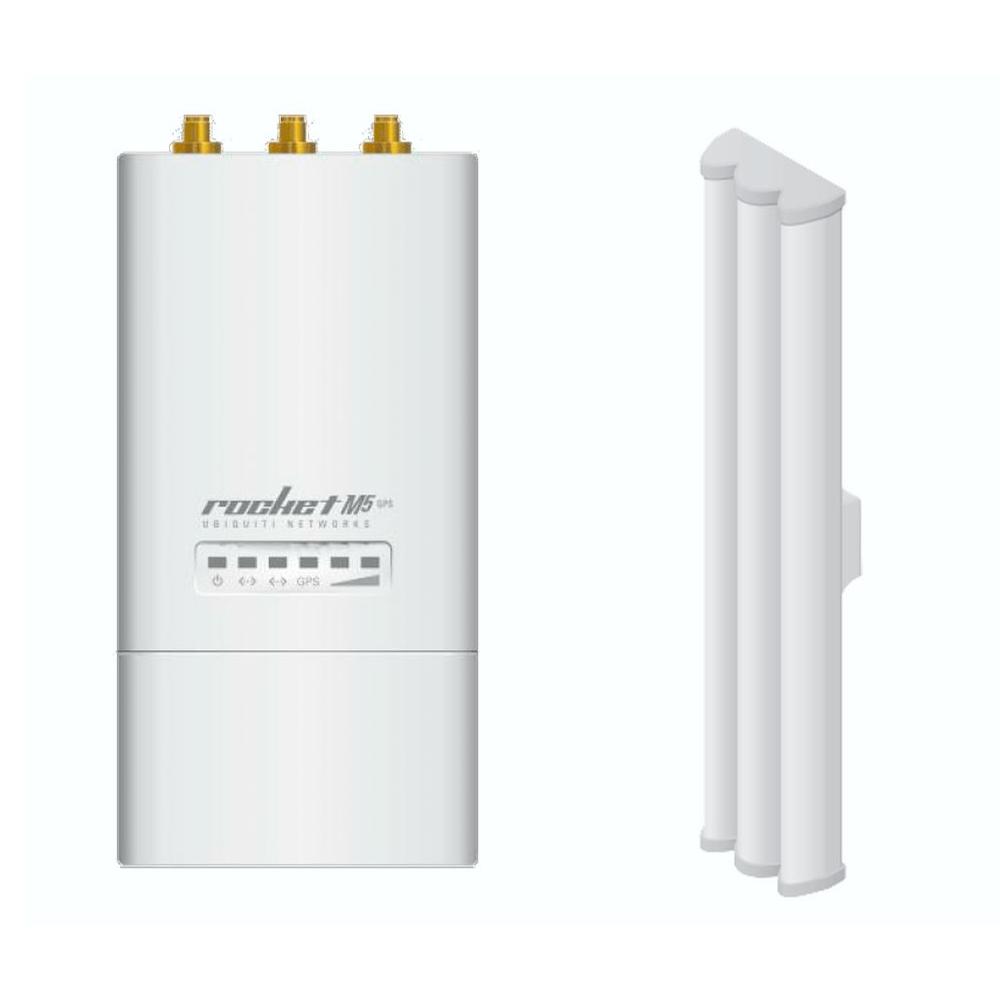

Ubiquiti RocketM5 GPS RM5-GPS Carrier Class airMAX BaseStation with airMAX Sector Antenna AM-5G19-120 19 dBi 120 degree

RM5-GPS+AM-5G19-120

Ubiquiti
Ubiquiti RocketM5 GPS RM5-GPS Carrier Class airMAX BaseStation with airMAX Sector Antenna AM-5G19-120 19 dBi 120 degree

Model#: RM5-GPS+AM-5G19-120

Sku: IT1564.3751.586656



MSRP: $349.00

Out of stock

Your Price: $349.00


Model: RM5-GPS

The Ubiquiti Rocket M5 has the versatility to give network architects unparalleled flexibility and convenience. The Rocket M5 is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. The M5 features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCP/IP). The M5 can be paired with your choice of AirMax BaseStation or Ubiquiti Rocket Antennas. The Ubiquiti Rocket M5 units have integrated Ubiquiti AirSync technology. AirSync enhances the hardware and software of Ubiquiti Rocket M to utilize GPS signals for precision timing.

  • Reporting: AirOS was upgraded to take full advantage of the new GPS hardware in Ubiquiti Rocket M GPS units; easily manage/monitor GPS satellite signals.
  • No Co-location Interference: Synchronized transmission among Ubiquiti Rocket M GPS powered BaseStations effectively eliminates co-location interference.
  • External GPS Antenna: Included weatherproof external GPS Antenna (Ubiquiti Rocket M GPS).
  • Two Ethernet Ports: Second Ethernet port (only Ubiquiti Rocket M GPS) capable of providing power to a secondary device using PoE.
  • Channel Re-use: Frequency reuse for increased scalability.





Model: AM-5G19-120

 The AM-5G19-120 AirMAX 5 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 19 dBi. It delivers 2x2 MIMO performance and supports airMAX technology,which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.



  • Intelligent QoS

Priority is given to voice/video for seamless streaming

  • Scalability

High capacity and scalability

  • Long Distance

Capable of high-speed, carrier-class links Up to 100 airMAX clients can be connected to an airMAX sector antenna

RM5-GPS

  • Networking Interface: 2 x 10/100 BASE-TX (Cat. 5,RJ-45) Ethernet
  • Wireless Approvals: FCC Part 15.247, IC RS210, CE
  • RoHS Compliance: YES
  • RF Connector: 2 x RP-SMA and 1 x SMA (Waterproof)
  • Max Power Consumption: 8 Watts
  • Power Supply: 24V, 1A POE Supply included
  • Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
  • Enclosure Characteristics: Outdoor UV Stabilized Plastic

AM-5G19-120

  • Frequency Range: 5.10-5.85GHz

  • Gain: 18.6-19.1dBi

  • Polarization: Dual Linear

  • Cross-polarization Isolation: 28dB min

  • H-Pol beamwidth (6 dB): 123 deg

  • V-Pol beamwidth (6 dB): 123 deg

  • Elevation Beamwidth (6dB): 4 deg

  • Electrical Downtilt: 2 deg

  • ETSI Specification: EN 302 326 DN2
