RocketM5+AM-5G19-120

Ubiquiti

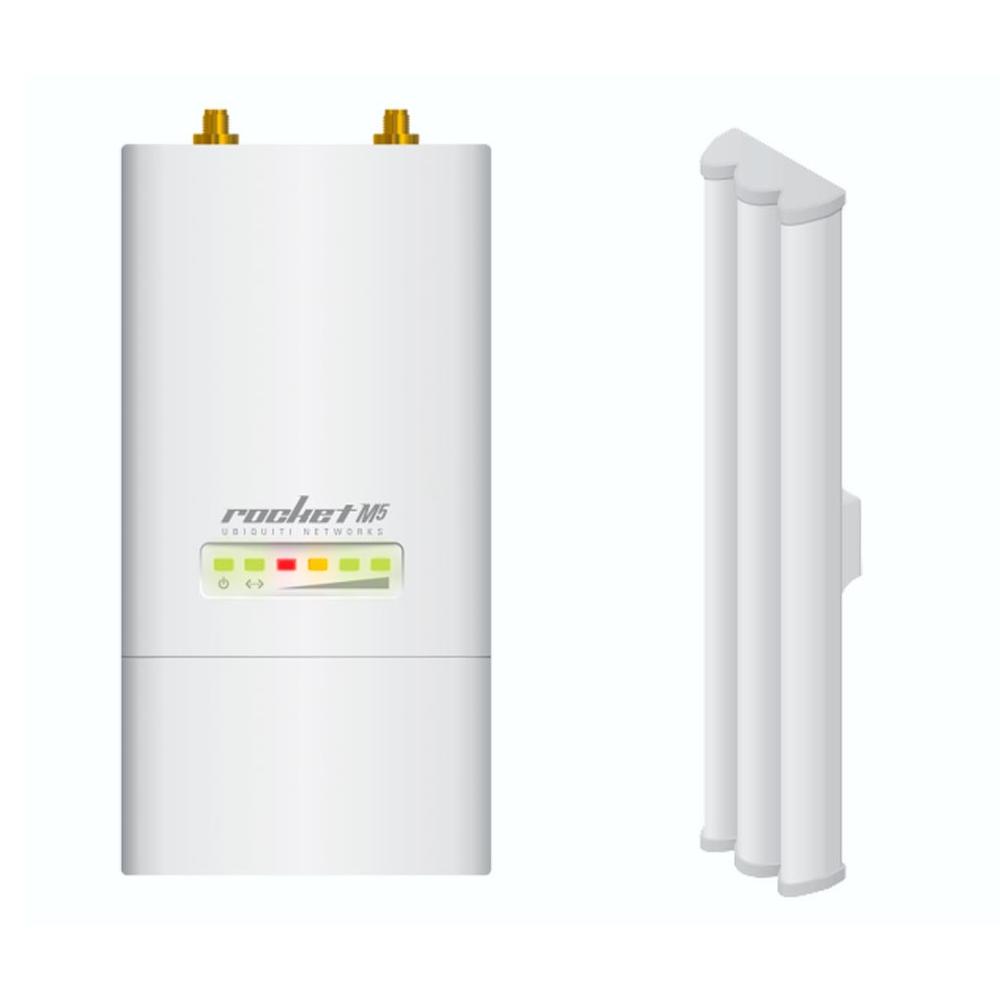

Ubiquiti airMAX RocketM5 BaseStation 5GHz 150Mbps + AM-5G19-120 5GHz 19 dBi 2x2MIMO Sector Antenna


Model#: RocketM5+AM-5G19-120

Sku: IT1563

Out of stock

Your Price: N/A


Model: RocketM5

The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance 50+km and breakthrough speed 150+Mbps real TCPI/IP. The device was specifically designed for outdoor PtP bridging and PTMP airMAX base-station applications.

Rocket M and airMAX basestation / Rocket antennas have been designed to seamlessly work together. Installing Rocket M on airMAX basestation / Rocket antennas requires no special tools -- you simply snap it into place with the mount provided with the antennas.

+

Model: AM-5G19-120

The AM-5G19-120 AirMAX 5GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 19 dBi. It delivers 2x2 MIMO performance and supports airMAX technology.

  • The AM-5G19 is designed to work with the Rocket M5, with a 120° beamwidth and 19dBi gain.

Model: RocketM5

  • Operation mode: AP, Client, WDS
  • Frequence: 5,47 - 5,825 GHz
  • DHCP: yes
  • Transmission speed: 150 Mbps
  • Standards: 802.11a/n
  • Chipset Atheros
  • Output for an external: antenna 2x rev. SMA male
  • TX Power regulation: yes
  • Sensitivity: -96 dBm
  • Modulation: OFDM
  • Encryption: WEP 64/128/152, WPA, WPA2, 802.1X
  • LAN: port 1x RJ45 10/100 Mbps
  • Default IP: 192.168.1.20
  • Default name: ubnt
  • Default password: ubnt



+

Model: AM-5G19-120

  • Frequency Range: 5.10-5.85GHz
  • Gain: 18.6-19.1dBi
  • Polarization: Dual Linear
  • Cross-polarization Isolation: 28dB min
  • H-Pol beamwidth (6 dB): 123 deg
  • V-Pol beamwidth (6 dB): 123 deg
  • Elevation Beamwidth (6dB): 4 deg
  • Electrical Downtilt: 2 deg
  • ETSI Specification: EN 302 326 DN2
