ES-12F

Ubiquiti


Ubiquiti Networks EdgeSwitch 12 Fiber ES-12F Managed Network Gigabit Fiber Switch 16Gbps


Product Highlights
  • Ubiquiti EdgeSwitch 12F Managed Gigabit Fiber Switch
  • The EdgeSwitch Fiber is an aggregation switch that offers robust performance, low latency, and intelligent switching for growing networks.
  • or fiber connectivity, the EdgeSwitch Fiber features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.
  • The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps.
  • The EdgeSwitch Fiber uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.

    • Model#: ES-12F

    Sku: IT1562



    MSRP: $289.99


    Out of stock

    Model: ES-12F

                                         EdgeSwitch 12 Fiber

                                                   Managed Gigabit Fiber Switch

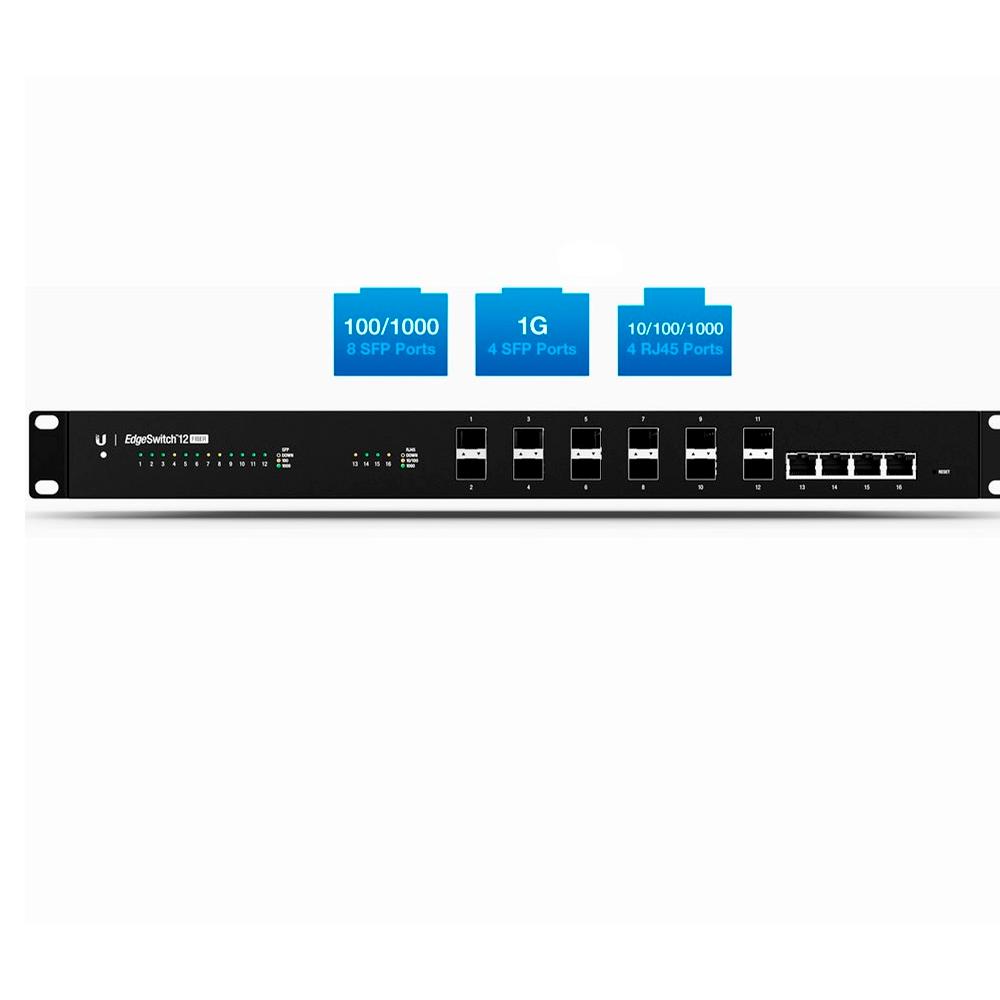

    The Ubiquiti EdgeSwitch ES-12F is a 12-Port Fiber enabled Gigabit Switch, with 12 SFP ports and 4 Gigabit copper ports. The removable rack ears allow flexibility for you to rack mount or set on a desktop.

    The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without packet loss. For it's total, non-blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps. It oalso features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.



    • Gigabit Connectivity

    For fiber connectivity, the EdgeSwitch Fiber features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.

    • Powerful Switching Performance

    The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps.

    • Advanced Enterprise Switching

    The EdgeSwitch Fiber uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.

    Model: ES-12F

    • Ports

    (12) Gigabit SFP Ports

    (4) Gigabit RJ45 Ports

    • Maximum AC Power Consumption:

    56W


    • Total Non-Blocking Throughput:

    16 Gbps

    • Switching Capacity:

    32 Gbps

    • Ethernet Networking Interfaces:

    8 x 100/1000 Mbps SFP Ethernet Ports
    4 x 1000 Mbps SFP Ethernet Ports
    4 x 10/100/1000 Mbps RJ45 Ethernet Ports

    • Management Interface:

    1 x RJ45 Serial port, Ethernet In/Out Band

    • Certifications:

    CE, FCC, IC

    • Rackmount:

    Yes, 1U High
