UAP-AC-EDU

Ubiquiti

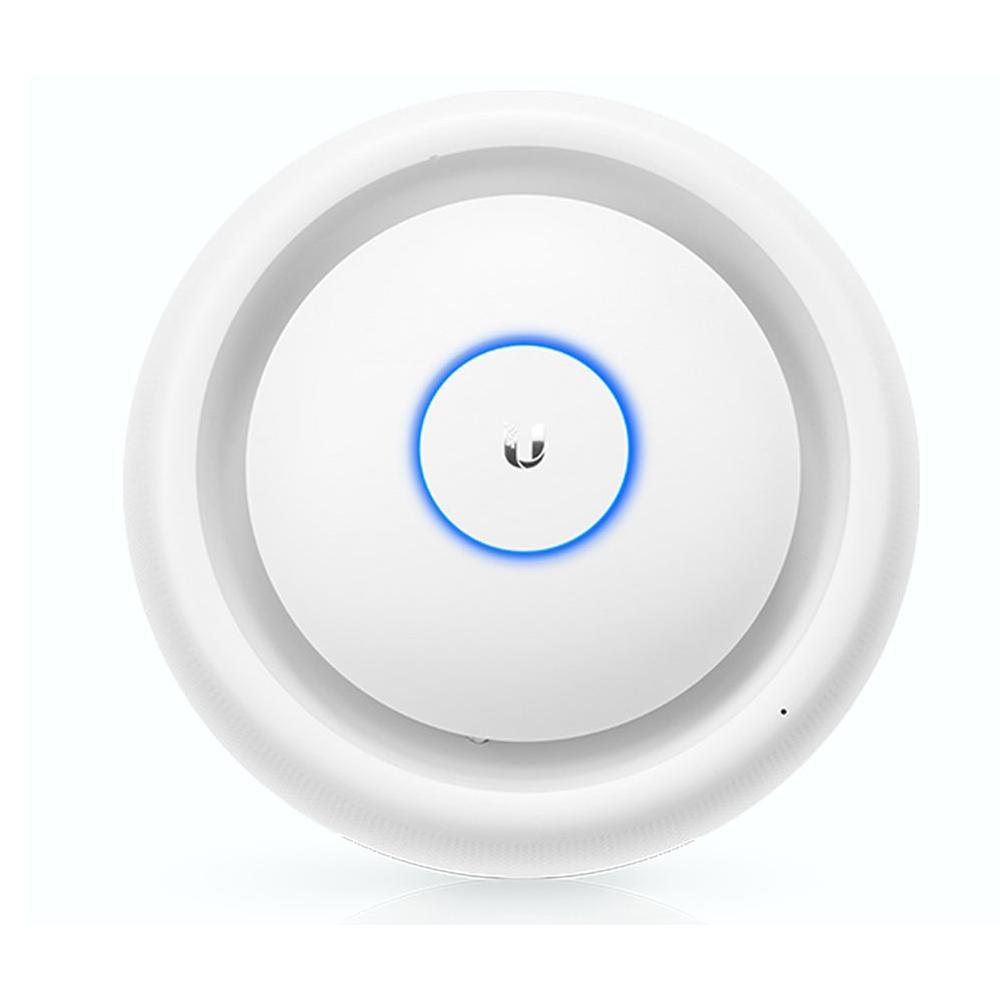

Ubiquiti UniFi UAP-AC-EDU 802.11ac Dual Radio Access Point 5GHz Wi-Fi System


Model#: UAP-AC-EDU

Sku: IT1556



MSRP: $399.00


Out of stock

The UAP-AC-EDU (US VERSION) UniFi Access Point Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 3 x 3 MIMO technology for each band. It has a range of up to 400' and one Gigabit Ethernet port. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. An integrated loudspeaker provides the ability to conduct public announcements via Wi-Fi throughout large campus environments.

The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

  • Wi-Fi 802.11ac MIMO Technology

The 802.11ac MIMO Technology offers Gigabit speeds and range up to 400'.

  • WLAN Groups

The UniFi controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.

  • UniFied Wi-Fi and Public Address System Integration

Make announcements over Wi-Fi — no separate hardware needed.

  • Advanced Acoustic Performance

The UniFi AC EDU AP provides high-quality sound with accurate voice reproduction.

  • Dual-Radio 3x3 MIMO

The UniFi AC EDU AP supports simultaneous dual-band, 3x3 MIMO technology in the 2.4 and 5 GHz radio bands for up to 1750 Mbps.

  • Mobile Announcement App

Broadcast announcements with clarity from your iOS or Android-based device using our mobile app.

  • Networking Interface: 1 x 10/100/1000 Ethernet ports
  • Button: Reset
  • Antennas: 3 x Dual-band antennas
    2.4 GHz: 3 dBi
    5 GHz: 6 dBi
  • Wi-Fi Standards: 802.11a/b/g/n/ac
  • Power Method: Passive Power over Ethernet (48 V)
    803.2at Supported
    (Supported Voltage Range: 44 to 57 VDC)
  • Power Supply: 48 V, 0.5 A PoE Gigabit adapter
  • Maximum Power Consumption: 20 W
  • Maximum TX Power: 2.4 GHz: 22 dBm
    5 GHz: 22 dBm
  • BSSID: Up to 4 per radio
  • Power Save: Supported
  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  • Certifications: CE, FCC, IC
  • Mounting: Wall/Ceiling (kits included)
