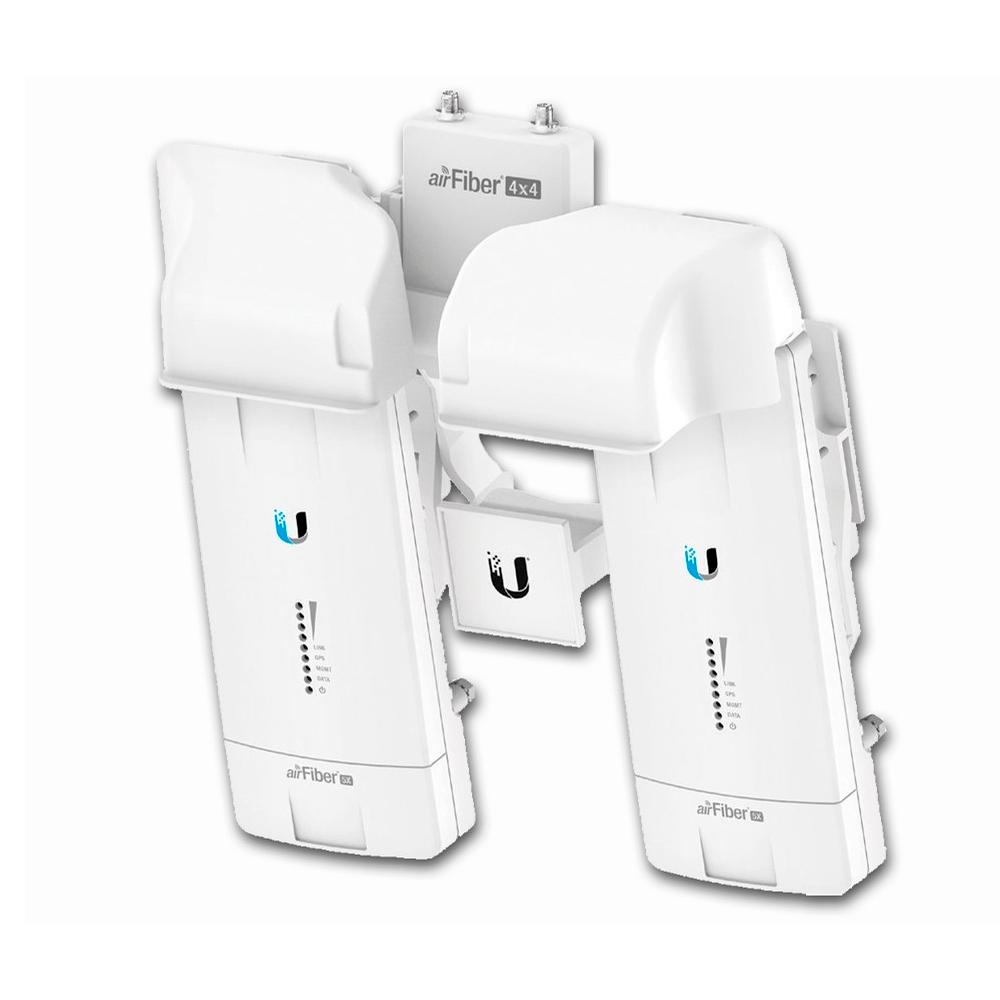

airFiber NxN Scalable airFiber MIMO Multiplexer
Combine multiple airFiber X radios on a single dish antenna for superior noise immunity performance, redundancy, and multi-Gigabit Point-to-Point (PtP) throughput.
The airFiber NxN is a thoughtfully engineered MIMO multiplexer that increases the amazing throughput of your airFiber link by up to 400%, while simultaneously establishing redundancy without the need of additional antennas. The airFiber NxN is a scalable MIMO multiplexer that combines multiple airFiber 5X radios on a single dish antenna for superior noise immunity performance, redundancy, and multi-Gigabit throughput. Upgrading a 5 GHz airMAX or airFiber link is fast and easy. simply attach the airFiber NxN to the fast-mount on the antenna and connect the RF cables.
Using a common GPS timing reference, the airFiber X radios work cohesively to deliver powerful, multi-Gigabit bridging performance for PtP links.
Quickly mount multiple airFiber X radios on existing airFiber dish antennas for Plug and Play installation. You can use radio channels of different sizes – even adjacent channels with no guard band – and place them anywhere within the radio band.
The airFiber NxN Multiplexer can be attached to most 5 GHz airFiber X or RocketDish™ antenna models. For any other antenna configuration, you can mount the airFiber NxN Multiplexer on a pole.
Mounting multiple airFiber X radios on a single dish antenna maximizes throughput and capacity in a clean, compact tower footprint, minimizing tower costs.
Multiple airFiber X radios with multiple carriers on multiple frequency bands provide the ultimate noise immunity and link redundancy performance.
The EdgePoint™ provides powerful configuration features, including radio-link load balancing and advanced reliability for optical fiber deployments.
• Redundant link: Up to 1
• Aggregate throughput: 1+ Gbps
• Dimensions: 197.5 x 240.0 x 103.2 mm (7.78 x 9.48 x 4.06")
• Weight: 0.4 kg (0.8 lb)
• RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1) ; (4) RP-SMA Weatherproof (A0, A1, B0, B1)
• Cable Loss: 4.1 dB
• Supported airFiber X Radio: AF-5X
• Multiplex MIMO: 2 x (2x2)
• Mounting: airFiber X/Rocket Mount Compatible
• (1) AF-MPx4 airFiber NxN Multiplexer
• (1) 4x4 Radio Bracket
• (2) Protective Shrouds (left and right)
• (2) M4x12 Screws
• (1) Quick Start Guide
