POE-54V-80W

Ubiquiti

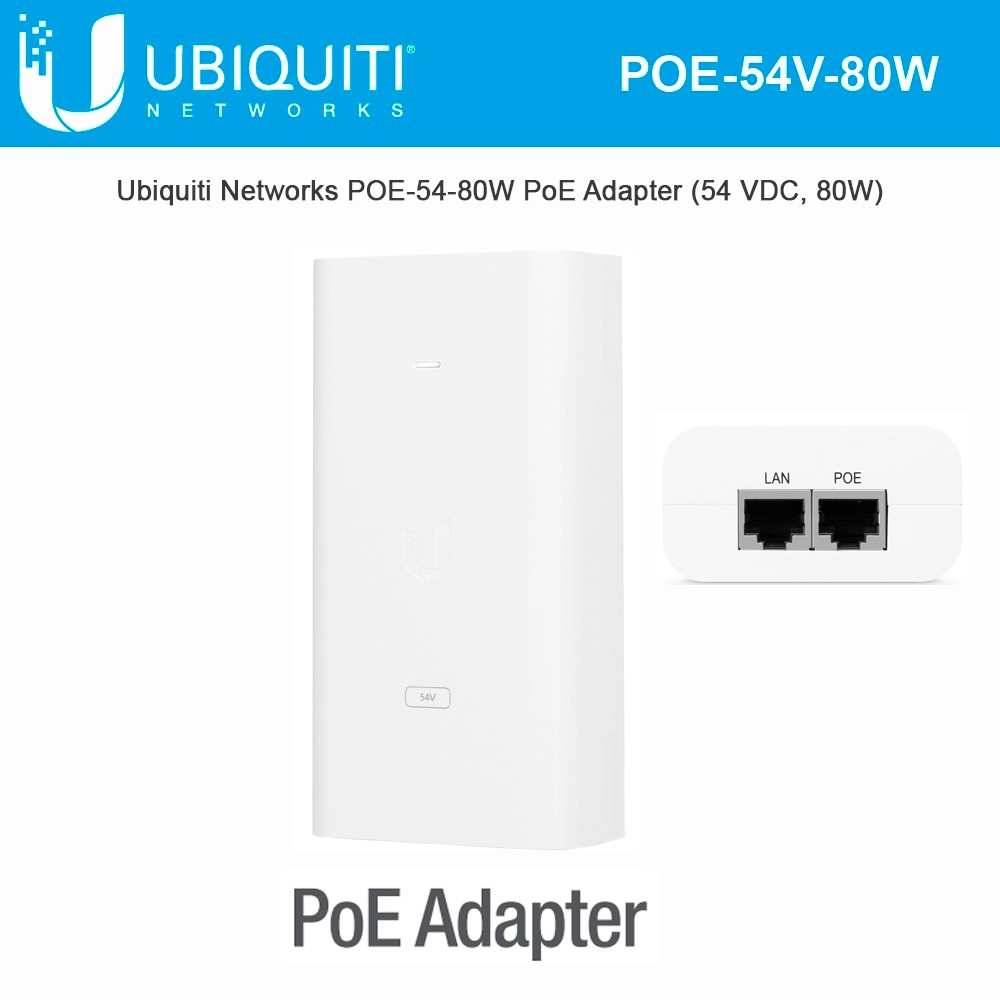

Ubiquiti POE Adapter POE-54V-80W PoE injector 54VDC 80W Ubiquiti EdgePoint EP-R6, EP-R8 and EP-S16


Model#: POE-54V-80W

Sku: IT1539



MSRP: $49.99


Out of stock

Model: POE-54V-80W

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices.

  • Provides Earth Grounding and Surge Protection
  • Helps Protect Against ESD Events
  • Powers Ubiquiti® PoE Devices

Dimensions

  • 123 x 65 x 34 mm

Weight

  • 299 g

Output Voltage

  • 54VDC @ 1.5A

LAN Activity Indicator

  • No

Gigabit LAN Port

  • Yes

Remote Reset Capability

  • No

Reset Button

  • 100-240AC @ 50/60Hz

Input Voltage

  • 100-240AC @ 50/60Hz

Input Current

  • 0.8A @ 120VAC
  • 0.4A @ 240VAC

Inrush Current

  • <80A Peak @ 120VAC,
  • <120A Peak @ 230VAC

Efficiency

  • 87+%

Output Ripple

  • 1% Max

Switching Frequency

  • 100 kHz Max

Line Regulation

  • ± 1%

Load Regulation

  • ± 3%

Operating Temperature

  • 0 to 40° C (32 to 104° F)

Storage Temperature

  • -30 to 70° C (-22 to 158° F)

Operating Humidity

  • 35 to 95% Noncondensing

AC Connector

  • IEC-320 C6

Data IN / POE

  • RJ45 Shielded Socket

Clamping Protection

  • 11V Data, 60V Power

Max. Surge Discharge

  • 1500A (8/20 µs) Power

Peak Pulse Current

  • 36A (10/1000 µs) Data

Compliance

  • IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B AC Cable with Earth Ground RCM
