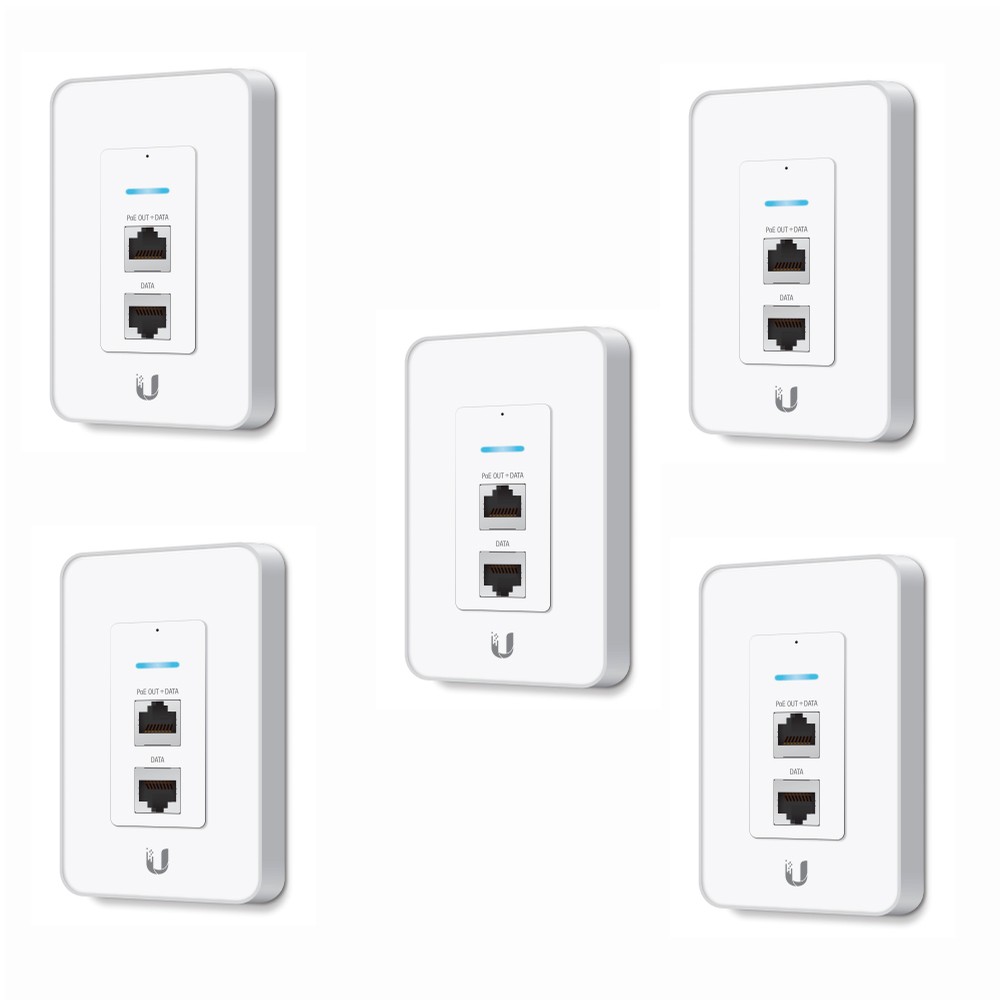

Ubiquiti Networks UniFi In-Wall Wireless Access Point 2.4GHz UAP-IW-5-US 802.11n

UAP-IW-5-US

Ubiquiti
Ubiquiti Networks UniFi In-Wall Wireless Access Point 2.4GHz UAP-IW-5-US 802.11n


Product Highlights
  • Ubiquiti Networks UniFi In-Wall Wireless Access Point 2.4GHz UAP-IW-5-US 802.11n (QNTY: 5)
  • The UAP-IW-US is ideal for retrofitting an existing in-wall wired Ethernet jack to a wireless access point. It
  • It also provides one RJ45 data port and one PoE port to connect devices like a VoIP phone. The UAP-IW is capable of speeds of up to 150Mbps with a range of up to 25m (82ft).
  • Instant Deployment: Transform any existing Ethernet outlet into a versatile UniFi AP
  • Power over Ethernet: The UniFi In-Wall Wi-Fi AP works with a UniFi Switch or any third-party, 802.3af PoE switch
  • Model#: UAP-IW-5-US

    Sku: IT1538.3605.554449



    MSRP: $270.00

    Out of stock

    Your Price: $270.00


    Model: UAP-IW-5-US

                                          UniFi In-Wall

                                   Wireless Access Point

    The UAP-IW (US Version) is ideal for retrofitting an existing in-wall wired Ethernet jack to a wireless access point. It also provides one RJ45 data port and one PoE port to connect devices like a VoIP phone. The UAP-IW is capable of speeds of up to 150 Mbps with a range of up to 25 m (82 ft). The UAP-IW can be powered by a UniFi Switch. The UAP-IW cannot be powered by a passive PoE source such as a PoE injector or the TOUGHSwitch.

    It provides one RJ45 data port and one PoE port to connect devices like a VoIP phone, and is capable of speeds of up to 150 Mbps with a range of 82'.

    • Instant Deployment

    Transform any existing Ethernet outlet into a versatile UniFi AP – no additional wiring needed.

    • Easy Installation

    Upgrade any single-gang Ethernet outlet to the UniFi In-Wall Wi-Fi AP.

    • Power over Ethernet

    The UniFi In-Wall Wi-Fi AP works with the UniFi Switch (24 and 48 port versions available).

    • Versatile Data and PoE Output

    An integrated PoE passthrough port conveniently connects and powers a security camera, VoIP phone, or high-end AP.

    Product Specifications:

    Outlets

    • 1 x 10/100 Ethernet in (rear)
    • 1 x 10/100 Ethernet data out (front)
    • 1 x PoE out (front)

    Operating Bandwidth

    • 2.4 GHz

    Antenna Gain

    • 1 dBi

    Wi-Fi Standards

    • 802.11 b/g/n

    Wireless Range

    • 82.0' / 25.0 m

    Supported Data Rates

    • 802.11n: 6.5 to 150 Mbps (MCS0 - MCS7, HT 20/40)
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    Maximum Power Consumption

    • 6 W

    Maximum TX Power

    • 17 dBm

    BSSID

    • Up to 4 per radio

    Wireless Security

    • WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

    Certifications

    • CE, FCC, IC

    VLAN

    • 802.1Q

    Advanced QoS

    • Per-user rate limiting

    Guest Traffic Isolation

    • Supported

    WMM

    • Voice, Video, Best Effort, and Background

    Concurrent Clients

    • 100+

    Buttons

    • 1 x Reset

    Mounting

    • 1-Gang electrical wall box (not included)

    Power Method

    • PoE 802.3af

    Power Save

    • Supported

    Operating Environment

    • Temperature: 14 to 158°F / -10 to 70°C
    • Humidity: 5 to 95% non-condensing

    Dimensions (W x H x D)

    • 2.78 x 4.51 x 1.12" / 7.06 x 11.46 x 2.84 cm

    Weight

    • 4.13 oz / 117.0 g
