RckM365+3G18-120x2

Ubiquiti

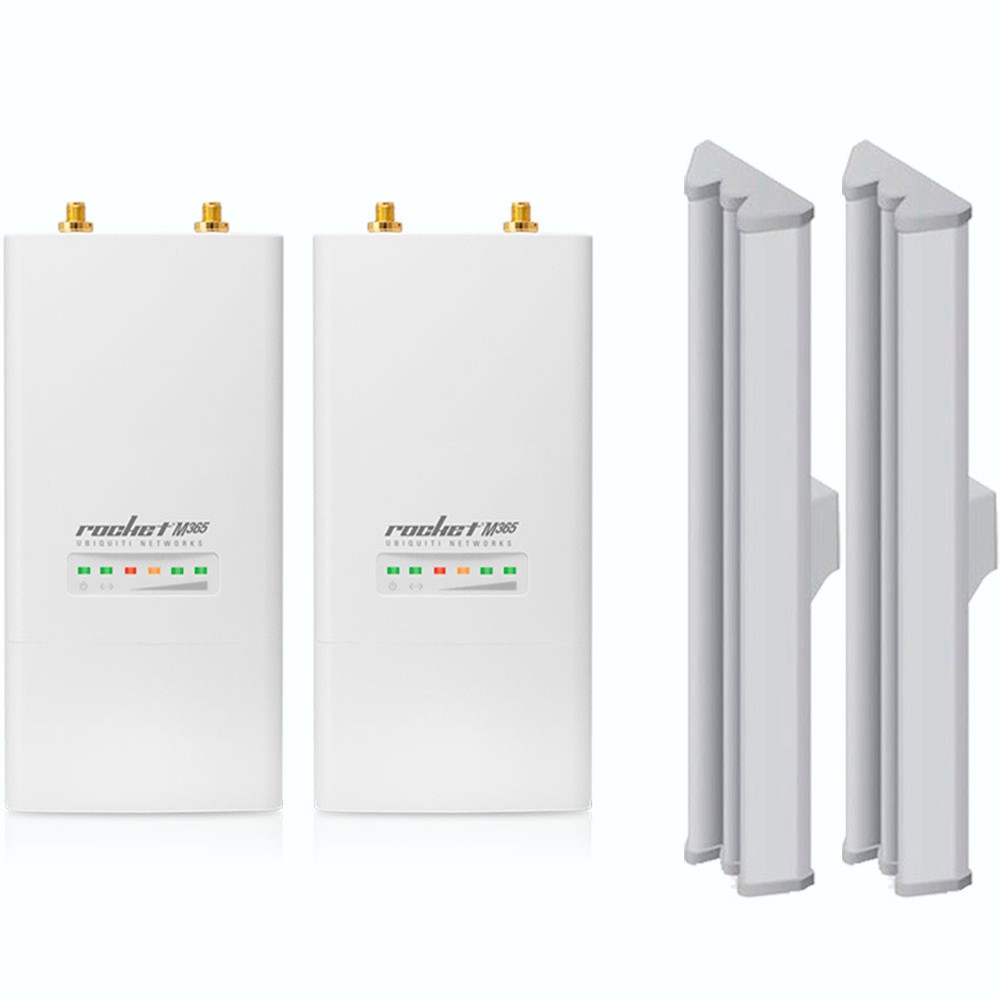

Ubiquiti RocketM365 2-PACK 3.65GHz + AM-3G18-120 X2 3.65GHz 18dBi Sector Antenna


Model#: RckM365+3G18-120x2

Sku: IT1521

Out of stock

Your Price: N/A


Model: Rocket M365

                                         Ubiquiti Rocket M365 3.65GHz Hi Power 2x2 MIMO AirMax TDMA BaseStation (2 Pack)

The Rocket M365 Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications.

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools--you simply snap it into place with the mount provided with the antennas.

  • Flexibility

The Rocket is available in a variety of frequency models that are designed to support your specific application. The M365 model works within the 3.65 GHz frequency band, which gives you the freedom to locate, deploy, and operate the unit in an unlicensed band (subject to local country regulations). The Rocket also allows for a high degree of flexibility in configuring channel bandwidths, depending on the specific model and local country regulations.

  • Scalability & Throughput

The M365 supports speeds of up to 150+ Mbps real TCP/IP throughput, as well as impressive scalability to handle growing workloads and high-capacity applications.

  • Designed for Long Distance

The M365 is capable of high-speed, carrier-class links.

+

Model: AM-3G18-120

                                                                    AM-3G18-120 AirMAX 3 GHz 2x2 MIMO Sector Antenna (2 Pack)

The AM-3G18-120 AirMAX 3 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 3 GHz frequency and offers a gain of 18 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

  • Seamlessly integrates with RocketM radios
  • Remarkable cross-polarization isolation
  • Scalability: High capacity and scalability
  • Long Distance: Capable of high-speed, carrier-class links
  • Up to 100 airMAX clients can be connected to an airMAX sector antenna

Model: Rocket M365 (2 Pack)

  • Operates in 3.65 GHz Frequency Band
  • Designed with airMAX TDMA Technology
  • Supports 150+ Mbps Transmission Speeds
  • Works Seamlessly with airMAX Antennas
  • airView Spectrum Analyzer Functionality
  • airOS 5 with Intuitive User Interface
  • airControl Web-Based Network Management
  • Supports Long-Range PtMP & PtP Bridging
  • Outdoor UV Stabilized Plastic Enclosure
  • Constructed with Multiple LED Indicators
  • Enclosure Size 16cm length x 8cm width x 3cm height
  • Weight 0.5 kg
  • RF Connector 2x RPSMA (Waterproof)
  • Enclosure Characteristics Outdoor UV Stabalized Plastic
  • Mounting Kit Pole Mounting Kit included
  • Max Power Consumption 6.5 Watts
  • Power Supply 24V, 1A POE Supply Included
  • Power Method Passive Power over Ethernet (pairs 4,5+; 7,8 return)
  • Operating Temperature -30C to 75C
  • SYSTEM INFORMATION
  • Processor Specs Atheros MIPS 24KC, 400MHz
  • Memory Information 64MB SDRAM, 8MB Flash
  • Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
  • Operating Humidity 5 to 95% Condensing
  • Shock and Vibration ETSI300-019-1.4





Model: AM-3G18-120 (2 Pack)

  • Frequency Range 3.3-3.8 GHz
  • Gain 17.3-18.2 dBi
  • Polarization Dual Linear
  • Cross-pol Isolation 28dB min.
  • Max VSWR 1.5:1
  • Hpol Beamwidth (6dB) 118 deg.
  • Vpol Beamwidth (6dB) 121 deg.
  • Elevation Beamwidth 6 deg.
  • Electrical Downtilt 2 deg.
  • ETSI Specification EN 302 326 DN2
  • Dimensions 700x145x93mm
  • Weight 5.9 kg
  • Windloading 160 mph
  •
