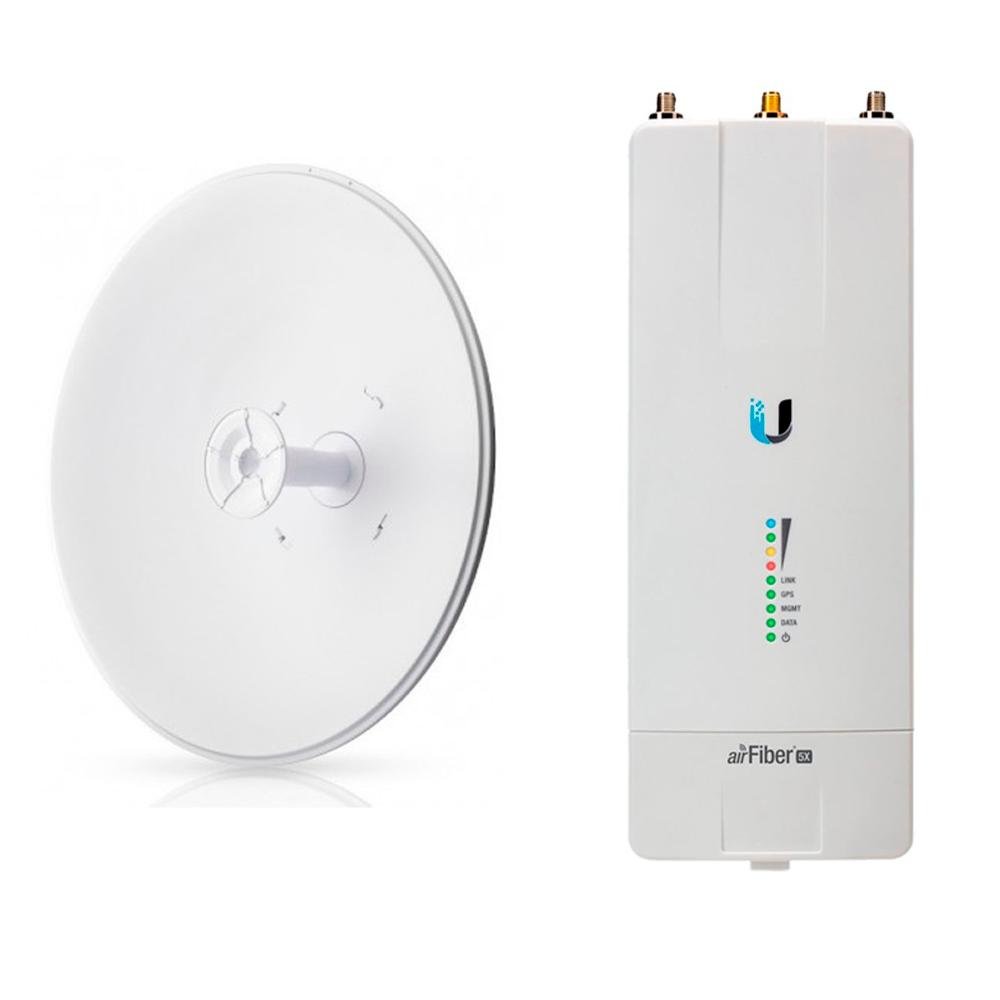

Ubiquiti Networks airFiber 5GHz Carrier Backhaul Radio with airFiber Dish 30dBi Antenna Slant 45


Ubiquiti AF-5X airFiber X 5GHz Carrier Backhaul Radio 500Mbps with AF-5G30-S45 airFiber Dish 30dBi Slant 45, designed for long-range, Point-to-Point (PtP) backhaul links, license-free 5GHz spectrum and includes DFS approval, up to 124 mi (200 km).

Product Highlights
  • Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber® X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to
  • Building upon the proven design of the airFiber system, the airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point-to-Point (PtP) links.
  • The airFiber X features industry-leading spectral efficiency of up to 17.1 Mbps/MHz, line-rate data packet processing of up to 525 Mbps of real data throughput, and innovative xtreme Range Technology (xRT™) for up to 200+ km in range.
  • Ubiquiti airFiber X Antenna Slant 45 Antenna for airFiber
  • Ubiquiti airFiber X Antenna AF-5G30-S45 5GHz airFiber Dish 30dBi Slant 45 Antenna for airFiber
  • Model#: AF-5X+5G30-S45

    Sku: IT1516.3474.526658

    MSRP: $749.95

    Out of stock

    Your Price: $548.00

    • Model: AF-5X

    The airFiber AF-5X 5 GHz Carrier Backhaul Radio from Ubiquiti is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 5X also allows users to customize backhaul links or upgrade existing PtP links.

    • The AF-5X covers the entire, license-free, 5 GHz spectrum and includes DFS approval. Anyone around the world can deploy and operate the AF-5X in the 5 GHz range practically anywhere they choose.


    • Model: AF-5G30-S45

    The AF-5G30-S45 30 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio from Ubiquiti produces a reliable point-to-point signal complete with a 30dBi gain. In addition to the strength of the signal, users also benefit from a 90° beamwidth and a wind survivability rating of up to 125 mph. Installation has also been simplified thanks to the included pole mounting kit while the weatherproof design allows the antennas to be deployed nearly anywhere.

    Model: AF-5G30-S45

    • Range: up to 124 mi (200 km)
    • Up to 500+ Mbps Real Throughput
    • Full Band Certification including DFS
    • Operates using the 5 GHz Band
    • Hybrid Division Duplexing (HDD)
    • Low Latency
    • Enhanced Spectral Efficiency
    • Operation in Unlicensed Bands
    • Co-Location
    • GPS Sync & Clean Power Output


    Model: AF-5G30-S45

    • 5.1 - 5.9 GHz Frequency Range
    • Radome Integrated
    • 30 dBi Gain
    • 30 dB F/B Ratio
    • 1.5:1 Max. VSWR
    • Up to 125 mph Wind Survivability
