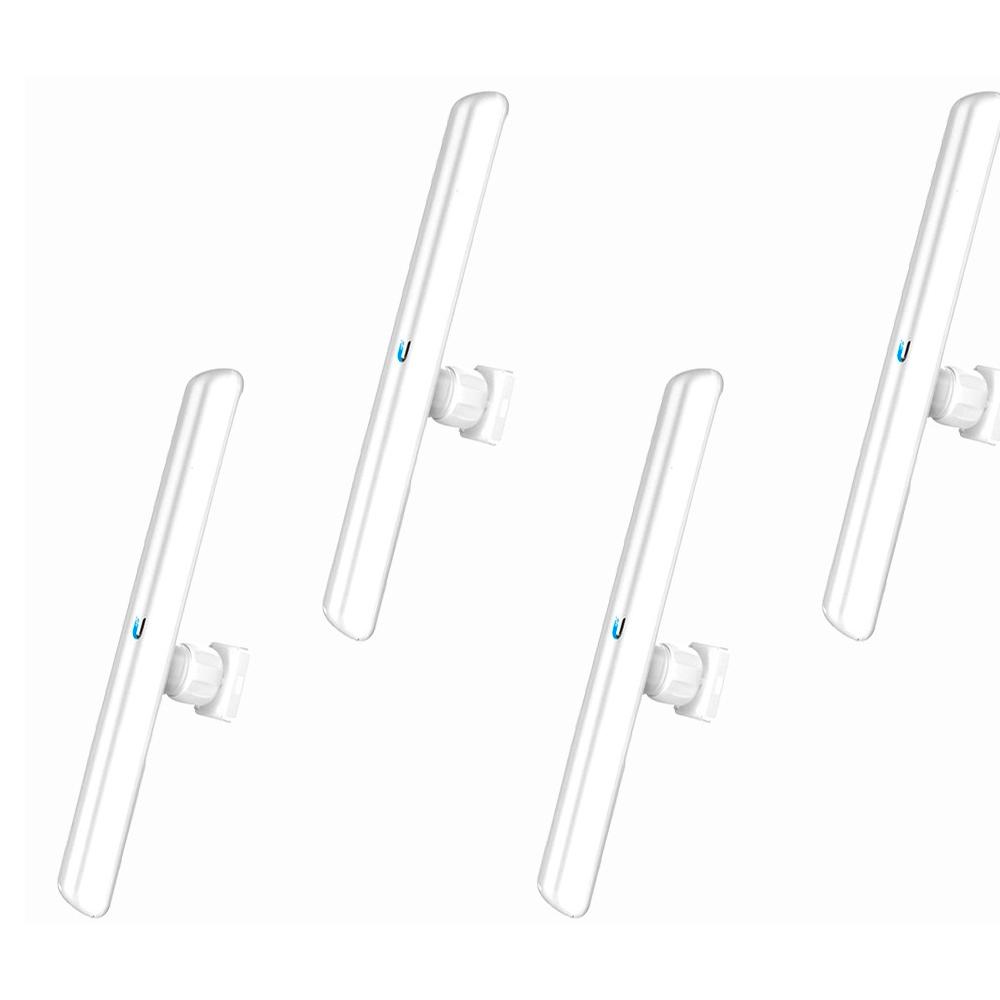

Ubiquiti LiteBeam AC AP LBE-5AC-16-120-US 5GHz LiteBeam AC 802.11ac Access Point 16dBi 120° (X4)

Model#: LBE-5AC-16-120X4

Sku: IT1510

Out of stock

Model: LBE-5AC-16-120 (4-PACK)


                                        LiteBeam AC

                                          2x2 MIMO airMAX ac Sector AP

                       The LiteBeam ac AP is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.

Ubiquiti Networks LBE-5AC-16-120 is an airMAX LiteBeam CPE with both point to point and point to multipoint funcitonality, operating on 5GHz with 16dBi gain. LiteBeam is ideal for a cost-effective WISP deployment in an airMAX ac Point-to-Multi-Point network.

The LBE-5AC16120-US LiteBeam 5 GHz airMAX Technology Solution from Ubiquiti Networks and take advantage of a longer-range, higher-performance network antenna to reach users at greater distances. Operating on the license-free 5 GHz frequency, you can take advantage of data transfer rates of up to 100+ Mbps at distances of up to 18+ mi (30+ km).

  • airMAX ac Sector Coverage

The LiteBeam ac AP features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.

  • Now with airOS 8

airOS 8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

  • Lightweight and Sleek Design

The LiteBeam ac AP features a lightweight antenna with an integrated radio in a sleek and highly efficient design.

  • Installation Flexibility

Featuring the freedom of three-axis alignment, the LiteBeam ac AP fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

  • Wind Survivability: 125 mph (200 km/h)
  • Wind Loading: 17.3 lbf @ 125 mph (77 N @ 200 km/h)
  • Mounting Kit: Pole mounting kit (included)
  • Max Power Consumption: 7 W
  • Power Supply: 24 V, 0.5 A Gigabit PoE adapter (included)
  • Power Method: Passive PoE (pairs 4, 5+; 7, 8 return)
  • Temperature & Humidity: Operating temperature: -40 to 158°F (-40 to 70°C)
  • Operating humidity: 5 to 95% non-condensing
  • Shock and Vibration: ETSI300-019-1.4
  • ETSI Specification: EN 302 326 DN2
  • ESD/EMP Protection: ± 24 KV contact / air
  • Processor: MIPS 74 K
  • Memory: 64 MB
  • Networking Interface: 1 x 10/100/1000 Ethernet port
  • Wireless Approvals: FCC, IC, CE
  • RoHS Compliance: Yes
  • Output Power Output Power: 25 dBm
  • Operating Frequency Worldwide: 5150 - 5875 MHz
  • USA: 5725 - 5850 MHz
  • Gain: 16 dBi
  • Max VSWR: 1.5:1
  • Dimensions: 17.81 x 3.10 x 2.14" (452.3 x 78.7 x 54.4 mm)
  • Weight: 14.82 oz (420 g)
