POE-24-30W

Ubiquiti


Ubiquiti Networks POE-24-30W 24V PoE 1A w/US Power Cord



Product Highlights
  • 24V DC @ 1A PoE Adapter
  • Powers Ubiquiti® PoE Devices
  • Helps Protect Against ESD Events
  • Earth Grounding and Surge Protection
  • Model#: POE-24-30W

    Sku: IT1505



    MSRP: $15.99

    In Stock

    Your Price: $15.99






    Model: POE-24-30W

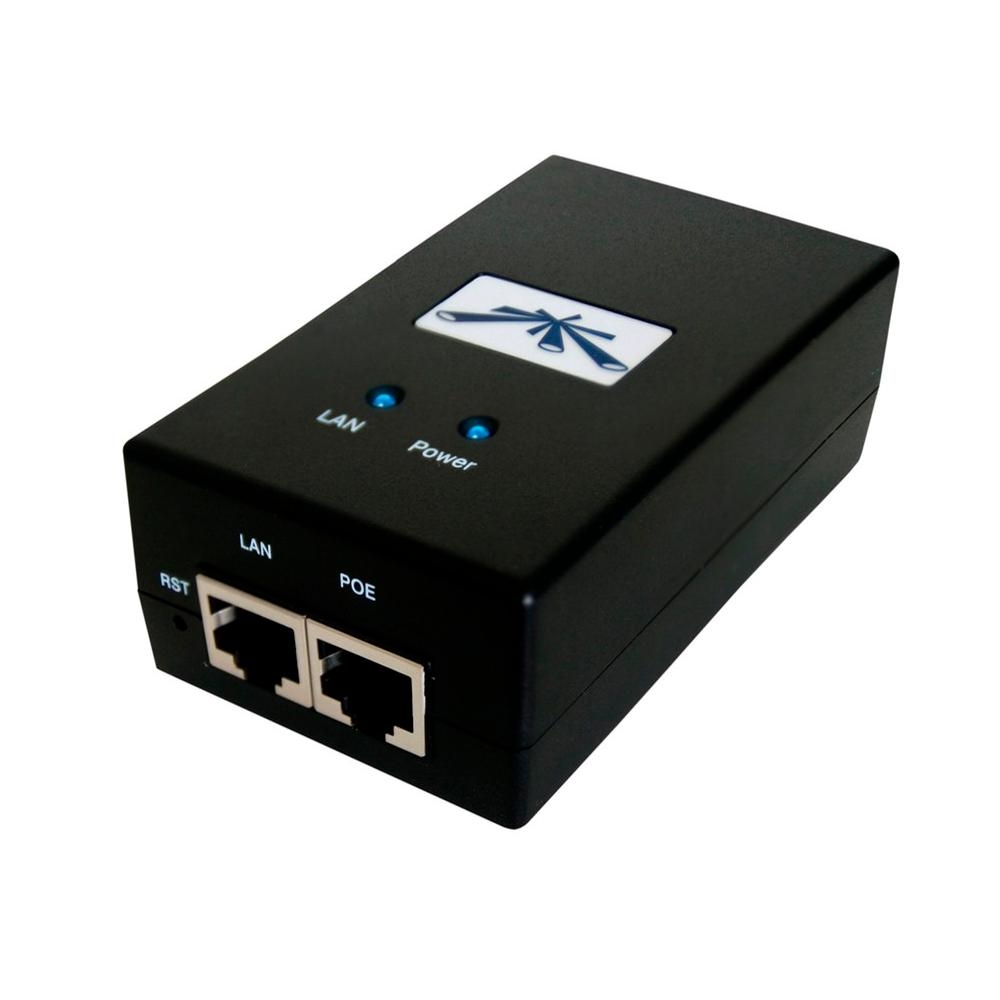

    POE-24-30W from Ubiquiti Networks is a Gigabit replacement PoE adapter, with an output voltage of 24VDC at 1.25A. Its a great PoE for airFiber products. Includes surge protection, clamping protection, maximum surge discharge, and AC cable with earth ground.

    The POE-24-30W PoE Injector from Ubiquiti Networks is designed for the company's airFiber, airMAX, EdgeMAX, mFi, UniFi AP, and UniFi Video / airVision products. This 24 VDC, 30 W adapter provides protection against surge, clamping, maximum surge discharge, and peak pulse current.



    Model: POE-24-30W

    • Output Voltage: 24 VDC @ 1 A
    • Input Voltage: 90 to 260 VAC @ 47 to 63 Hz
    • Input Current: 0.3 A @ 120 VAC/0.2 A @ 230 VAC
    • Inrush Current: <15 A peak @ 120 VAC/<30 A peak @ 230 VAC
    • PoE Power: 30 W
    • Efficiency: ±70%
    • Output Ripple: 1% maximum
    • Switching Frequency: 200 kHz
    • Line Regulation: ±0.5%
    • Load Regulation: ±1%
    • AC Connector: IEC-320 C6
    • Data In/PoE: RJ45 shielded socket
    • Indicators: Power LED will change color with 80% current
    • Surge Protection: Common mode
    • Clamping Protection: Data: 11 V data/Power: 77.5 V
    • Maximum Surge Discharge: 1200 A (8/20 μs) power
    • Peak Pulse Current: 36 A (10/1000 μs) data
    • Shunt Capacitance: <5 pf data
    • Response Time: <1 nano sec
    • Compliance: UL, EN55022 (CISPR22) class B, CE
    • Operating Temperature: 14 to 140°F (-10 to 60°C)
    • Storage Temperature: -4 to 185°F (-20 to 85°C)
    • Operating Humidity: 5 to 90% non condensing
    • Dimensions (L x W x H): 3.3 x 1.7 x 1.1" (8.5 x 4.3 x 3.0 cm)
    • Weight: 4.0 oz (113.4 g)

    Datasheet

    PDF File Ubiquiti Networks POE-24-30W 24V PoE 1A w/US Power Cord
