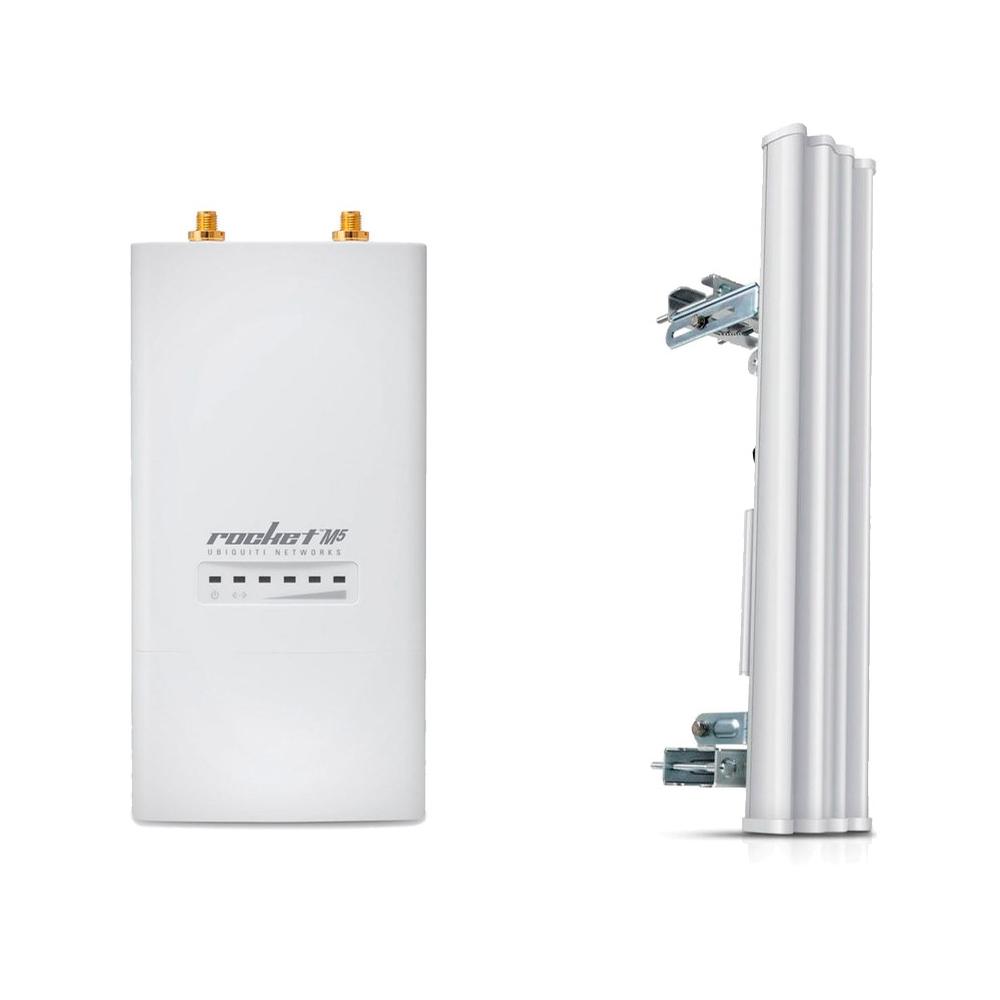

Ubiquiti Rocket M5 5GHz Outdoor airMAX BaseStation with airMAX Sector Antenna AM-5G20-90 20dBi 90deg


Ubiquiti Networks Rocket M5 5GHz Outdoor airMAX BaseStation PtMP with airMAX Sector Antenna AM-5G20-90 20dBi 90deg

Model#: RocketM5+AM-5G20-90

Sku: IT1492.3386.505191

MSRP: $228.00

Out of stock

Your Price: $228.00

Model: RocketM5  (QNTY: 1)

                             Rocket M airMAX BaseStation

                           Point to Point (PtP) or Point to Multi Point (PtMP)

The Rocket is a hi-power, linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications.

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

The Rocket M5 enclosure is built to survive harsh environments and fits the Rocket mount built into every airMAX antenna. Pair the Rocket with the appropriate antenna for your PtP link or PtMP network.

Featuring mix-and-match industrial design, the Rocket is a Ubiquiti Networks airMAX BaseStation that supports speeds of up to 150+ Mbps real TCP/IP throughput. It is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) airMAX applications.


Model: AM-5G20-90 (QNTY: 1)

                         airMAX BaseStation Sector Antenna


The AM-5G20-90 AirMAX 5 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 20 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots.

The airMAX Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately). The RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience. On the right is one example of how the airMAX Sector Antenna can be deployed:



  • Reduced Interference, Higher Gain

Highly resistant to noise interference, the airMAX® Sector Antennas provide superior gain and beam performance for high-capacity, multipoint networks.

  • RF Isolation and Beamwidth Options

The versatile airMAX Titanium Sector models feature advanced RF isolation and adjustable beamwidth options: 60°, 90° or 120°.

  • Industrial-Strength Construction

airMAX Antennas are designed with robust mechanical design for outdoor application use.

  • Plug and Play Integration

Every airMAX Antenna has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation.


RocketM5 (QNTY: 1)

  • 5 GHz
  • 160 x 80 x 30 mm (6.30 x 3.15 x 1.18")
  • Outdoor UV Stabilized Plastic
  • Processor MIPS 74Kc
  • 128 MB SDRAM, 8 MB Flash
  • (1) 10/100 Mbps
  • (2) RP-SMA (Waterproof)
  • Atheros MIPS 24KC, 400MHz
  • 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
  • 24V, 1A POE Supply included


AM-5G20-90 (QNTY: 1)

  • 5 GHz Operating Frequency
  • 20 dBi Gain
  • For Outdoor Use
  • Compatible with Rocket M BaseStations
  • 125 mph
