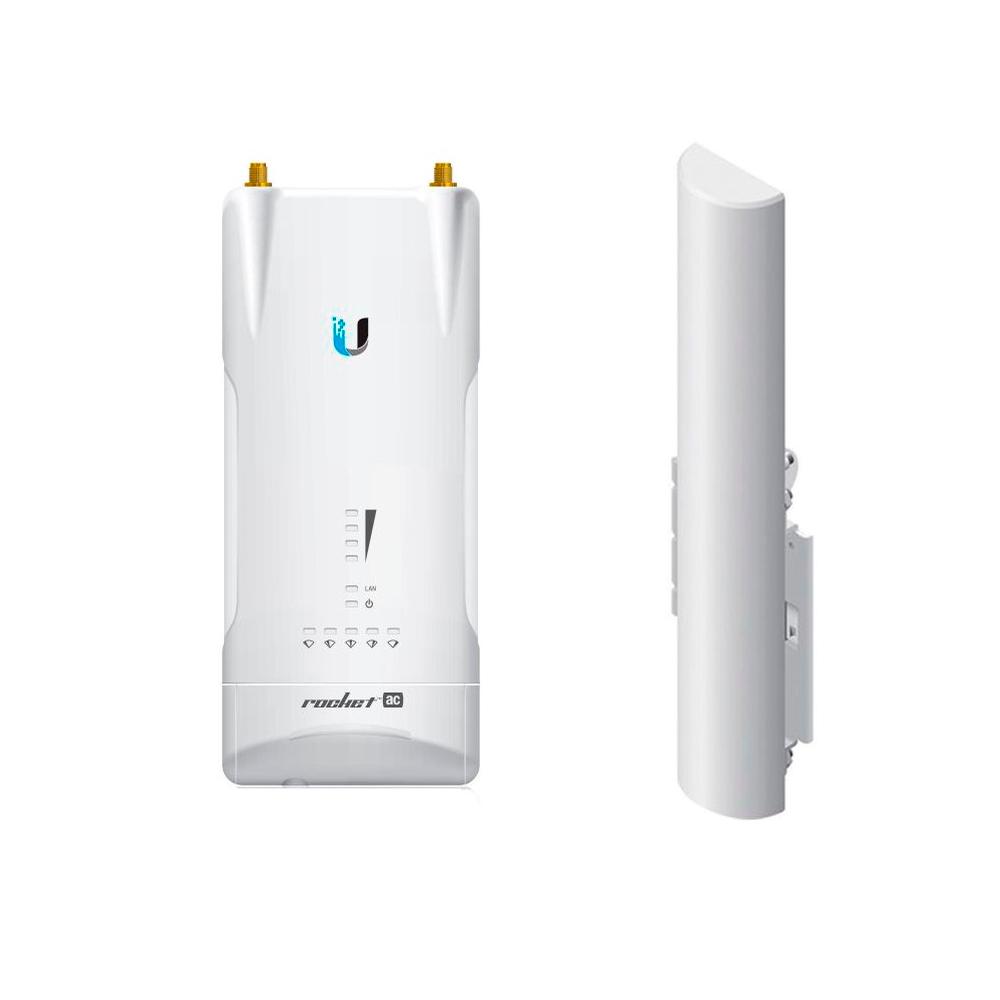

Ubiquiti R5AC-PTMP Rocket5ac PtMP airMAX AC + AM-5G17-90 airMAX Sector 17dBi 90d

R5AC-PTMP+5G17-90

Ubiquiti
Ubiquiti R5AC-PTMP Rocket5ac PtMP airMAX AC + AM-5G17-90 airMAX Sector 17dBi 90d

Model#: R5AC-PTMP+5G17-90

Sku: IT1491.3382.504256



MSRP: $297.00

Out of stock

Your Price: $297.00


Model: R5AC-PTMP

  • Ubiquiti R5AC-PTMP featuring proprietary AirMAX ac technology, the R5AC-PTMP is ideal for deployment in Point-to-MultiPoint (PtMP) bridging applications requiring maximum performance.
  • The new ac technology offers improved latency, noise immunity, scalability and significantly increases throughput performance.
  • To enhance airMAX ac performance, Ubiquiti Networks introduced their patented airPrism™ technology featured on the R5AC-PTMP., which improves SNR, removes interference, and facilitates AP co-location.
  • The R5AC-PTMP radio can be paired with a RocketDish antenna (SKU: RD-5G31) to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul.

+

Model: AM-5G17-90

  • Ubiquiti AirMax BaseStation AM-5G17-90 Ubiquiti 5GHz 17dBi 90 degree MIMO AirMax BaseStation Sector Antenna and bracket system

  • World Class Antenna Designs

  • Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

  • Rocket M Seamlessly Integrates with AirMax BaseStation Sectors

  • Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Model: R5AC-PTMP

  • Operating frequency: 5470 - 5875 MHz
  • Networking: (1) 10/100/1000 Ethernet port
  • RF connectors: (2) RP-SMA (Waterproof)
  • Max. power consumption 8.5W
  • Power supply: 24V, 0.5A Gigabit PoE adapter
  • Power method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Operating temperature: -40 to 80° C (-40 to 176° F)
  • Operating Humidity: 5 to 95% noncondensing
  • ESD/EMP Protection: ± 24KV Contact / Air for Ethernet
  • Shock and vibrations: ETSI300-019-1.4
  • Certifications: CE, FCC, IC
  • Product Includes:
  • Rocket R5AC PtMP
  • 24V Gigabit PoE adapter
  • Power cord
  • Quick start guide

+

Model: AM-5G17-90

  • Frequency Range: 5.10-5.90GHz

  • Gain: 16.1-17.1dBi

  • Polarization: Dual Linear

  • Cross-polarization Isolation: 22dB min

  • H-Pol beamwidth (6 dB): 72 deg

  • V-Pol beamwidth (6 dB): 93 deg

  • Elevation Beamwidth (6dB): 8 deg

  • Electrical Downtilt: 4 deg

  • ETSI Specification: EN 302 326 DN2

  • Dimensions: 367X63X41mm

  • Weight: 1.1kg

  • Wind Loading: 120 mph

  • Includes two SMA RP jack sockets for radio connections.

  • Antenna is supplied with two pigtails to connect a Rocket M5
