PBE-M5-400-ISOX2

Ubiquiti

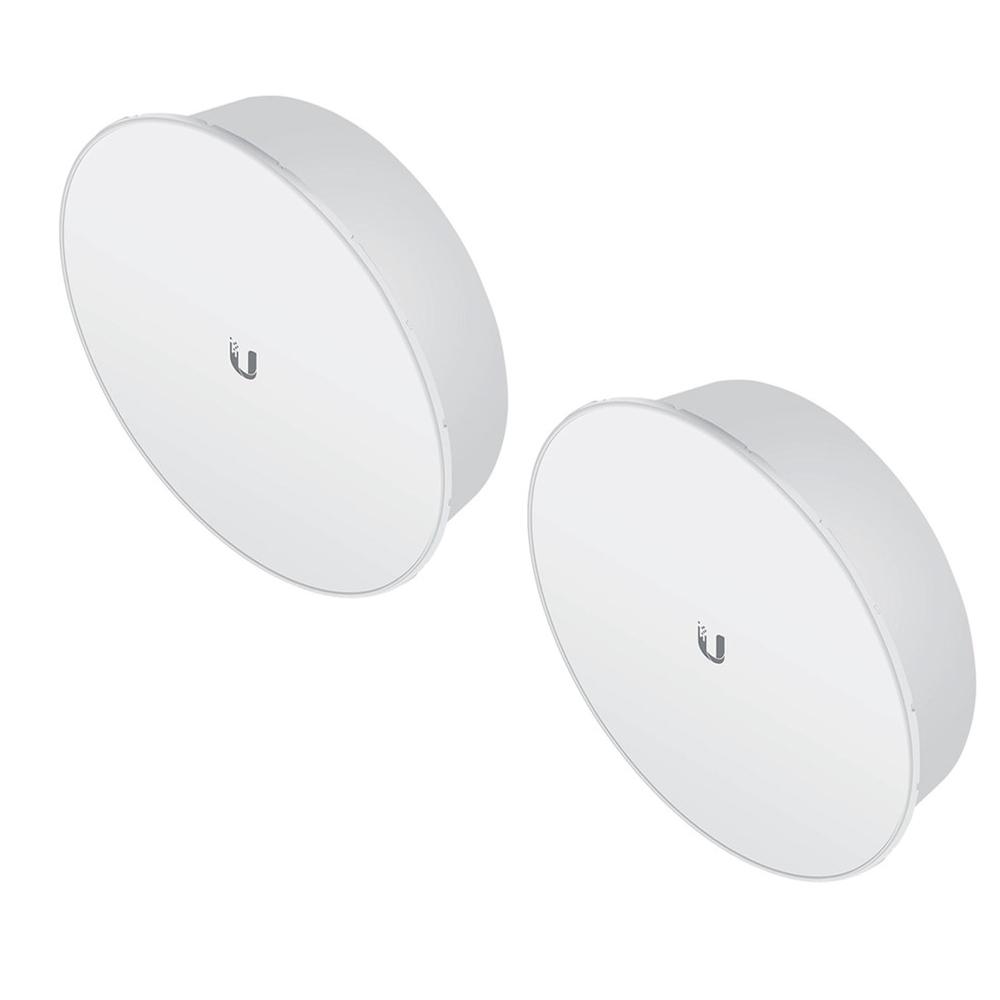

Ubiquiti PBE-M5-400-ISO PowerBeam M5 25dBi ISO 5GHz AirMAX 400mm 25+km(2PACK)



Product Highlights
  • The Ubiquiti Networks PowerBeam ISO is an airMAX Bridge that is ideal for deployments requiring maximum performance and RF isolation.
  • The PowerBeam ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference.
  • Ubiquiti has an InnerFeed technology that integrates the radio into the feedhorn of an antenna, so there is no need for a cable.
  • Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments.
  • The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.
  • Model#: PBE-M5-400-ISOX2

    Sku: IT1485

    Out of stock

    Model: PBE-M5-400-ISO-US (2-PACK)

                                            PowerBeam M5 ISO

                                        5 GHz airMAX Bridge with RF Isolated Reflector

    The Ubiquiti Networks PowerBeam ISO is an airMAX Bridge that is ideal for deployments requiring maximum performance and RF isolation. The PowerBeam ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. This combination of focused beam directivity and RF isolation, the PowerBeam ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency. Ubiquiti has an InnerFeed technology that integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing high performance and innovative mechanical design at a low cost, the PowerBeam ISO is extremely versatile and cost-effective to deploy.



    • Innovative Mechanical Design

    The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.

    • Superior RF Isolation

    Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.

    Advanced Software Technology

    Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.


    • Power Supply 24V, 0.5A Gigabit PoE
    • Processor: Atheros MIPS 74KC, 560 MHz
    • up to 150+ Mbps real TCP/IP throughput
    • Distance: 25+km
    • 400 mm
    • Dimensions with Radome: 459 x 459 x 261 mm (18.07 x 18.07 x 10.28")
    • Frequency: 5170 - 5875 MHz
    • Gain: 25 dBi
    • Net working interface: (1) 10/100/1000 Ethernet Port
    • Max Power: 8W
    • Wind Survivability: 200 km/h (125 mph)
