AF-2X

Ubiquiti

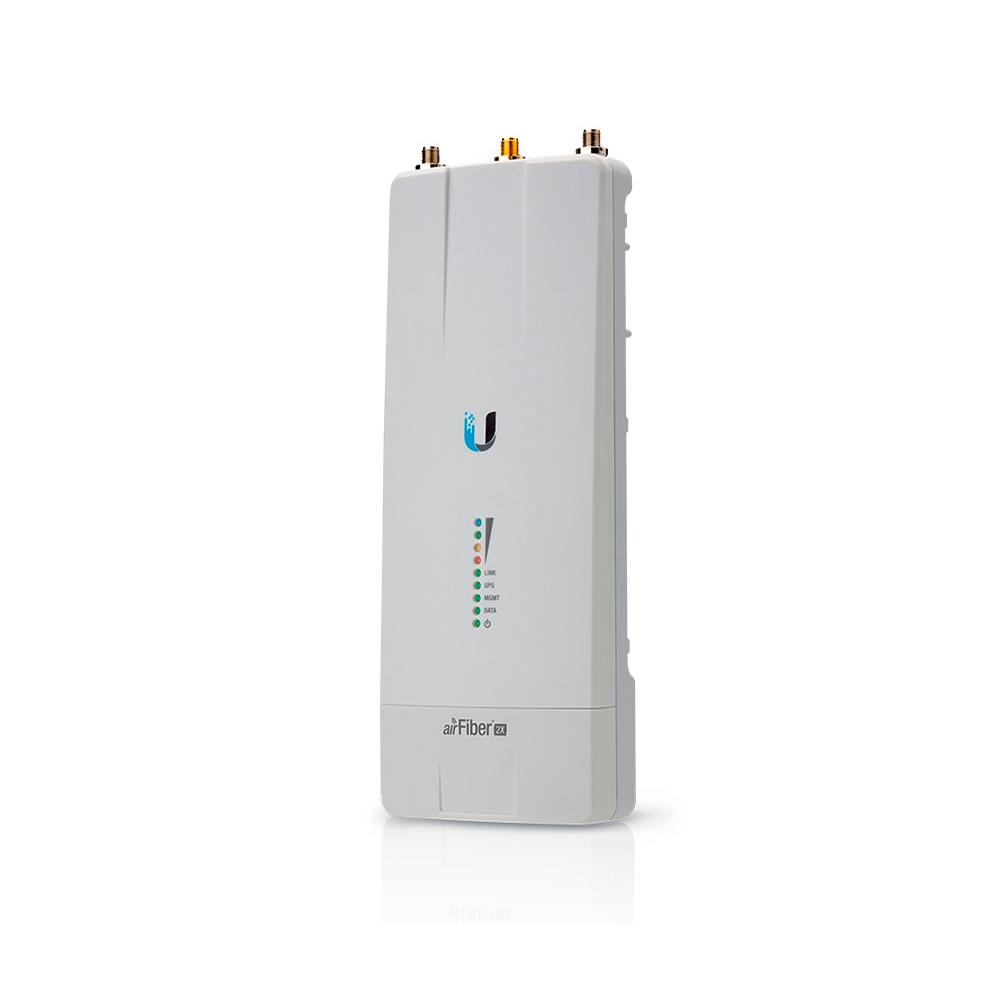

Ubiquiti Networks airFiber X AF-2X-US Carrier Backhaul Radio 2.4GHz PtP Point to Point


Model#: AF-2X

Sku: IT1480



MSRP: $499.00


Out of stock

AF-2X

The airFiber AF-2X 2 GHz Carrier Backhaul Radio from Ubiquiti Networks is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 2X also allows users to customize backhaul links or upgrade existing PtP links.

The airFiber AF-2X operates using the 2 GHz frequency band and features a range of 656,168' / 200,000m. Included with this device is a GPS antenna mount, an external GPS antenna, a metal strap, two cable ties, a 24V/1A airFiber PoE adapter with a mounting bracket, and a power cord.

  • Backhaul

The 2.4 GHz frequency band is free to use, worldwide; and with its proprietary protocol, the AF-2X increases both range and delivered throughput in this popular band.

  • Operation in Unlicensed Bands

Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations virtually anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements

  • Low Latency with HDD Technology

The airFiber X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.

  • GPS Synchronization

Precise GPS frame synchronization enables co-located airFiber X radios to transmit and receive data without interfering with each other, enabling better frequency reuse and increased network stability.



AF-2X

  • Operates using the 2 GHz Band
  • Range: up to 124 mi (200 km)
  • Up to 500+ Mbps Real Throughput
  • 2.4, 3, or 5 GHz (Full-Band Certification)
  • Ultra-Low Latency with HDD Technology
  • GPS Synchronization

Networking Interfaces

  •  1 x 10/100/1000 Ethernet Port

Management Port

  • 1 x 10/100 Ethernet Port

System

  • Processor    INVICTUS IC
  • Maximum Throughput    525 Mbps
  • Maximum Range    656,168' / 200,000 m
  • Encryption    128-bit AES
  • Operating System    airOS F
  • Wireless Modes    Master/Slave
