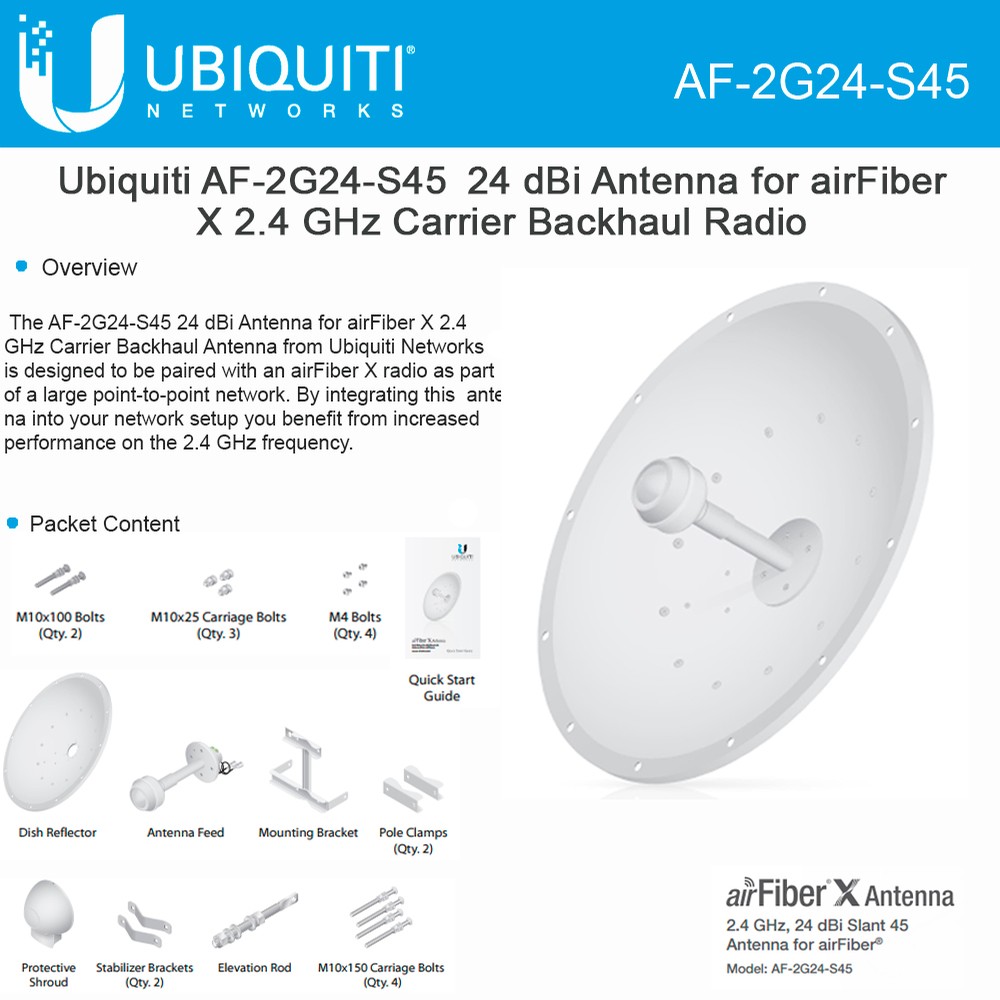

Ubiquiti Networks airFiber X Antenna AF-2G24-S45 2.4GHz Slant Parabolic Dish 24dBi 45 deg

AF-2G24-S45

Ubiquiti
Ubiquiti Networks airFiber X Antenna AF-2G24-S45 2.4GHz Slant Parabolic Dish 24dBi 45 deg (This antenna pairs with the AF-2X radio)


Product Highlights
  • The AF-2G24-S45 24 dBi Antenna for airFiber X 2.4 GHz Carrier Backhaul Antenna from Ubiquiti Networks is designed to be paired with an airFiber X radio as part of a large point-to-point network.
  • By integrating this antenna into your network setup you benefit from increased performance on the 2.4 GHz frequency.
  • With a 2x2 dual-polarity antenna configuration, the antenna/radio configuration is perfect for handling high-density network traffic.
  • The rugged external housing ensures the antenna can withstand harsh weather conditions, while plug-and-play setup eliminates the need for special tools during installation.
  • The airFiber X antenna delivers 2x2 dual-polarity performance.
  • Model#: AF-2G24-S45

    Sku: IT1479.3339.493838



    MSRP: $229.00

    Out of stock

    Your Price: $229.00


    Model: AF-2G24-S45

                                       airFiber X Antenna

                                                Slant 45 Antenna for airFiber

    The AF-2G24-S45 24 dBi Antenna for airFiber X 2.4 GHz Carrier Backhaul Antenna from Ubiquiti Networks is designed to be paired with an airFiber X radio as part of a large point-to-point network. By integrating this antenna into your network setup you benefit from increased performance on the 2.4 GHz frequency. With a 2x2 dual-polarity antenna configuration, the antenna/radio configuration is perfect for handling high-density network traffic. The rugged external housing ensures the antenna can withstand harsh weather conditions, while plug-and-play setup eliminates the need for special tools during installation.

    • Performance

    The airFiber X antenna delivers 2x2 dual-polarity performance. The airFiber X antenna along with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the WISP's customers.

    • Carrier-Class Construction

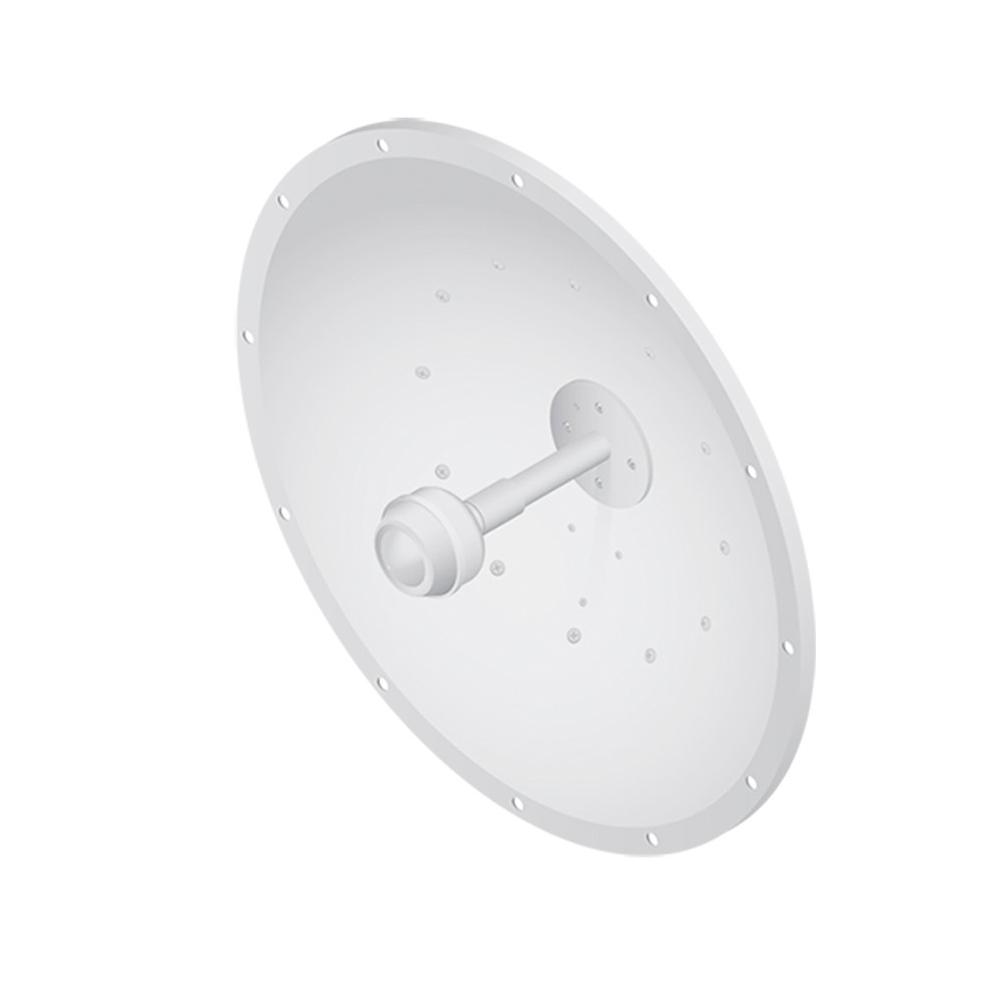

    Incorporating a dish reflector design for improved beam directivity, the airFiber X antennas feature enhanced mechanical design using industrial-strength hardware for outdoor application use.

    • Plug-and-Play Integration

    airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

    • Mechanical Design

    • Secure Pole-Mounting maintains the position of the dish during harsh outdoor conditions.
    • Low-Profile Form Factor of the AF-5G23-S45 Reduces wind-loading.

    • Weatherproof Design

    • Protective Shroud protects the cables and connectors from the elements.



    • 2.4 GHz Slant 45 Antenna for airFiber X
    • Gain: 24dBi
    • F/B Ratio: 28dB
    • Max VSWR: 1:6:1
    • Wind Loading: 177lbf @ 125mph (787N @ 200km/h)
    • Wind Survivability: 125mph (200km/h)
    • Dimensions: ∅650 x 295mm (∅25.59 x 11.61")
    • Weight: 9.8kg (21.61lbs)
    • Polarization: Dual-Linear
    • Cross-pol Isolation: 35dB minimum
    • ETSI Spec.: EN 302 326 DN2
    • Mounting: Universal pole mount
    • Plug and Play Integration
    • Powerful Performance for Long-Range Links
    • Seamless Integration with airFiber Radio
