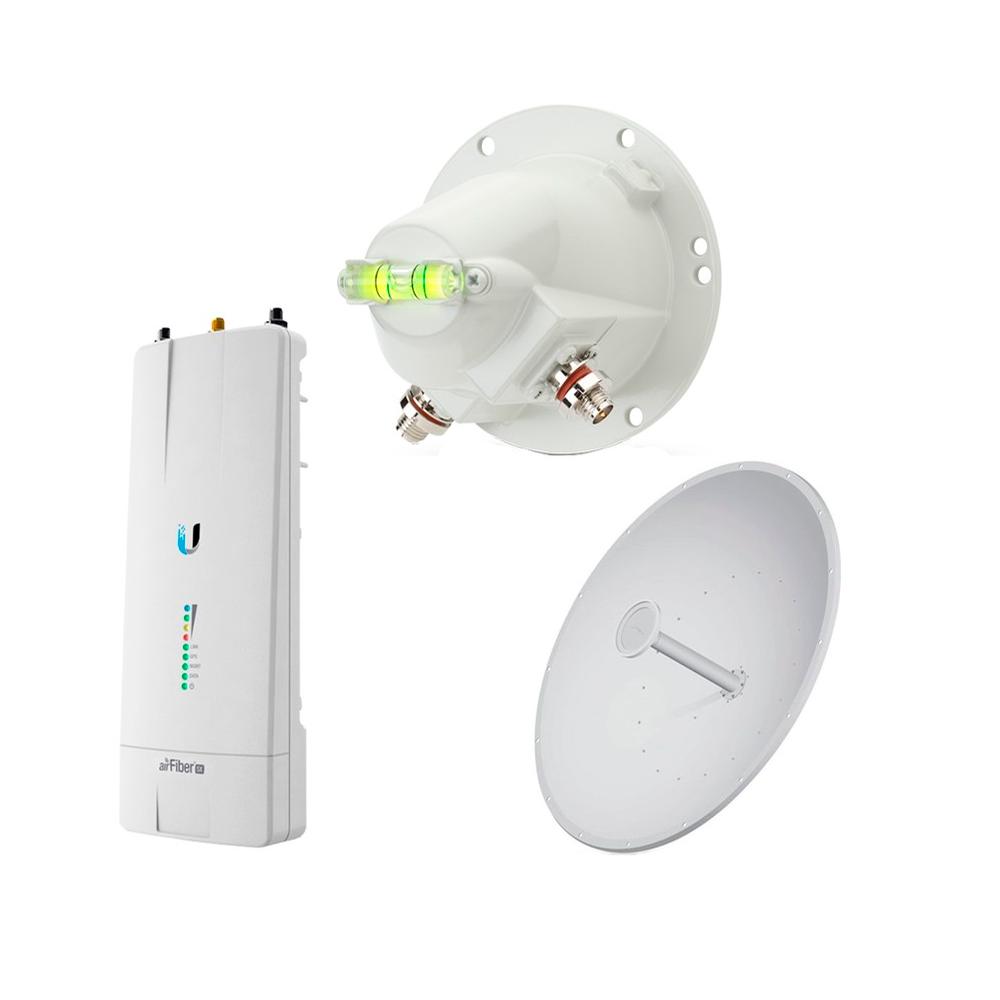

Ubiquiti airFiber 5X AF-5X with AF-5G-OMT-S45 Slant Dish and RocketDish RD-5G34 34dBi

AF-5XBD02

Ubiquiti
Ubiquiti airFiber 5X AF-5X with AF-5G-OMT-S45 Slant Dish and RocketDish RD-5G34 34dBi

Model#: AF-5XBD02

Sku: IT1476.3334.492098



MSRP: $767.00

Out of stock

Your Price: $767.00


Model: AF-5X-US

                                  Carrier Backhaul Radio

                                                              airFiber X

The airFiber X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.



  • Engineered for Performance

Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.

  • Carrier Backhaul for the World

Deploy the 2.4, 3, 4, 5 or 11 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-2X or AF-3X.

  • Optimal Operation and Channel Configuration

Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.



Model: AF-5G-OMT-S45

This conversion kit is used to upgrade the RD-5G30 and the RD-5G34 in order to utilize the power of the AF-5X airFiber 5X radio backhaul.



                                                          airFiber X Conversion Kit

The 5 GHz RocketDish to airFiber® Antenna Conversion Kit, model AF-5G-OMT-S45, converts the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.





Model: RD-5G34

                         airMAX 2x2 PtP Bridge Dish Antenna

  •                                                      Rocket Dish Antenna

Ubiquiti Networks RD-5G34 is a RocketDish operating between 4.9 and 5GHz, with a 34dBi gain. This parabolic dish antenna is designed to work with the Rocket M5.

The Ubiquiti RocketDish Antenna has been designed to seamlessly work together with the Ubiquiti Rocket M5 or MikroTik UBTik™ for an instant long range powerful PtP Link. Installing the Rocket M5 or the MikroTik UBTik™ onto the RocketDish Antenna requires no special tools, you simply snap it into place with the mounts provided.



  • Breakthrough Design and Performance

The powerful airMAX RocketDish Antennas feature carrier-class construction and 2x2, dual-polarity performance.

Model: AF-5X

  • Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
  • Weight 0.35 kg (0.77 lb)
  • RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
  • (1) SMA Weatherproof (GPS)
  • GPS Antenna External, Magnetic Base
  • Power Supply 24V, 1A PoE Gigabit Adapter (Included)
  • Power Method Passive Power over Ethernet
  • Mounting airFiber X Mount (Rocket Mount Compatible)
  • GPS Pole Mount (Included)
  • DFS Certified
  • FCC Part 15.407
  • CE EN 302502 v1.2.1, EN 301 893 v1.7.1
  • Operating Temperature -40 to 55° C (-40 to 131° F)
  • Data Port (1) 10/100/1000 Ethernet Port
  • Management Port (1) 10/100 Ethernet Port
  • Processor INVICTUS IC
  • Maximum Throughput 500+ Mbps*
  • Maximum Range 200+ km*
  • Encryption 128-bit AES
  • OS airOS F
  • Wireless Modes Master/Slave
  • Operating Frequency 5150-5925 MHz
  • (Dependent on Regulatory Region)
  • Max. Conducted TX Power 26 dBm
  • (Dependent on Regulatory Region)
  • Frequency Accuracy ± 2.5 ppm without GPS Synchronization
  • ± 0.2 ppm with GPS Synchronization
  • Channel Bandwidth 10/20/30/40/50 MHz Selectable
  • Programmable Uplink and Downlink Duty Cycles



Model: AF-5G-OMT-S45

Specification

  • (1) airFiber OMT Conversion Kit
  • (5) Screws
  • (1) Seal Ring
  • (1) Phillips Bit



Model: RD-5G34

  • Frequency Range: 4.90-5.90 GHz

  • Gain: 32.1-34.2dBi

  • Polarization: Dual Linear

  • Cross-pol Isolation: 35dB min

  • Max VSWR: 1.4:1

  • Hpol Beamwidth (3dB): 3 deg.

  • Vpol Beamwidth (3dB): 3 deg.

  • F/B Ratio: -42dB

  • ETSI Specification: EN 302 326 DN2

  • Dimensions: 38.3in (972mm) diameter

  • Windloading: 256lb @ 100mph

  • Weight: 44.1lbs (20kg)

  • Wind Survivability: 125 mph
