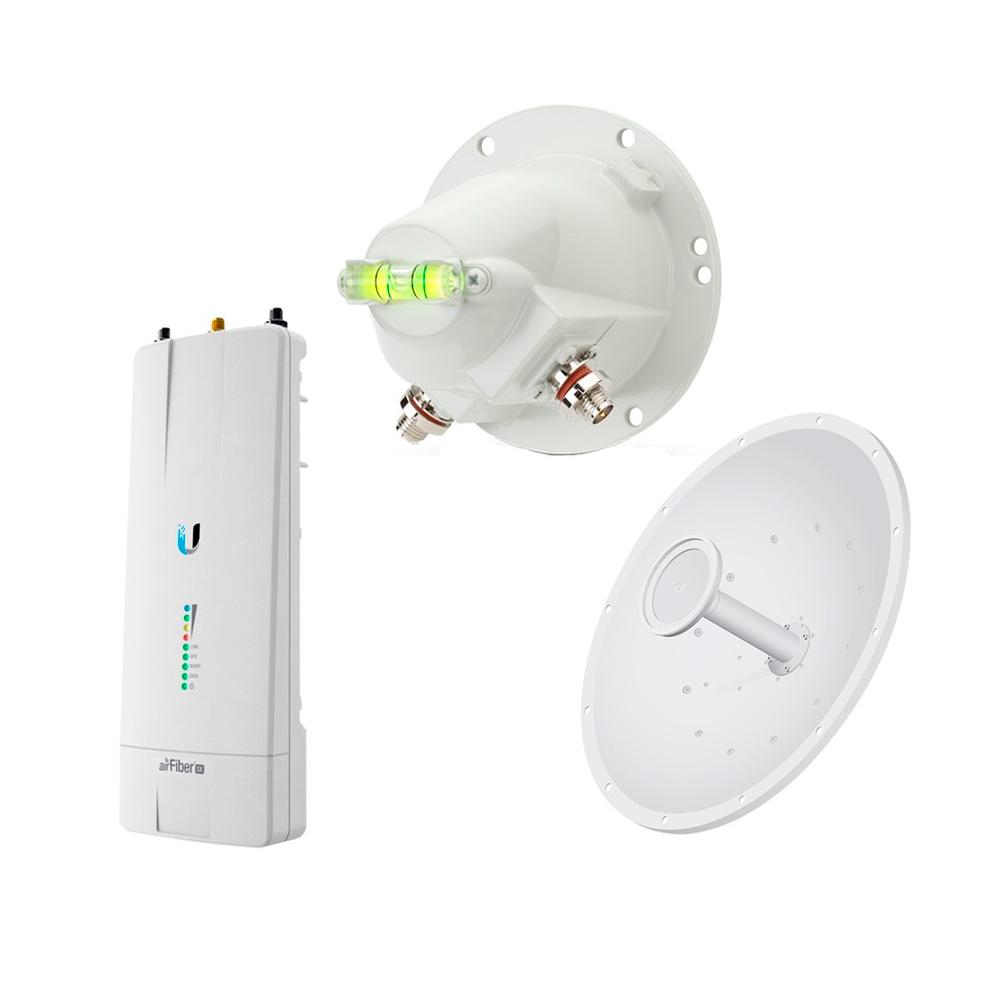

Ubiquiti airFiber 5X AF-5X + AF-5G-OMT-S45 Slant Dish + RocketDish RD-5G30 30dBi

AF-5XBD01

Ubiquiti
Ubiquiti airFiber 5X AF-5X 5GHz Point-to-Point PtP+ AF-5G-OMT-S45 Slant Dish + RocketDish RD-5G30 30dBi 2x2 MIMO Dual Polarity


Product Highlights
  • Ubiquiti airFiber 5X AF-5X US (QNTY:1) 5 GHz Carrier Backhaul Radio Wireless 500 Mbps
  • The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket link that uses a RocketDish RD-5G30 antenna.
  • Ubiquiti Networks Rocket Dish Antenna RD-5G30 (QNTY:1) 5GHz airMAX 2x2 PtP Bridge Dish Antenna 30dBi
  • Pair the RocketDish with a Rocket M BaseStation for Point-to-Point (PtP) bridging and network backhauls.
  • Antenna Conversion Kit AF-5G-OMT-S45 (QNTY:1) used to upgrade the RD-5G30 and the RD-5G34 in order to utilize the power of the AF-5X airFiber 5X radio backhaul.
  • Model#: AF-5XBD01

    Sku: IT1475.3333.491617



    MSRP: $599.00

    Out of stock

    Your Price: $589.00


    Model: AF-5X US

    The airFiber AF-5X 5 GHz Carrier Backhaul Radio from Ubiquiti is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 5X also allows users to customize backhaul links or upgrade existing PtP links.

    Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti antennas. Building upon the proven design of the airFiber system, the airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point-to-Point (PtP) links.

    +

    Model: RD-5G30

    The RD-5G30 RocketDish AirMax 2x2 PtP Bridge Dish Antenna from Ubiquiti Networks features a gain of 30 dBi that helps create a Point-to-Point (PtP) bridge for networking applications when paired with an optional Rocket M BaseStation. It delivers dual-polarity performance and operates in the 5 GHz frequency, which works well for long-distance links. Furthermore, it comes with a shroud, Rocket mount, and pole-mounting support.

    • Robust mechanical design for outdoor application use
    • Plug-and-Play: Built-in Rocket mount so no tools are needed to install the Rocket BaseStation



    +

    Model: AF-5G-OMT-S45

    The RocketDish to airFiber Antenna Conversion Kit converts the RocketDish RD-5G30 or RD-5G34 antenna to 45° slant polarity for use with the AF-5X or AF-4X. The 5 GHz RocketDish to airFiber Antenna Conversion Kit, model AF-5G-OMT-S45, convertsthe RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.

    • Compatible with RD-5G30 & RD-5G34 Antenna







    Model: AF-5X US

    • Range: up to 124 mi (200 km)
    • Up to 500+ Mbps Real Throughput
    • Full Band Certification including DFS
    • Operates using the 5 GHz Band
    • Hybrid Division Duplexing (HDD)
    • Low Latency
    • Enhanced Spectral Efficiency
    • Operation in Unlicensed Bands
    • Co-Location
    • GPS Sync & Clean Power Output

    Model: RD-5G30

    • 5 GHz Operating Frequency
    • 30 dBi Gain
    • Built-In Rocket Mount
    • Protective Shroud
    • For Outdoor Use
    • Compatible with Rocket M BaseStation

    Model: AF-5G-OMT-S45

    • Package Weight 0.245 lb
    • Box Dimensions (LxWxH) 2.95 x 2.95 x 2.75"
