PBE-M5-300-ISOX4

Ubiquiti

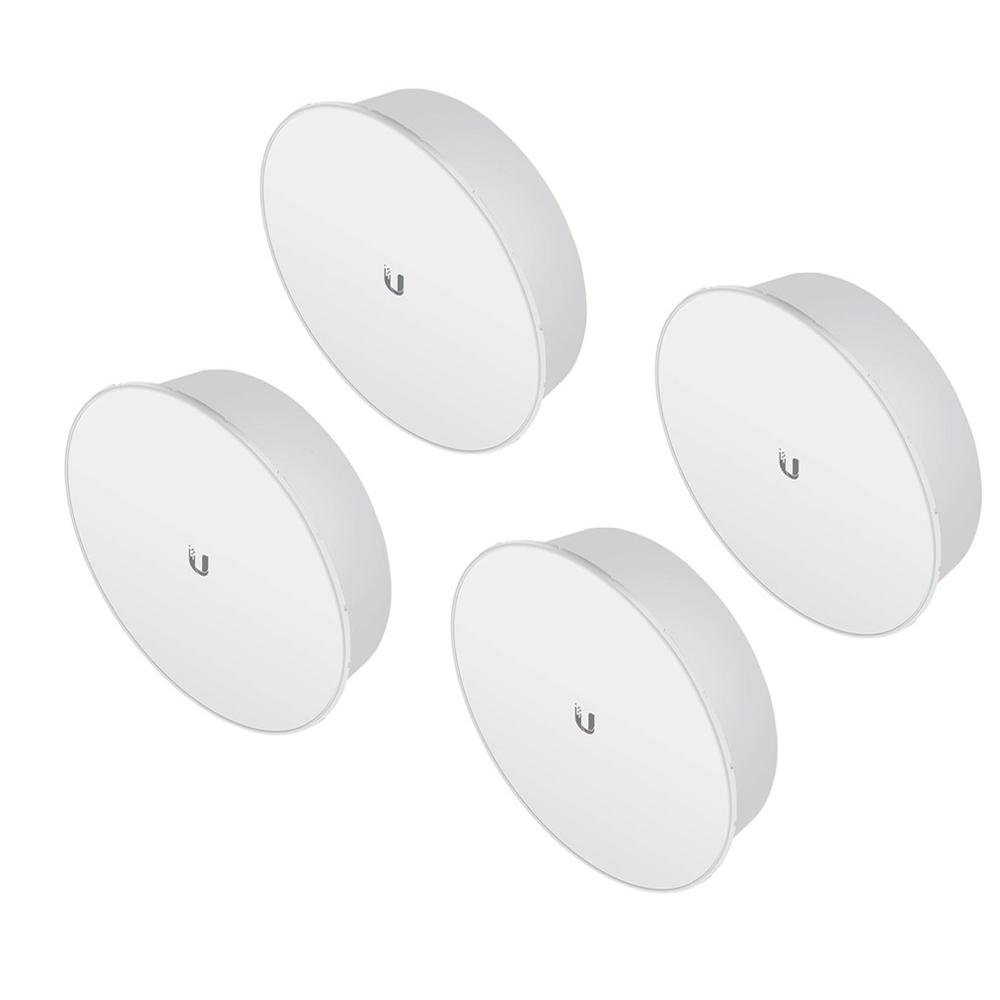

Ubiquiti PBE-M5-300-ISO 4-PACK 5GHz PowerBeam M5 300mm ISO RF Isolated Reflector


Model#: PBE-M5-300-ISOX4

Sku: IT1467

Out of stock

Your Price: N/A


PBE-M5-300-ISO (4 UNITS)

The PBE-M5-300-ISO-US PowerBeam M5 ISO 5 GHz airMAX Bridge with RF Isolated Reflector from Ubiquiti Networks into a variety of network configurations including point-to-multipoint, wireless client, or point-to-point and take advantage of enhanced beamwidth technology. Combined with RF isolation to filter out noise, it delivers a cleaner and more reliable connection. Ubiquiti Networks launches the PowerBeam ISO, an airMAX Bridge that is ideal for deployments requiring maximum performance and RF isolation.

Improved Noise Immunity

The PowerBeam ISO directs RF energy in a tighter beamwidth, and its integrated isolator design improves RF isolation to spatially filter out interference. With its combination of focused beam directivity and RF isolation, the PowerBeam ISO blocks noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Radio Design

Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing high performance and innovative mechanical design at a low cost, the PowerBeam ISO is extremely versatile and cost-effective to deploy.

airMAX Technology

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.

Intelligent QoS

Priority assigned to voice/video for seamless streaming.

Scalability

High capacity and scalability.

Long Distance

Capable of high-speed, carrier-class links.

PBE-M5-300-ISO (4 UNITS)

  • 5 GHz Frequency
  • 22 dBi Gain
  • 300 mm Dish Reflector
  • Atheros MIPS 74Kc, 560 MHz
  • 64 MB DDR2, 8 MB Flash
  • (1) 10/100 Ethernet Port
  • 5725-5850 MHz Operating Frequency
  • Dual Linear Polarization
  • Pole Mounting Kit Included
  • 20-26VDC Voltage Range
  • 6W Mx Power
  • 200 km/h (125 mph) Wind Survivability
  • 364 x 364 x 276 mm (14.33 x 14.33 x 10.87")
