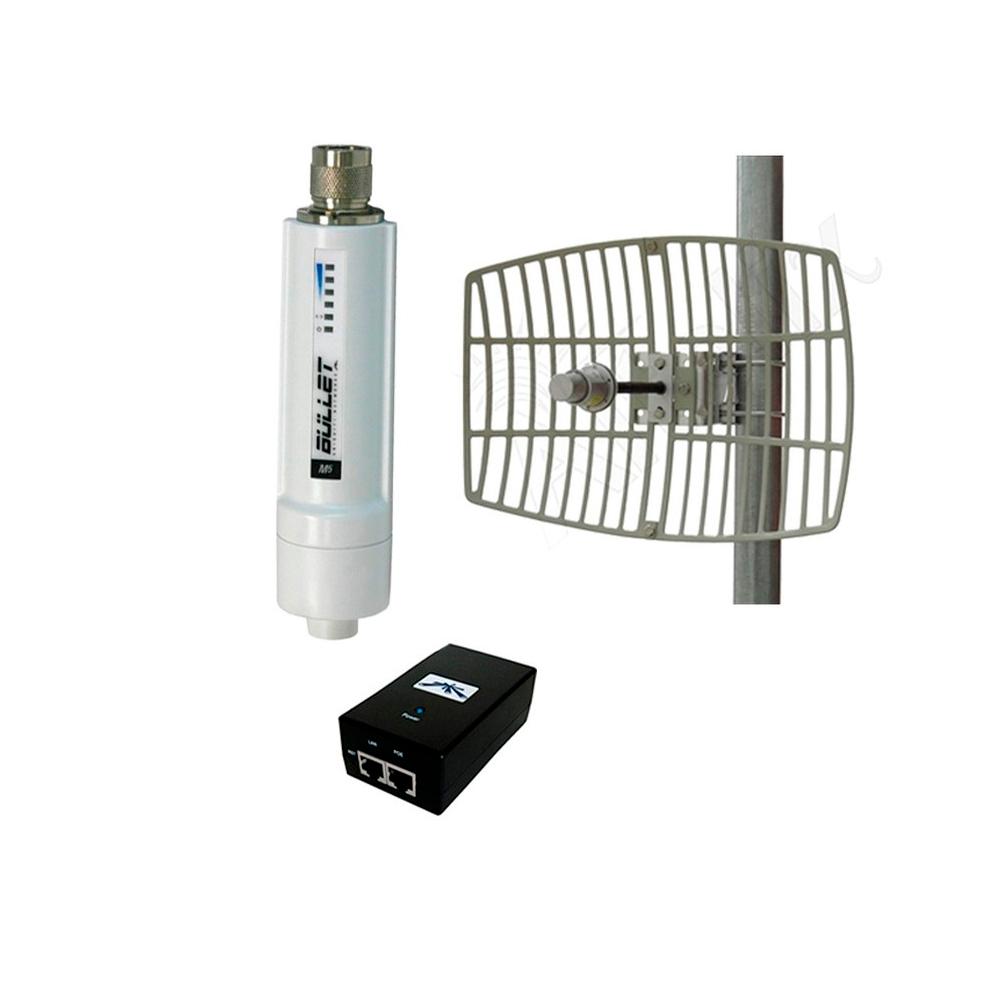

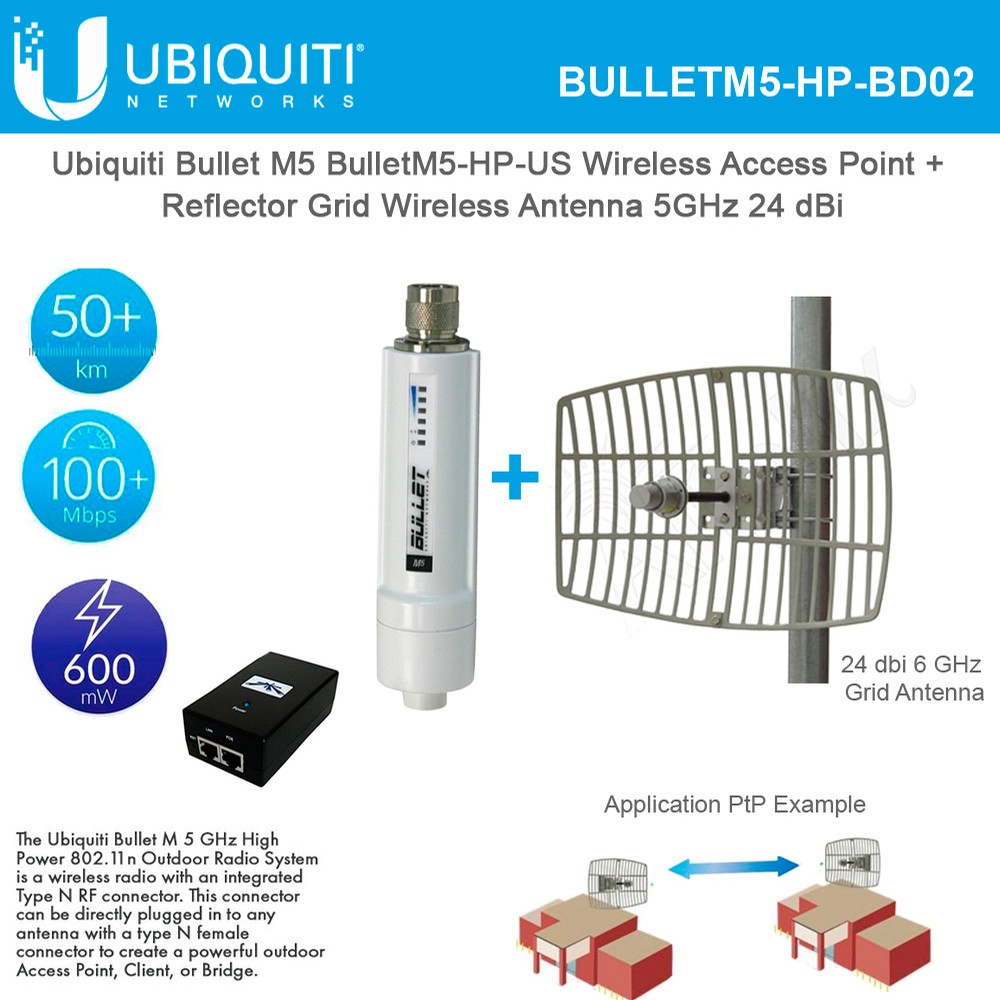

Ubiquiti Bullet M5 BulletM5-HP Wireless Access Point with Reflector Grid Wireless Antenna 5GHz 24 dBi

Model#: BULLETM5-HP-BD02

Sku: IT1445

MSRP: $159.00

Out of stock

Model: BulletM5-HP

                                                Bullet M

                                       Zero-Variable Outdoor airMAX Radio


  • Carrier-Class Throughput

The Bullet M delivers up to 100+ Mbps real TCP/IP throughput.

  • Durability to Last Outdoors

The robust, weatherproof case withstands harsh outdoor conditions.

  • Powerful Performance

The Bullet M features up to 600 mW of power and an enhanced receiver design for PtP or PtMP deployment.

  • Long-Range Links

The Bullet M provides high performance at a range of up to 50+ km, depending on its antenna.

  • Plug and Play Integration

Connect the Bullet M to any existing antenna with an N-type female connector to create an airMAX® basestation.



Model: AG5158G23-NF

The AG5158G23-NF 24 dBi High-Performance Reflector Grid Wi-Fi Antenna is ideal for long-range highly directional 5.8 GHz 802.11a/n applications. These antennas are ideal for point to point systems, point to multi-point and wireless bridges. Its compact design makes it nearly invisible in most installations, and it can be installed for either vertical or horizontal polarization.

The antennas' construction features a die cast aluminum reflector grid for superior strength and light weight. T

This antenna is supplied with a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. They can be adjusted up or down from 0° to 60°.

Model: BulletM5-HP

  • 5 GHz
  • 100Mbps+ of REAL TCP/IP Throughput over outdoor multi-km links
  • No radio card / host board issues
  • No RF cable quality concerns
  • No mechanical stability concerns
  • No enclosure mounting requirements
  • Just Plug and Go.
  • Processor Specs: Atheros SOC, MIPS 24 KC, 400MHz
  • Memory Information: 32MB SDRAM, 8MB Flash
  • Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
  • Approvals: FCC Part 15.247, IC RS210, CE
  • RoHS Compliance: YES


Model: AG5158G23-NF

  • All weather operation
  • Superior performance
  • Cast aluminum construction
  • UV stable light gray powder coat finish
  • 5.8GHz UNII applications
  • 5.8GHz ISM applications
  • 5.8GHz Wireless LAN systems
  • Long-range Directional Applications
  • Point to Point, Point to Multi-point System
