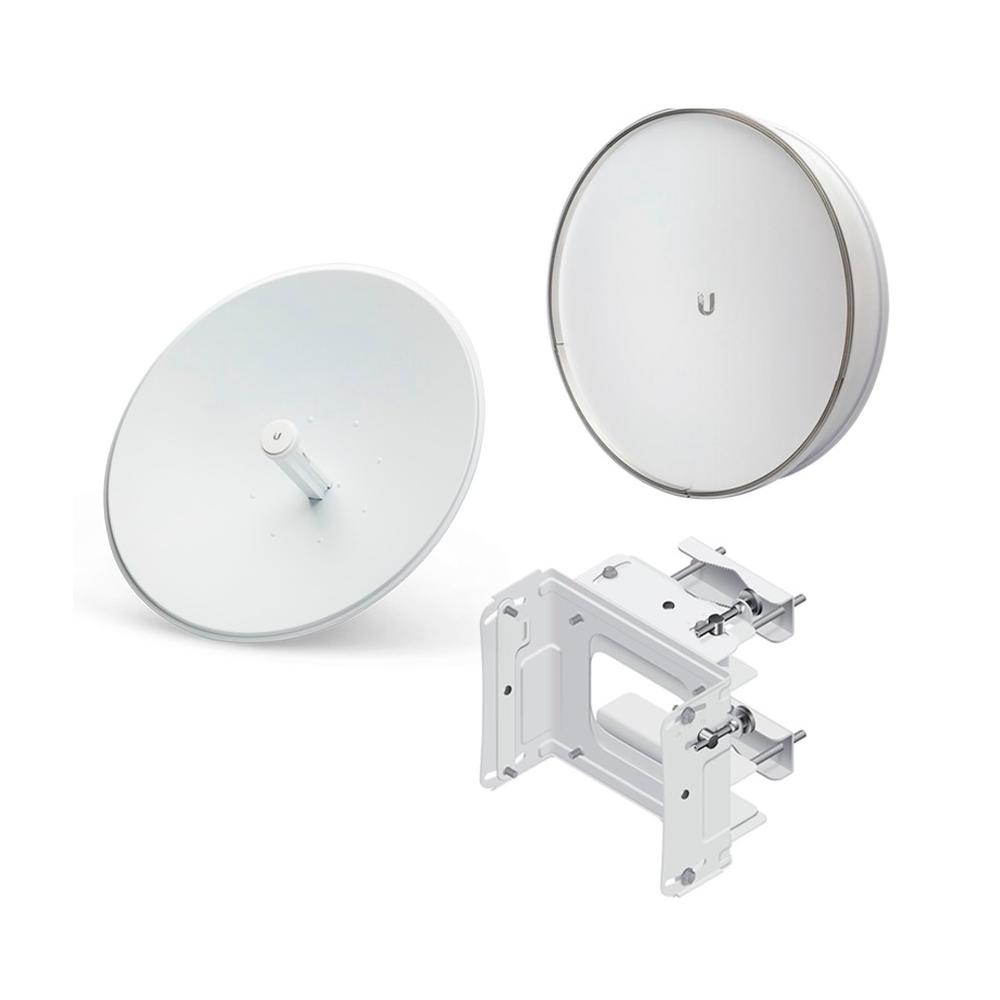

Ubiquiti PowerBeam AC PBE-5AC-620 + Ubiquiti PAK-620 + Ubiquiti ISO-BEAM-620

PBE-5AC-620 Bundle 8

Ubiquiti
Ubiquiti PowerBeam AC PBE-5AC-620 + Ubiquiti PAK-620 + Ubiquiti ISO-BEAM-620

Model#: PBE-5AC-620 Bundle 8

Sku: IT1442.3087.445145



MSRP: $429.99

Out of stock

Your Price: $339.95


Model: PBE-5AC-620-US

                                     PowerBeam AC

                                      High-Performance airMAX ac Bridge

The PBE-5AC-620-US PowerBeam ac High-Performance airMAX Bridge from Ubiquiti Networks is suitable for CPE deployments requiring maximum performance. A dish reflector design with proprietary airMAX ac technology, offers improved latency, noise immunity, scalability, and significantly increased throughput performance of up to 150+ Mb/s and also offers wide range of 25+ km.

 It supports airMAX ac protocol and has a long-range Point-to-Point (PtP) link mode. This offers selectable channel width of 10/20/30/40/50/60/80 MHz in PtP and 10/20/30/40 MHz in PtMP. Integrated airMAX ac technology boosts the advantages of proprietary TDMA protocol. The mounting bracket of the PowerBeam offers 20° of uptilt and 10° of downtilt, while the mounting bracket offers ± 15° of tilt.



  • Integrated Radio Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

  • Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

  • Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

  • Incredible Antenna “Beam” Performance

The form factor of the PowerBeam™ ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.

  • Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks

Model: PAK-620

The Precision Alignment Kit enables extremely accurate aiming to optimize airFiber and airMAX Point-to-Point (PtP) links.



  • Optimal Link Deployment

Precision two-axis alignment enhances beam directivity for maximum PtP or backhaul performance.

Key Features:

  • Plug and play compatibility
  • Optimal link deployment



  • Plug and play compatibility:

Use the Precision Alignment Kit with any of these dish antennas: airFiber AF-5G30-S45, PowerBeam PBE-5AC-620, PowerBeam PBE-M5-620, and RocketDish RD-5G30-LW.



  • Optimal link deployment:

Precision two-axis alignment enhances beam directivity for maximum PtP or backhaul performance.

Model: ISO-BEAM-620

                                             IsoBeam

                     Isolator Radome 620 mm Dish Reflector

                       The IsoBeam provides breakthrough isolation performance for co-location deployments of Point-to-Point (PtP) links and backhauls.



  • Seamless Integrated Design

Improved wind load performance and advanced RF energy isolation in a sleek integrated design.



  • Breakthrough Isolation Performance

The innovative RF-choke perimeter delivers superior noise immunity in co-location deployments.

(Use the IsoBeam with any of these dish antennas: airFiber AF-5G30-S45, PowerBeam PBE-5AC-620, PowerBeam PBE-M5-620 and RocketDish RD-5G30-LW).

Model: PBE-5AC-620-US

Product Features
• Processor: Atheros MIPS 74Kc 720MHz
• Memory: 128MB DDR2, 8MB Flash
• Channel Size: PtP Mode 10/20/30/40/50/60/80MHz PtMP Mode 10/20/30/40 Mhz
• Protocol: 802.11AC
• Polarization: Dual Linear
• Gain: 29dBi
• Operating Frequency: 5150-5250 MHz*, 5250-5350 Mhz*, 5470-5725 Mhz*, 5725-5850 Mhz* ( *Some frequencies may require activation; visit:  )
• Power Supply: 24V, 0.5A Gigabit PoE
• Max. power consumption: 8.5W
• Wind survivability: 200km/h (125mph)
• Polarization: Dual linear
• ESD/EMP protection: Air: ± 24 kV, Contact: ± 24 kV
• Operating temperature: -40 to 70° C (-40 to 158° F)
• Operating humidity: 5 to 95% Non-Condensing


Model: PAK-620

Packaging Info

  • Package Weight 11.85 lb
  • Box Dimensions (LxWxH) 12.4 x 11.7 x 9.1"



Model: ISO-BEAM-620

  • Plug and Play Integration

  • Use the IsoBeam with any of these dish antennas: airFiber® AF-5G30-S45, PowerBeam™ PBE-5AC-620, PowerBeam PBE-M5-620, and RocketDish™ RD-5G30-LW. Installation is quick and easy – requiring just a single screw.
